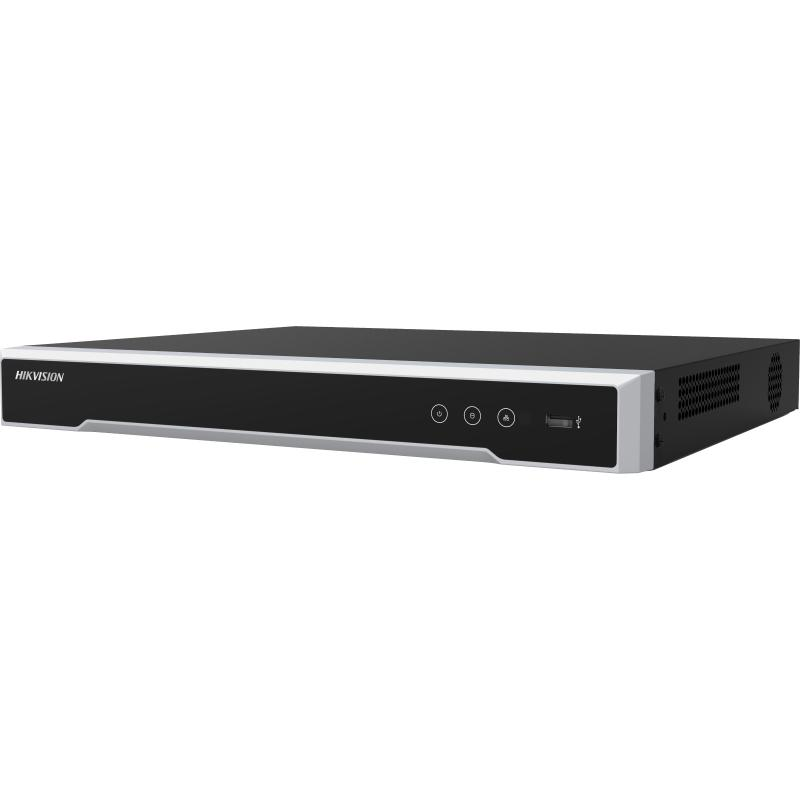

8-ch 1U 8 PoE 8K NVR

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 8-ch IP camera inputs
  • Up to 8-ch@8 MP decoding capacity
  • Up to 128 Mbps incoming bandwidth
  • Up to 8-ch IP speakers can be connected

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-7608NI-M2/8P
DS-7608NI-M2/8P
Data Sheet

Spezifikation

  • Video and Audio
  • IP Video Input 8-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  • Incoming Bandwidth 128 Mbps
  • Outgoing Bandwidth 256 Mbps
  • HDMI Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
  • VGA Output 1920 × 1080/60Hz
  • Video Output Mode HDMI/VGA independent output
  • CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio-Ausgang 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Dekodierung
  • Dual-Stream Recording Support
  • Dekodierungsformat H.265+/H.265/H.264+/H.264
  • Dekodier-Leistung 2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
  • Synchronous Playback 8-ch
  • Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
  • Stream-Typ Video, Video & Audio
  • Audio-Komprimierung G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
  • Netzwerk
  • Fernverbindung 128
  • Netzwerk-Protokoll TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
  • Netzwerk-Schnittstelle 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Camera Access Protocol ONVIF(Version 2.5), RTSP
  • PoE
  • Schnittstelle 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power ≤ 120 W
  • Standard IEEE 802.3 af/at
  • Auxiliary Interface
  • SATA 2 SATA interfaces
  • Kapazität Up to 16 TB capacity for each disk
  • Alarm Eingang/Ausgang 4/1
  • USB-Schnittstelle Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • Allgemein
  • Spannungsversorgung 100 to 240 VAC, 50 to 60 Hz
  • Verbrauch ≤ 15 W (without HDD and PoE off)
  • Betriebstemperatur -10 °C to 55 °C (14 °F to 131 °F)
  • Luftfeuchtigkeit 10% to 90%
  • Abmessungen (BxTxH) 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
  • ≤ 3 kg (without HDD, 2.2 lb.)
  • Zertifizierung
  • FCC Part 15 Subpart B, ANSI C63.4-2014
  • CE EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Spezifikation

Video and Audio
IP Video Input
8-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth
128 Mbps
Outgoing Bandwidth
256 Mbps
HDMI Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
VGA Output
1920 × 1080/60Hz
Video Output Mode
HDMI/VGA independent output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio-Ausgang
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Dekodierung
Dual-Stream Recording
Support
Dekodierungsformat
H.265+/H.265/H.264+/H.264
Dekodier-Leistung
2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Synchronous Playback
8-ch
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Stream-Typ
Video, Video & Audio
Audio-Komprimierung
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Netzwerk
Fernverbindung
128
Netzwerk-Protokoll
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Netzwerk-Schnittstelle
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol
ONVIF(Version 2.5), RTSP
PoE
Schnittstelle
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 120 W
Standard
IEEE 802.3 af/at
Auxiliary Interface
SATA
2 SATA interfaces
Kapazität
Up to 16 TB capacity for each disk
Alarm Eingang/Ausgang
4/1
USB-Schnittstelle
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Allgemein
Spannungsversorgung
100 to 240 VAC, 50 to 60 Hz
Verbrauch
≤ 15 W (without HDD and PoE off)
Betriebstemperatur
-10 °C to 55 °C (14 °F to 131 °F)
Luftfeuchtigkeit
10% to 90%
Abmessungen (BxTxH)
385 × 315× 52 mm (15.2" × 12.4" × 2.0")
≤ 3 kg (without HDD, 2.2 lb.)
Zertifizierung
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.04.020_241106
K21B1_K22B1_V5.04.020_build241106_ReleaseNotes
