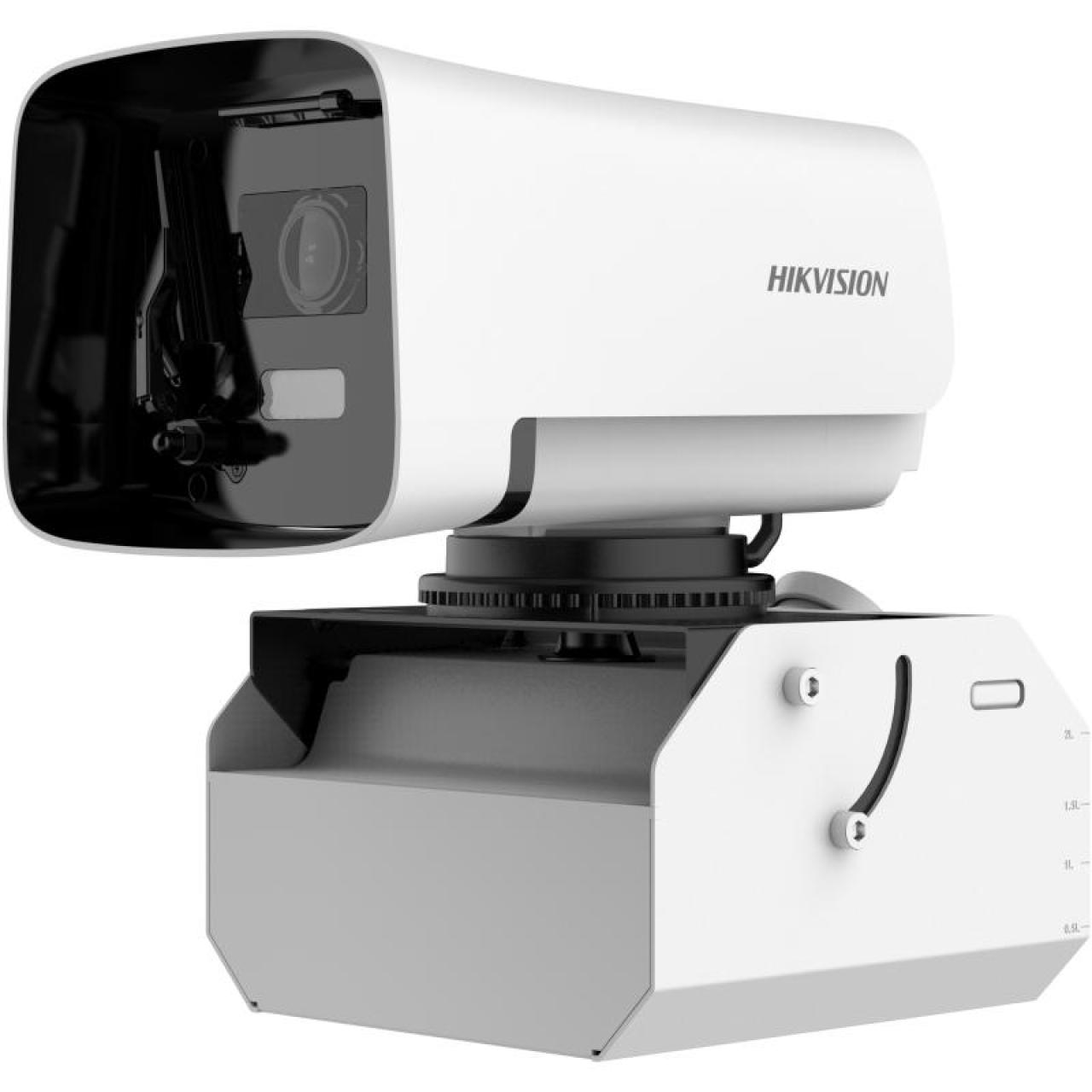

4MP DeepinView Self-Cleaning Bullet Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via Darkfighter technology
Efficient H.265+ compression technology to save bandwidth and storage
Two years maintenance-free with the built-in 2 L large-capacity water box for cleaning the camera window once a week after filling the water box
Ring-type sunshield to block the stray light incident from outside the range of lens field of view and reduce dust adhesion
Built-in heater to ensure clear image under rainy or snowy weather and enhance the lens window glass decontamination ability
Water and dust resistant (IP67) and anti-corrosion protection (NEMA 4X)
White and IR supplement light

View Less

Data Sheet

Available models:

iDS-2CD8A46G0/SC-XZY(2.8-12mm)

iDS-2CD8A46G0/SC-XZY(8-32mm)

iDS-2CD8A46G0/SC-XZY

Spezifikation
Resources
Zubehör

Data Sheet

Kamera
Bildsensor1/1.8" Progressive Scan CMOS
Max. Auflösung2560 × 1440
Min. Beleuchtung2.8 to 12 mm: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with light; 8 to 32 mm: Color: 0.002 Lux @ (F1.7, AGC ON), 0 Lux with light
Verschlusszeit1 s to 1/100,000 s
Tag & Nacht Blue glass module (less ghost phenomenon)

Objektiv
Focal Length & FOV2.8 to 12 mm, horizontal FOV 89.1° to 36.3°, vertical FOV 48.3° to 20.7°, diagonal FOV 106.1° to 41.9°; 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°;
FokusAuto,Semi-auto,Manual
Iris TypeDC iris
Blende2.8 to 12 mm: F1.47; 8 to 32 mm: F1.7

Strahler
ZusatzbeleuchtungIR,White Light
Reichweite ZusatzbeleuchtungIR: 2.8 to 12 mm: Monitoring: 60 m; 8 to 32 mm: Monitoring: 100 m; White Light: 2.8 to 12 mm: Monitoring: 40 m; 8 to 32 mm: Monitoring: 60 m
Intelligente ZusatzbeleuchtungYes
IR Wavelength850 nm

Video
Hauptstrom50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
3. Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
4. Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
5. Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Videokompression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
Audiokomprimierung32 Kbps to 8 Mbps
H.264 TypBaseline Profile,Main Profile,High Profile
H.265 TypMain Profile
BitratensteuerungCBR,VBR
Skalierbare Videocodierung (SVC)H.264 and H.265 encoding
Target CroppingYes
Region of Interest (ROI)4 fixed regions for each stream

Netzwerk
ProtokolleTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
Gleichzeitige Live-AnsichtUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Benutzer / HostUp to 32 users 3 user levels: administrator, operator, and user
SicherheitPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Netzwerk-SpeicherungNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect
Webbrowser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Bildparameter wechselnYes
Image SettingsSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Tag & Nacht-UmschaltungDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)140 dB
BildverbesserungBLC,HLC,3D DNR,Distortion Correction,Defog
Privatzone8 programmable polygon privacy masks
BildüberlagerungLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image StabilizationEIS

Schnittstelle
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 input, 2 output (max. 24 VDC/24 VAC, 1 A)
Reset KeyYes
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Leistungsabgabe12 VDC, max. 100 mA

Ereignis
Normales Ereignis Motion detection,video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error)
Intelligentes Ereignisscene change detection,audio exception detection,defocus detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function
Erkennung mit mehreren Zieltypen Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features
GesichtserfassungDetects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
MetadatenIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
Straßenverkehr und Fahrzeugerkennung Blocklist and allowlist: up to 10,000 records Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.) License plate recognition rate ≥98%
Tunnel Event DetectionFallen object detection, pedestrian detection, parking detection, congestion detection, construction detection

Allgemein
Power12 VDC ± 20%, 1.55 A, max. 18.6 W,three-core terminal block, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.39 A, max. 22.5 W
MaterialAluminum and plastic
Abmessung337.3 mm × 193.2 mm × 261.5 mm (13.28" × 7.61" × 10.29")
Paketgröße350 mm × 270 mm × 355 mm (13.78" × 10.63" × 13.98")
Approx. 3080 g (6.80 lb.)
Mit PaketgewichtApprox. 4780 g (10.54 lb.)
Lagerbedingungen-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Anlauf- und Betriebsbedingungen-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sprache33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Allgemeine FunktionHeartbeat,anti-banding,one-key reset,mirror,password protection
FreimachenYes

Genehmigung
EMV CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Sicherheit CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
UmgebungCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
SchutzIP67: IEC 60529-2013
Korrosionsschutz-Y: NEMA 4X (NEMA 250-2018)
AnderePVC FREE
