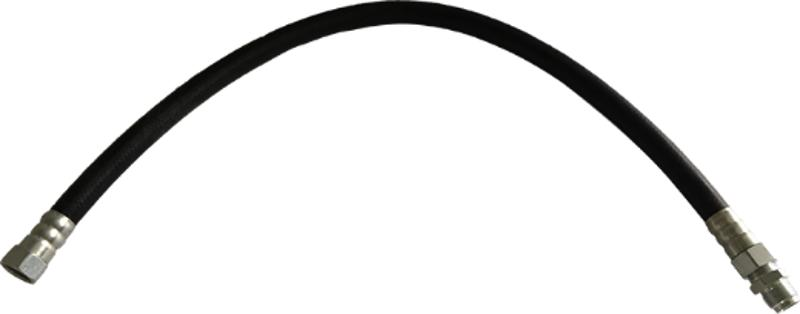

Explosion Proof Flexible Conduit

The main materials are braided line, carbon steel, and NBR.Connector is made by Carbon Steel.
Suitable for cable protection in explosion-proof scenarios.
II 2 G II 2 D Ex eb IIC Gb Ex tb IIIC Db

View Less

Available models:

DS-2XE2601-5(CS)

Allgemein
AbmessungØ25 mm × 5000 mm . Thread Specification: G-3/4 Female and Male threads on two Sides
Approx 4kg
Anlauf- und Betriebsbedingungen -40 °C to 60 °C . Humidity 95% or less (non-condensing)

Genehmigung
Schutz IP68(2m/2h)
Explosion-proof signIECEx DNV 24.0038U Ex eb IIC Gb Ex tb IIIC Db DNV 24 ATEX 82754U II 2 G Ex eb IIC Gb II 2 D Ex tb IIIC Db

Allgemein

Abmessung

Ø25 mm × 5000 mm . Thread Specification: G-3/4 Female and Male threads on two Sides

Approx 4kg

Anlauf- und Betriebsbedingungen

-40 °C to 60 °C . Humidity 95% or less (non-condensing)

Genehmigung

Schutz

IP68(2m/2h)

Explosion-proof sign

IECEx DNV 24.0038U Ex eb IIC Gb Ex tb IIIC Db DNV 24 ATEX 82754U II 2 G Ex eb IIC Gb II 2 D Ex tb IIIC Db
