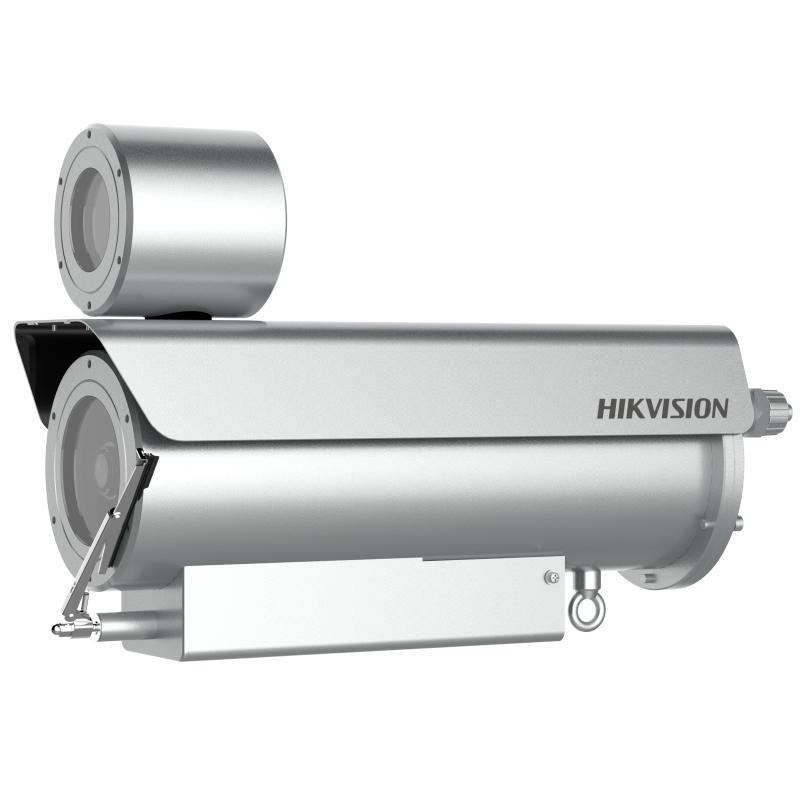

EXIR Motorized Varifocal Bullet Explosion-Proof Network Camera

Explosion-proof design: the camera has passed international ATEX & IECEx certifications, and can be used in gas and dust hazardous scenarios
316L stainless steel enclosure and anti-corrosion spray treatment, protecting the camera from damage caused by sparks or corrosive materials
IP68 water resistant, preventing water ingress for outdoor use
H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
AC 100 V to 240 V wide range power supply: easy to deploy cables and safer compared to a power adapter solution

View Less

Data Sheet

Available models:

DS-2XE6482F-IZHRS(2.8-12mm)(D)

DS-2XE6482F-IZHRS(8-32mm)(D)

DS-2XE6482F-IZHRS(D)

Spezifikation
Resources
Zubehör

Data Sheet

Kamera
Bildsensor1/2" Progressive Scan CMOS
Max. Auflösung3840 × 2160
Min. BeleuchtungColor: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Verschlusszeit1/3 s to 1/100,000 s
Tag & NachtIR cut filter

Objektiv
FokusAuto,Semi-auto,Manual
ObjektivtypVarifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Focal Length & FOV2.8 to 12 mm, horizontal FOV 94.8° to 38.2°, vertical FOV 50° to 21.4°, diagonal FOV 113° to 43.9° 8 to 32 mm, horizontal FOV 41.8° to 14.9°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°
Iris TypeAuto-iris
Blende2.8 to 12 mm: F1.4 8 to 32 mm: F1.7

DORI
DORI2.8 to 12 mm: D: 6.4 to 220 m, O: 25.4 to 87.3 m, R: 12.8 to 44 m, I: 6.4 to 22 m 8 to 32 mm: D: 218 to 580 m, O: 86.5 to 230 m, R: 43.6 to 116 m, I: 21.8 to 58 m

Strahler
ZusatzbeleuchtungIR
Reichweite Zusatzbeleuchtung2.8 to 12 mm: up to 80 m 8 to 32 mm: up to 150 m
Intelligente ZusatzbeleuchtungYes
IR WavelengthUp to 850 nm

Video
Hauptstrom50 Hz: 20 fps (3840 × 2160, 3072 × 1728) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160, 3072 × 1728) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
3. Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Videokompression Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Audiokomprimierung32 Kbps to 8 Mbps
H.264 TypBaseLine Profile,Main Profile,High Profile
H.265 TypMain Profile
BitratensteuerungCBR,VBR
Skalierbare Videocodierung (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Target CroppingYes

Audio
UmgebungsgeräuschfilterungYes
Audio-Abtastrate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audiokomprimierung G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
AudiotypMono sound

Netzwerk
Gleichzeitige Live-AnsichtUp to 6 channels
APIOpen Network Video Interface, ISAPI, SDK, ISUP
ProtokolleTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
Benutzer / HostUp to 32 users. 3 levels: administrator, operator and user
Netzwerk-SpeicherungNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
WebbrowserPlug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge

Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
Wide Dynamic Range (WDR)120 dB
BildüberlagerungLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Tag & Nacht-UmschaltungDay,Night,Auto,Schedule
BildverbesserungBLC,HLC,3D DNR,Defog
Bildparameter wechselnYes
SNR≥ 50 dB
Privatzone8 programmable polygon privacy masks

Schnittstelle
Video-Ausgang1 Vp-p Composite Output (75 Ω/BNC)
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Audio1 input (line in), 1 output (line out)
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A or 110 VAC, 500 mA)

Ereignis
Normales Ereignis Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Intelligentes EreignisLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)) Scene change detection, audio exception detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Allgemein
Power100 VAC to 240 VAC, 0.38 A to 0.18 A, max. 22.6 W, three-core terminal block PoE: IEEE 802.3at, 42.5 V to 57 V, 0.56 A to 0.42 A, max. 23.6 W
Material316L + Anti-corrosion coating
Abmessung513.2 mm × 169 mm × 308 mm (20.2" × 6.65" × 12.13")
Paketgröße753 mm × 313 mm × 424 mm (29.65" × 12.32" × 16.69")
Appox. 17.42 kg (38.40 lb.)
Mit PaketgewichtAppox. 19.80 kg (43.65 lb.)
Lagerbedingungen-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Anlauf- und Betriebsbedingungen-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Sprache33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
HeizungYes
WischerYes
Kabellänge1.1 m (3.61 ft.)
Allgemeine FunktionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Genehmigung
EMVFCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B) CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013) IC: IC-VoC (ICES-003 Issue 7: 2020) KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
SicherheitCB: IEC 60950-1 CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013) LOA: SANS IEC60950-1
UmgebungCE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
SchutzIP68: IEC 60529-2013
ExplosionsschutzATEX: II 2 G Ex db op is IIC T6 Gb/ II 2D Ex tb op is IIIC T80°C Db IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db For explosive gas atmospheres, the maximum surface temperature is 85°C; For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
KorrosionsschutzNEMA 4X (NEMA 250-2018)

Kamera

Bildsensor

1/2" Progressive Scan CMOS

Max. Auflösung

3840 × 2160

Min. Beleuchtung

Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR

Verschlusszeit

1/3 s to 1/100,000 s

Tag & Nacht

IR cut filter

Objektiv

Fokus

Auto,Semi-auto,Manual

Objektivtyp

Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 94.8° to 38.2°, vertical FOV 50° to 21.4°, diagonal FOV 113° to 43.9° 8 to 32 mm, horizontal FOV 41.8° to 14.9°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°

Iris Type

Auto-iris

Blende

2.8 to 12 mm: F1.4 8 to 32 mm: F1.7

DORI

2.8 to 12 mm: D: 6.4 to 220 m, O: 25.4 to 87.3 m, R: 12.8 to 44 m, I: 6.4 to 22 m 8 to 32 mm: D: 218 to 580 m, O: 86.5 to 230 m, R: 43.6 to 116 m, I: 21.8 to 58 m

Strahler

Zusatzbeleuchtung

Reichweite Zusatzbeleuchtung

2.8 to 12 mm: up to 80 m 8 to 32 mm: up to 150 m

Intelligente Zusatzbeleuchtung

Yes

IR Wavelength

Up to 850 nm

Video

Hauptstrom

50 Hz: 20 fps (3840 × 2160, 3072 × 1728) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160, 3072 × 1728) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

3. Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

Videokompression

Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Audiokomprimierung

32 Kbps to 8 Mbps

H.264 Typ

BaseLine Profile,Main Profile,High Profile

H.265 Typ

Main Profile

Bitratensteuerung

CBR,VBR

Skalierbare Videocodierung (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Target Cropping

Yes

Audio

Umgebungsgeräuschfilterung

Yes

Audio-Abtastrate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audiokomprimierung

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bitrate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)

Audiotyp

Mono sound

Netzwerk

Gleichzeitige Live-Ansicht

Up to 6 channels

API

Open Network Video Interface, ISAPI, SDK, ISUP

Protokolle

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS

Benutzer / Host

Up to 32 users. 3 levels: administrator, operator and user

Netzwerk-Speicherung

NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Webbrowser

Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge


Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser

Wide Dynamic Range (WDR)

120 dB

Bildüberlagerung

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Tag & Nacht-Umschaltung

Day,Night,Auto,Schedule

Bildverbesserung

BLC,HLC,3D DNR,Defog

Bildparameter wechseln

Yes

SNR

≥ 50 dB

Privatzone

8 programmable polygon privacy masks

Schnittstelle

Video-Ausgang

1 Vp-p Composite Output (75 Ω/BNC)

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Audio

1 input (line in), 1 output (line out)

Alarm

2 inputs, 2 outputs (max. 24 VDC, 1 A or 110 VAC, 500 mA)

Ereignis

Normales Ereignis

Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Intelligentes Ereignis

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)) Scene change detection, audio exception detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Allgemein

Power

100 VAC to 240 VAC, 0.38 A to 0.18 A, max. 22.6 W, three-core terminal block PoE: IEEE 802.3at, 42.5 V to 57 V, 0.56 A to 0.42 A, max. 23.6 W

Material

316L + Anti-corrosion coating

Abmessung

513.2 mm × 169 mm × 308 mm (20.2" × 6.65" × 12.13")

Paketgröße

753 mm × 313 mm × 424 mm (29.65" × 12.32" × 16.69")

Appox. 17.42 kg (38.40 lb.)

Mit Paketgewicht

Appox. 19.80 kg (43.65 lb.)

Lagerbedingungen

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Anlauf- und Betriebsbedingungen

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Sprache

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Heizung

Yes

Wischer

Yes

Kabellänge

1.1 m (3.61 ft.)

Allgemeine Funktion

Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Genehmigung

EMV

FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B) CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013) IC: IC-VoC (ICES-003 Issue 7: 2020) KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)

Sicherheit

CB: IEC 60950-1 CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013) LOA: SANS IEC60950-1

Umgebung

CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)

Schutz

IP68: IEC 60529-2013

Explosionsschutz

ATEX: II 2 G Ex db op is IIC T6 Gb/ II 2D Ex tb op is IIIC T80°C Db IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db For explosive gas atmospheres, the maximum surface temperature is 85°C; For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.

Korrosionsschutz

NEMA 4X (NEMA 250-2018)

Kamera

Bildsensor1/2" Progressive Scan CMOS
Max. Auflösung3840 × 2160
Min. BeleuchtungColor: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Verschlusszeit1/3 s to 1/100,000 s
Tag & NachtIR cut filter

Objektiv

FokusAuto,Semi-auto,Manual
ObjektivtypVarifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Focal Length & FOV2.8 to 12 mm, horizontal FOV 94.8° to 38.2°, vertical FOV 50° to 21.4°, diagonal FOV 113° to 43.9° 8 to 32 mm, horizontal FOV 41.8° to 14.9°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°
Iris TypeAuto-iris
Blende2.8 to 12 mm: F1.4 8 to 32 mm: F1.7

DORI

DORI2.8 to 12 mm: D: 6.4 to 220 m, O: 25.4 to 87.3 m, R: 12.8 to 44 m, I: 6.4 to 22 m 8 to 32 mm: D: 218 to 580 m, O: 86.5 to 230 m, R: 43.6 to 116 m, I: 21.8 to 58 m

Strahler

ZusatzbeleuchtungIR
Reichweite Zusatzbeleuchtung2.8 to 12 mm: up to 80 m 8 to 32 mm: up to 150 m
Intelligente ZusatzbeleuchtungYes
IR WavelengthUp to 850 nm

Video

Hauptstrom50 Hz: 20 fps (3840 × 2160, 3072 × 1728) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160, 3072 × 1728) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
3. Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Videokompression Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Audiokomprimierung32 Kbps to 8 Mbps
H.264 TypBaseLine Profile,Main Profile,High Profile
H.265 TypMain Profile
BitratensteuerungCBR,VBR
Skalierbare Videocodierung (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Target CroppingYes

Audio

UmgebungsgeräuschfilterungYes
Audio-Abtastrate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audiokomprimierung G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
AudiotypMono sound

Netzwerk

Gleichzeitige Live-AnsichtUp to 6 channels
APIOpen Network Video Interface, ISAPI, SDK, ISUP
ProtokolleTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
Benutzer / HostUp to 32 users. 3 levels: administrator, operator and user
Netzwerk-SpeicherungNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
WebbrowserPlug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge


Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
Wide Dynamic Range (WDR)120 dB
BildüberlagerungLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Tag & Nacht-UmschaltungDay,Night,Auto,Schedule
BildverbesserungBLC,HLC,3D DNR,Defog
Bildparameter wechselnYes
SNR≥ 50 dB
Privatzone8 programmable polygon privacy masks

Schnittstelle

Video-Ausgang1 Vp-p Composite Output (75 Ω/BNC)
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Audio1 input (line in), 1 output (line out)
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A or 110 VAC, 500 mA)

Ereignis

Normales Ereignis Motion detection (support alarm triggered by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Intelligentes EreignisLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)) Scene change detection, audio exception detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Allgemein

Power100 VAC to 240 VAC, 0.38 A to 0.18 A, max. 22.6 W, three-core terminal block PoE: IEEE 802.3at, 42.5 V to 57 V, 0.56 A to 0.42 A, max. 23.6 W
Material316L + Anti-corrosion coating
Abmessung513.2 mm × 169 mm × 308 mm (20.2" × 6.65" × 12.13")
Paketgröße753 mm × 313 mm × 424 mm (29.65" × 12.32" × 16.69")
Appox. 17.42 kg (38.40 lb.)
Mit PaketgewichtAppox. 19.80 kg (43.65 lb.)
Lagerbedingungen-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Anlauf- und Betriebsbedingungen-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Sprache33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
HeizungYes
WischerYes
Kabellänge1.1 m (3.61 ft.)
Allgemeine FunktionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Genehmigung

EMVFCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B) CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013) IC: IC-VoC (ICES-003 Issue 7: 2020) KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
SicherheitCB: IEC 60950-1 CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013) LOA: SANS IEC60950-1
UmgebungCE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
SchutzIP68: IEC 60529-2013
ExplosionsschutzATEX: II 2 G Ex db op is IIC T6 Gb/ II 2D Ex tb op is IIIC T80°C Db IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db For explosive gas atmospheres, the maximum surface temperature is 85°C; For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
KorrosionsschutzNEMA 4X (NEMA 250-2018)
