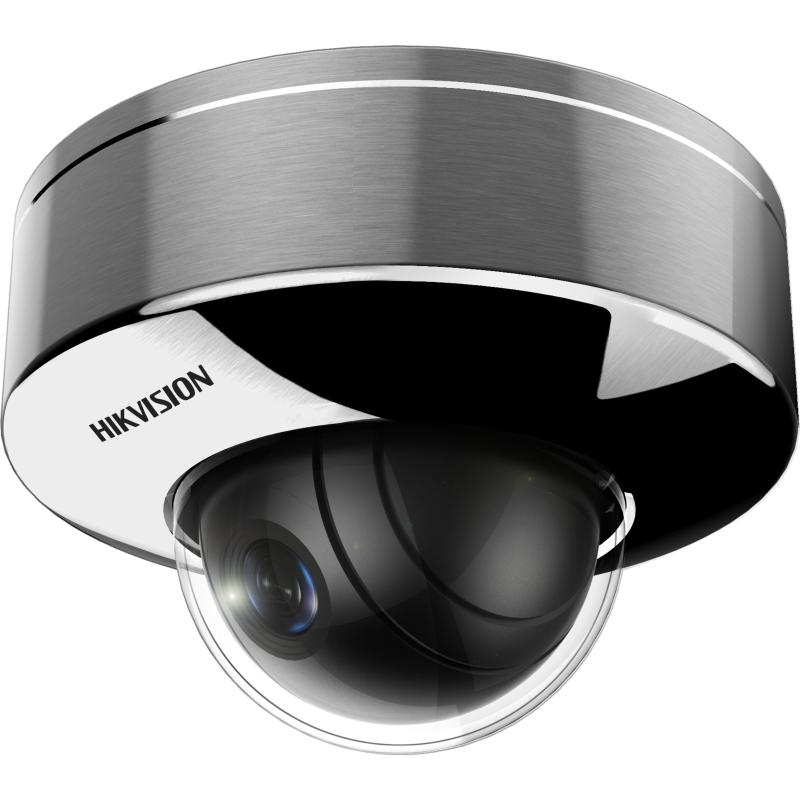

Fixed Dome Explosion-Proof Network Camera

Explosion-proof design: the camera has passed international ATEX & IECEx certifications, and can be used in gas and dust hazardous scenarios
304 stainless steel enclosure, protecting the camera from damage caused by sparks or corrosive materials
IP68 water resistant, preventing water ingress for outdoor use
H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
A built-in heater allows for start-up in ultra-low temperatures to -40 °C
High resolution 4 MP, capturing clear images

View Less

Data Sheet

Available models:

DS-2XE6145G0-HS(2.8mm)

DS-2XE6145G0-HS(4mm)

DS-2XE6145G0-HS(6mm)

DS-2XE6145G0-HS/304

Spezifikation
Resources
Zubehör

Data Sheet

Kamera
Bildsensor1/3" Progressive Scan CMOS
Max. Auflösung2688 × 1520
Min. BeleuchtungColor: 0.003 Lux @ (F1.0, AGC ON)
Verschlusszeit1/3 s to 1/100,000 s
AusrichtungseinstellungPan: 0° to 340°, tilt: 0° to 75°

Objektiv
ObjektivtypFixed focal length, 2.8 mm, 4 mm, and 6 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 102.5°, vertical FOV 53.4°, diagonal FOV 118.9° 4 mm, horizontal FOV 80.2°, vertical FOV 40.8°, diagonal FOV 93.4° 6 mm, horizontal FOV 52.5°, vertical FOV 27.4°, diagonal FOV 60.2°
ObjektivfassungM12
BlendeF1.0

DORI
DORI2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m 4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m 6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m

Video
Hauptstrom50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
3. Stream50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Videokompression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Audiokomprimierung32 Kbps to 8 Mbps
H.264 TypBaseline Profile/Main Profile/High Profile
H.265 TypMain Profile
Skalierbare Videocodierung (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for each stream
Target CroppingYes

Audio
Audiokomprimierung G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Audio Bitrate64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3)
Audio-Abtastrate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
UmgebungsgeräuschfilterungYes

Netzwerk
ProtokolleTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Gleichzeitige Live-AnsichtUp to 6 channels
APIOpen Network Video Interface, ISAPI, ISUP 5.0
Benutzer / HostUp to 32 users 3 levels: administrator, operator and user
Netzwerk-SpeicherungNAS (NFS, SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect
WebbrowserPlug-in required live view: IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+

Bildparameter wechselnYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Tag & Nacht-UmschaltungDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
BildverbesserungBLC, HLC, 3D DNR, defog

Schnittstelle
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Audio1 input (line in), 1 output (line out)
Alarm 1 alarm input, 1 alarm output (supports max. 24 VDC, 1 A or 110 VAC, 500 mA)
RS-4851 RS-485 interface

Ereignis
Normales Ereignis Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Intelligentes EreignisLine crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection, unattended baggage detection, object removal detection

Allgemein
Power12 VDC ± 20%, 0.8 A, max. 10 W, two-core terminal block PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 12.5 W
MaterialSUS 304
AbmessungØ138 mm × 123.4 mm (Ø5.43" × 4.86")
Paketgröße251 mm × 215 mm × 189 mm (9.88" × 8.46" × 7.44")
Approx. 2810 g (6.2 lb.)
Mit PaketgewichtApprox. 4040 g (8.9 lb.)
Anlauf- und Betriebsbedingungen-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Sprache33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Allgemeine FunktionAnti-banding, heartbeat, mirror, privacy mask, password protection, watermark, IP address filter
HeizungYes
Kabellänge1.3 m (4.27 ft.)

Genehmigung
EMVFCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B) CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013) RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015 IC: IC-VoC (ICES-003 Issue 7:2020) KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
SicherheitUL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014 CB: IEC 62368-1:2014 BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015 LOA: SANS IEC60950-1
UmgebungCE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
SchutzIP68 (IEC 60529-2013)
ExplosionsschutzATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68 IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68 For explosive gas atmospheres, the maximum surface temperature is 85°C; For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
