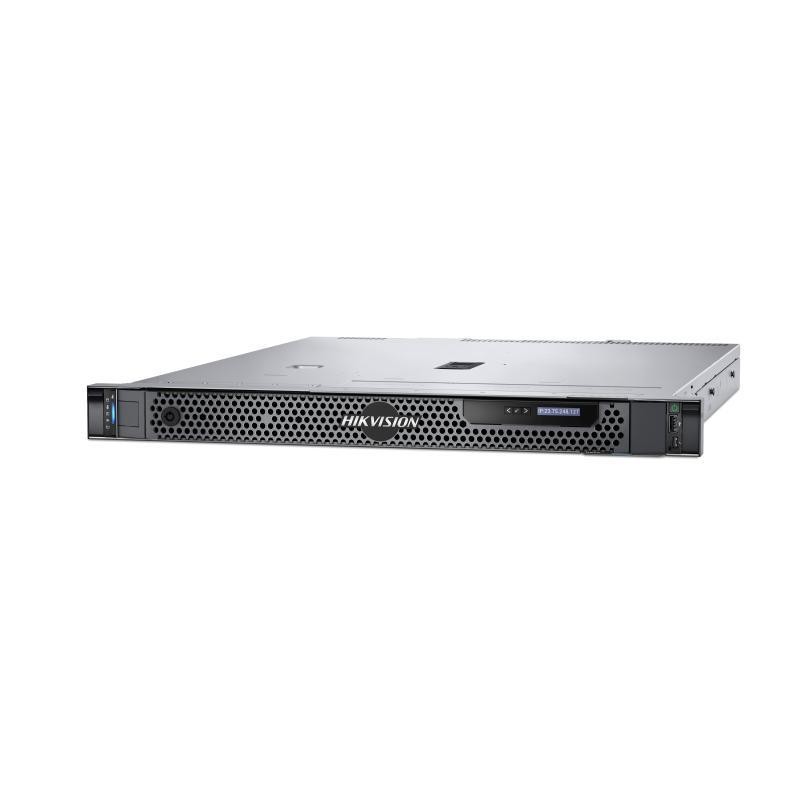

Rackmount VMS Server

  • HikCentral VMS servers combine hardware and software products to give customers a cost-effective and comprehensive solution
  • 1) Plug and play: No additional activation is required, and it is ready to use right out of the box
  • 2) Easy to use: Pre-installed operating system, easy to operate and deploy
  • All-in-one software and hardware, no activation required, easy delivery and reliable service
  • 1) Guaranteed compatibility: Tested by professional testing team to ensure stable operation
  • 2) Reliable after-sales service: 24/7 platinum after-sales service
View Less
View more
Vertriebsanfrage

Verfügbare Modelle:

HikCentral-P-VSS-Base/HW/300Ch(B)
HikCentral-P-VSS-Base/HW/300Ch(B)

Spezifikation

  • Devices and Resources
  • Video Management300ch by default; can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function)
  • Access ControlsNot included; can be expanded into 1024 (Including Doors and Outdoor Station)
  • Indoor StationNot included; can be expanded into 5000
  • ANPR CamerasNot included; can be expanded into 1024ch
  • Lanes of Entrance & ExitNot included, can be expanded into 40
  • Cameras with Face Capture FunctionNot included; can be expanded into 3000ch
  • Alarm PanelNot included; can be expanded into 1024
  • Smart WallsNot included; can be expanded into：Smart Walls：32；Decoding devices：32
  • AttendanceNot included, can be expanded by extra license
  • Hardware Specifications
  • CPUE-2324G×1， 3.1 GHz, 8 MB Cache， 4 Cores, 4 Threads
  • SpeicherStandard Config：1 × 16GB UDIMM，3200MT/s Scalability：4 × 128GB UDIMM
  • Hard DisksStandard Config：2×1TB 3.5 inch SATA HDD Scalability：2×22TB 3.5 inch SATA/SAS HDD
  • Storage ControllerStandard Config：PERC H355 adaptor LP (support RAID 0/1) Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache
  • Supported Operating SystemsWinSvr2019 multilingual version pre-installed
  • PCIe SlotsTwo Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots
  • Management
  • Remote ManageiDrac9 Enterprise
  • OpenManage™ SoftwareSupport OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)
  • Integrations and ConnectionsIntegrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible; Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus
  • SicherheitSupport Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • Anschlüsse
  • USB 3.00（Front）+1（Rear）
  • USB 2.01（Front）+1（Rear）
  • Ethernet Port2 x LAN 10/100/1000
  • VGA1
  • iDRAC Direct (Micro-AB USB) Port1
  • iDRAC Ethernet Port1
  • Manager Port1
  • Allgemein
  • Nettogewicht12.2 kg (26.9 lb)
  • Bruttogewicht18.5 kg (40.79 lb)
  • Abmessung (B × H × T)482.00 mm × 42.8 mm × 598.64 mm (18.97'' × 1.68'' × 23.56'')
  • Verpackungsabmessungen (BxHxT)595.00 mm × 251.00 mm × 923.00 mm (23.43'' × 9.88'' × 36.34'')
  • Betriebstemperatur10 °C to 35 °C (50 °F to 95 °F)
  • Lagertemperatur-40 °C to 65 °C (-40 °F to 149 °F)
  • Luftfeuchtigkeit im Betrieb8% to 80% (no condensation)
  • Lagerfeuchtigkeit5% to 95% (no condensation)
  • Spannungsversorgung450 W，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A
  • Form Factor1U Rack
*Die Produktleistung basiert auf Tests in kontrollierter Umgebung. Die Ergebnisse können variieren. Der Inhalt wurde maschinell übersetzt - für die Richtigkeit verweisen wir auf die englische Version.

Spezifikation

Devices and Resources
Video Management
300ch by default; can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function)
Access Controls
Not included; can be expanded into 1024 (Including Doors and Outdoor Station)
Indoor Station
Not included; can be expanded into 5000
ANPR Cameras
Not included; can be expanded into 1024ch
Lanes of Entrance & Exit
Not included, can be expanded into 40
Cameras with Face Capture Function
Not included; can be expanded into 3000ch
Alarm Panel
Not included; can be expanded into 1024
Smart Walls
Not included; can be expanded into：Smart Walls：32；Decoding devices：32
Attendance
Not included, can be expanded by extra license
Hardware Specifications
CPU
E-2324G×1， 3.1 GHz, 8 MB Cache， 4 Cores, 4 Threads
Speicher
Standard Config：1 × 16GB UDIMM，3200MT/s Scalability：4 × 128GB UDIMM
Hard Disks
Standard Config：2×1TB 3.5 inch SATA HDD Scalability：2×22TB 3.5 inch SATA/SAS HDD
Storage Controller
Standard Config：PERC H355 adaptor LP (support RAID 0/1) Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache
Supported Operating Systems
WinSvr2019 multilingual version pre-installed
PCIe Slots
Two Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots
Management
Remote Manage
iDrac9 Enterprise
OpenManage™ Software
Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)
Integrations and Connections
Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible; Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus
Sicherheit
Support Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter)
Anschlüsse
USB 3.0
0（Front）+1（Rear）
USB 2.0
1（Front）+1（Rear）
Ethernet Port
2 x LAN 10/100/1000
VGA
1
iDRAC Direct (Micro-AB USB) Port
1
iDRAC Ethernet Port
1
Manager Port
1
Allgemein
Nettogewicht
12.2 kg (26.9 lb)
Bruttogewicht
18.5 kg (40.79 lb)
Abmessung (B × H × T)
482.00 mm × 42.8 mm × 598.64 mm (18.97'' × 1.68'' × 23.56'')
Verpackungsabmessungen (BxHxT)
595.00 mm × 251.00 mm × 923.00 mm (23.43'' × 9.88'' × 36.34'')
Betriebstemperatur
10 °C to 35 °C (50 °F to 95 °F)
Lagertemperatur
-40 °C to 65 °C (-40 °F to 149 °F)
Luftfeuchtigkeit im Betrieb
8% to 80% (no condensation)
Lagerfeuchtigkeit
5% to 95% (no condensation)
Spannungsversorgung
450 W，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A
Form Factor
1U Rack
