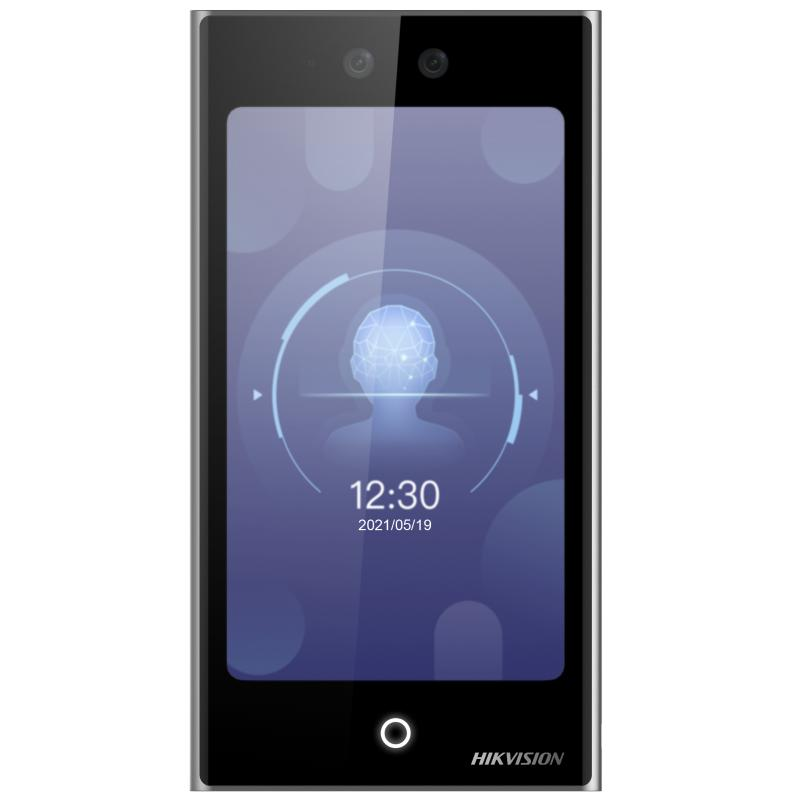

Pro Face Access Terminal

7-inch LCD touch screen,2 Mega pixel wide-angle lens
Recognition distance: 0.3 to 3 m
Face recognition duration ＜ 0.2 s/User
Face recognition accuracy rate ≥ 99%
Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
Face mask detection
10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity, and 150,000 event capacity
Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
Supports single person and multiple people (Up to 5 people) recognition

View Less

Data Sheet

Available models:

DS-K1T673DX

Spezifikation
Resources
Zubehör

Data Sheet

Monitor
Screen size7 inch
BetriebsartCapacitive touch screen
AuswahlIPS
Auflösung der Kamera600 × 1024

Video
Objektiv2
Auflösung der Kamera2 MP
FOVHFOV= 75.5°; VFOV= 41.5°; DFOV= 87°

Audio
Audio-QualitätBuilt-in omnidirectional microphone

Netzwerk
Verkabeldets NetzwerkSupport

Schnittstelle
Netzwerk-Schnittstelle1 RJ-45, 10/100/1000 M self-adaptive
Lock control1
Schaltfläche Beenden1
Türkontakt Eingang1
Alarm-Eingang2
Alarm-Ausgang1
SAOBTAGE1
RS-4851 RS-485 (Half duplex, HIKVISION)
Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
USB1 (For Module)
Audio output interface1 (3.5 mm)

Authentifizierung
KartentypM1 card;DESfire card;Felica card

Allgemein
Stromversorgung12 VDC to 24 VDC, 2 A
Betriebstemperatur-30 °C to 60 °C (-22 °F to 140 °F)
Betriebsfeuchtigkeit0 to 90% (no condensing)
SchutzlevelIP 65
Abmessungen110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")
Gross Weight：1.06 kg (2.34 lb) Net Weight：0.57 kg (1.26 lb)
SpracheEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, Traditional Chinese, French and Turkish

Gesichtserkennungs-Terminal/Kapazität
Fingerabdruck-Kapazität10,000 (With fingerprint module)

Funktion
Gesicht AntispoofingSupport

Monitor

Screen size

7 inch

Betriebsart

Capacitive touch screen

Auswahl

IPS

Auflösung der Kamera

600 × 1024

Video

Objektiv

Auflösung der Kamera

2 MP

FOV

HFOV= 75.5°; VFOV= 41.5°; DFOV= 87°

Audio

Audio-Qualität

Built-in omnidirectional microphone

Netzwerk

Verkabeldets Netzwerk

Support

Schnittstelle

Netzwerk-Schnittstelle

1 RJ-45, 10/100/1000 M self-adaptive

Lock control

Schaltfläche Beenden

Türkontakt Eingang

Alarm-Eingang

Alarm-Ausgang

SAOBTAGE

RS-485

1 RS-485 (Half duplex, HIKVISION)

Wiegand

1 Wiegand(Hik 26bit,Hik 34bit)

USB

1 (For Module)

Audio output interface

1 (3.5 mm)

Authentifizierung

Kartentyp

M1 card;DESfire card;Felica card

Allgemein

Stromversorgung

12 VDC to 24 VDC, 2 A

Betriebstemperatur

-30 °C to 60 °C (-22 °F to 140 °F)

Betriebsfeuchtigkeit

0 to 90% (no condensing)

Schutzlevel

IP 65

Abmessungen

110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")

Gross Weight：1.06 kg (2.34 lb) Net Weight：0.57 kg (1.26 lb)

Sprache

English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, Traditional Chinese, French and Turkish

Gesichtserkennungs-Terminal/Kapazität

Fingerabdruck-Kapazität

10,000 (With fingerprint module)

Funktion

Gesicht Antispoofing
