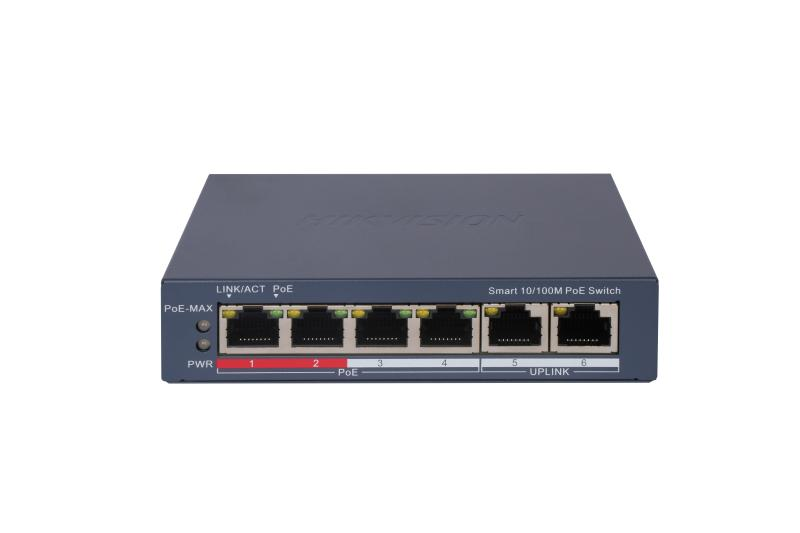

4 Port Fast Ethernet Smart POE Switch

4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
Total PoE Power Budget 60W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP Loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission
6KV Surge Protection

View Less

Data Sheet

Available models:

DS-3E1106P-EI

Specifikace
Resources
Příslušenství

Data Sheet

Všeobecné
KrytMetal material
Čistá hmotnost0.27 kg (0.6 lb)
Celková hmotnost0.77 kg (1.7 lb)
Rozměry (Š × V × H)121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
Provozní teplota0 °C to 40 °C (32 °F to 104 °F)
Skladovací teplota-40 °C to 85 °C (-40 °F to 185 °F)
Provozní vlhkost5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Zdroj napájení54VDC, 1.2A
Režim instalaceDesk-Mounted,Wall-Mounted
Max. Spotřeba energie65 W
Spotřeba energie v nečinnosti1.6 W
Surge Protection6 KV

Síťové parametry
Přístavy4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
Tabulka adres MAC2 K
Spínací kapacita14 Gbps
Rychlost předávání paketů10.42 Mpps
Interní mezipaměť1 Mbits

Napájení PoE
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE napájecí kolíkEnd-span: 1/2(-), 3/6(+)
PoE PortPoE: Ports 1 to 4
Max. Napájení portu30 W
Rozpočet napájení PoE60 W

Funkce softwaru
Dlouhý dosahPorts 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition.
VIP PortPorts 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Port IsolationPorts 1 to 4: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 2 aggregation groups.
Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.
VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.

Schválení
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
BezpečnostCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
ChemieReach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS (2011/65/EU)

Všeobecné

Kryt

Metal material

Čistá hmotnost

0.27 kg (0.6 lb)

Celková hmotnost

0.77 kg (1.7 lb)

Rozměry (Š × V × H)

121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')

Provozní teplota

0 °C to 40 °C (32 °F to 104 °F)

Skladovací teplota

-40 °C to 85 °C (-40 °F to 185 °F)

Provozní vlhkost

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Zdroj napájení

54VDC, 1.2A

Režim instalace

Desk-Mounted,Wall-Mounted

Max. Spotřeba energie

65 W

Spotřeba energie v nečinnosti

1.6 W

Surge Protection

6 KV

Síťové parametry

Přístavy

4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port

Tabulka adres MAC

2 K

Spínací kapacita

14 Gbps

Rychlost předávání paketů

10.42 Mpps

Interní mezipaměť

1 Mbits

Napájení PoE

PoE Standard

IEEE 802.3af,IEEE 802.3at

PoE napájecí kolík

End-span: 1/2(-), 3/6(+)

PoE Port

PoE: Ports 1 to 4

Max. Napájení portu

30 W

Rozpočet napájení PoE

60 W

Funkce softwaru

Dlouhý dosah

Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition.

VIP Port

Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.

Port Isolation

Ports 1 to 4: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog

Ports 1 to 4: auto detect and restart the cameras that do not respond.

Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 2 aggregation groups.

Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.

VLAN

VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.

System Maintenance

Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.

Schválení

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Bezpečnost

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemie

Reach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS (2011/65/EU)
