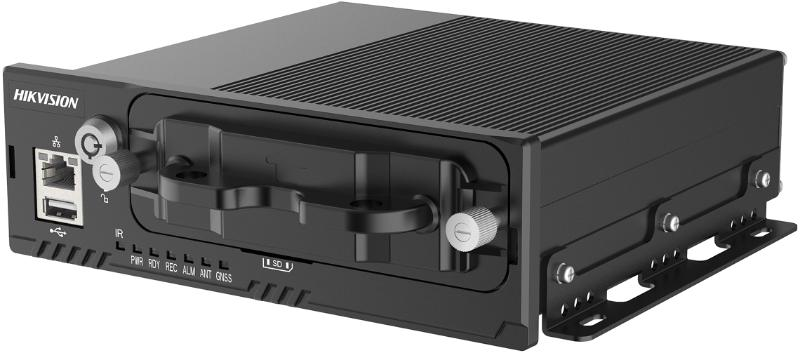

4-ch , H.264/H.265, 2xHDD/SSD Mobile DVR

Access of 4 HD TVI cameras with up to 1080P resolution.
Pluggable dummy HDD for HDD/SSD with up to 2 TB capacity.
User-friendly GUI providing easy and flexible operations.
Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
Build-in super-capacitor prevents the mobile DVR from damage caused by sudden power outage.
Wide-range power input (+9 VDC to +32 VDC).
Power-off protection prevents key data loss.
Aluminum die-cast chassis with no fan design well adaptable to working environment.
Software-based firewall supported.
Support accessing via WEB browser.
Support Driving Status Monitoring and Adcanced Driving Asistance System.
Support recording backup on redundant HDD/SSDs.
Support AI feature: ADAS, BSD-R and DSM.(Choose two out of three)

View Less

Available models:

AE-MD5043

AE-MD5043(1T)

AE-MD5043(1T/SSD)

AE-MD5043

Specifikace
Resources
Příslušenství

Video/Audio vstup
Analogová kamera4-ch HIK wiring sequence analog camera, Max. 1080P
Two-way Audio1, integrated in EXT.DEV interface

Video/Audio výstup
Audio výstup1
Video výstupMain output: 1, integrated in EXT.DEV interface

Parametry kódování/dekódování
Video kompreseH.265/H.264
Audio kompreseG.711a/G.711u/G.722.1/G.726
Přenosová rychlost zvuku16 Kbps
Typ streamuVideo, video & audio
Dual StreamSupported
Snímková frekvencePAL: 1 to 25 fps; NTSC: 1 to 30 fps
Rozlišení kódováníMain stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Bezdrátová síť
Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)
3G/4G Dialing1 × 4G card slot, 1 ×FAKRA antenna 5G module(optional)

Úložný prostor
SD Card Storage1 × SD card, up to 256 GB（not for baseline. Note the SD card capacity when ordering）
HDD/SDD2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD HDD/SSD data can be exported locally via this converter (optional) Hard Disk Case with heating function (optional)

Auxiliary Interface
Síťové rozhraníFront panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M 6-pin aviation connector Note：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.
Vstup alarmu4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
Výstup alarmu2 relay signal outputs
Vstup senzoru4 high/low level signal inputs
Sériový port2 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)
USB rozhraníFront panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector)

Polohování
GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Senzor
G-SenzorBuilt-in

Všeobecné
Zdroj napájení+9 to +32 VDC
Rozměry produktu206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37")
Spotřeba energieStandby: ≤ 0.5 W Full load: ≤ 45 W Note: Without peripheral and storage media ≤ 20 W
Provozní teplota-20°C to +60°C (-4°F to +140°F)
Provozní vlhkost10% to 95% (non-condensing)
Operation MethodMouse, IR remote control, Web control, and touchscreen
Weight (Without Storage Media)1.7 kg (3.75 lb.)

Schválení
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019)
BezpečnostCB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020)
životní prostředíCE-RoHS (2011/65/EU and amendment 2015/863/EU)
Automobilový průmysl a železniceEN50155(EN 50155:2017 clause 13, EN 50121-3-2:2016+A1:2019, EN50153:2014+A1:2017+A2:2020; BS EN ISO:13732-1:2008;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)

Video/Audio vstup

Analogová kamera

4-ch HIK wiring sequence analog camera, Max. 1080P

Two-way Audio

1, integrated in EXT.DEV interface

Video/Audio výstup

Audio výstup

Video výstup

Main output: 1, integrated in EXT.DEV interface

Parametry kódování/dekódování

Video komprese

H.265/H.264

Audio komprese

G.711a/G.711u/G.722.1/G.726

Přenosová rychlost zvuku

16 Kbps

Typ streamu

Video, video & audio

Dual Stream

Supported

Snímková frekvence

PAL: 1 to 25 fps; NTSC: 1 to 30 fps

Rozlišení kódování

Main stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Bezdrátová síť

Wi-Fi

WI58 model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)

3G/4G Dialing

1 × 4G card slot, 1 ×FAKRA antenna 5G module(optional)

Úložný prostor

SD Card Storage

1 × SD card, up to 256 GB（not for baseline. Note the SD card capacity when ordering）

HDD/SDD

2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD HDD/SSD data can be exported locally via this converter (optional) Hard Disk Case with heating function (optional)

Auxiliary Interface

Síťové rozhraní

Front panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M 6-pin aviation connector Note：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.

Vstup alarmu

4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input

Výstup alarmu

2 relay signal outputs

Vstup senzoru

4 high/low level signal inputs

Sériový port

2 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)

USB rozhraní

Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector)

Polohování

GNSS (Global Navigation Satellite System)

GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Senzor

G-Senzor

Built-in

Všeobecné

Zdroj napájení

+9 to +32 VDC

Rozměry produktu

206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37")

Spotřeba energie

Standby: ≤ 0.5 W Full load: ≤ 45 W Note: Without peripheral and storage media ≤ 20 W

Provozní teplota

-20°C to +60°C (-4°F to +140°F)

Provozní vlhkost

10% to 95% (non-condensing)

Operation Method

Mouse, IR remote control, Web control, and touchscreen

Weight (Without Storage Media)

1.7 kg (3.75 lb.)

Schválení

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019)

Bezpečnost

CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020)

životní prostředí

CE-RoHS (2011/65/EU and amendment 2015/863/EU)

Automobilový průmysl a železnice

EN50155(EN 50155:2017 clause 13, EN 50121-3-2:2016+A1:2019, EN50153:2014+A1:2017+A2:2020; BS EN ISO:13732-1:2008;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)
