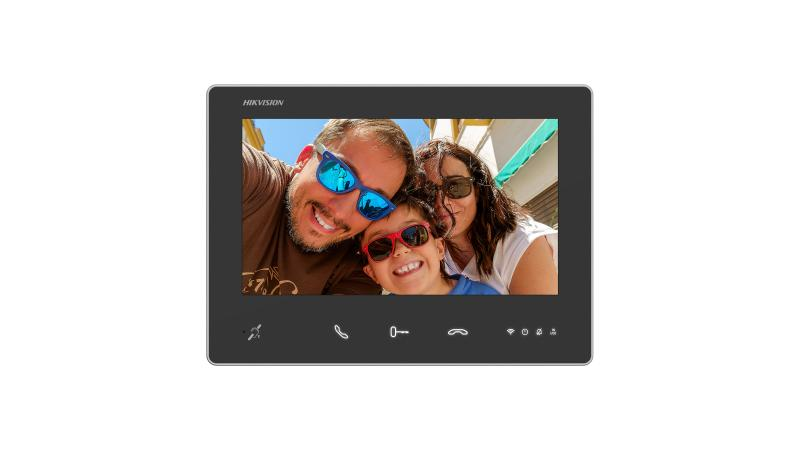

2-wire HD Indoor Station

  • Excellent Product Design：7-inch touch screen with 1024*600 high resolution
  • Excellent Product Design: 3 touch buttons, physically challenged friendly
  • Easy to Use: DEC knobs configuration;
  • Easy to Use: Plug & play, support different connection topologies
  • Easy to Use: Supports Hik-Connect App (model with W)
  • Easy to Use: Multiple indicators--Wi-Fi, power, mute, in use
  • Easy to Use: Max. 4 custom virtual buttons
  • View live view of door stations
  • Support Professional Studio / Trade button function (Open doors automatically)
  • Support Floor Call
  • Built-in induction loop works with hearing aids
View Less
View more
Sales Inquiry

Available models:

DS-KH7300EY-WTIE2
DS-KH7300EY-WTIE2

Specifikace

  • System parameters
  • Operating systemEmbedded Linux operation system
  • ROM32 MB
  • RAM128 MB
  • CPUEmbedded processor
  • Display parameters
  • Screen size7-inch
  • Provozní metodaCapacitive touch screen
  • TypColorful TFT screen
  • Řešení1024 × 600
  • Parametry videa
  • Objektiv/
  • FOV/
  • WDR/
  • Řešení/
  • Focal length/
  • Parametry zvuku
  • Standard komprese zvukuG.711 U G.711 A
  • Audio input1 Built-in omnidirectional microphone
  • Audio output1 Buit-in loudspeaker
  • Přenosová rychlost komprese zvuku64 Kps
  • Kvalita zvukuNoise suppression and echo cancellation
  • Nastavení hlasitostiAdjustable
  • Kapacita
  • Kapacita událostí200 captured pictures (with TF card)
  • Linked indoor extensions capacity3
  • Network parameters
  • Communication protocolTCP/IP, RTSP
  • Wi-Fi standard2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
  • 3G/4G standard/
  • Zigbee/
  • Rozhraní zařízení
  • Alarm input1
  • TAMPER/
  • RS-485/
  • USB/
  • TF karta Max to 128 G, SD 2.0 or lower version
  • Alarm output/
  • DIP switch5 decimal DIP switch and 4 binary DIP switch
  • Power supply input48V，powered by DS-KAD7060EY or DS-KAD7061EY
  • Two-wire IP interface2, 1 for input 1 for output
  • Všeobecné
  • Tlačítko 3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
  • InstalaceSurface mounting
  • Indikátor4（Wifi、Power、Mute、In use）
  • Ochranná úroveň/
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 90% (no-condensing)
  • Dimensions190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
  • Baterie/
  • Power supply48V，Powered by DS-KAD7060EY or DS-KAD7061EY
  • Prostředí aplikaceIndoor
  • Power consumption≤ 5W (stand by ≤ 1.2 W)
  • JazykEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specifikace

System parameters
Operating system
Embedded Linux operation system
ROM
32 MB
RAM
128 MB
CPU
Embedded processor
Display parameters
Screen size
7-inch
Provozní metoda
Capacitive touch screen
Typ
Colorful TFT screen
Řešení
1024 × 600
Parametry videa
Objektiv
/
FOV
/
WDR
/
Řešení
/
Focal length
/
Parametry zvuku
Standard komprese zvuku
G.711 U G.711 A
Audio input
1 Built-in omnidirectional microphone
Audio output
1 Buit-in loudspeaker
Přenosová rychlost komprese zvuku
64 Kps
Kvalita zvuku
Noise suppression and echo cancellation
Nastavení hlasitosti
Adjustable
Kapacita
Kapacita událostí
200 captured pictures (with TF card)
Linked indoor extensions capacity
3
Network parameters
Communication protocol
TCP/IP, RTSP
Wi-Fi standard
2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
3G/4G standard
/
Zigbee
/
Rozhraní zařízení
Alarm input
1
TAMPER
/
RS-485
/
USB
/
TF karta
Max to 128 G, SD 2.0 or lower version
Alarm output
/
DIP switch
5 decimal DIP switch and 4 binary DIP switch
Power supply input
48V，powered by DS-KAD7060EY or DS-KAD7061EY
Two-wire IP interface
2, 1 for input 1 for output
Všeobecné
Tlačítko
3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
Instalace
Surface mounting
Indikátor
4（Wifi、Power、Mute、In use）
Ochranná úroveň
/
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
10% to 90% (no-condensing)
Dimensions
190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
Baterie
/
Power supply
48V，Powered by DS-KAD7060EY or DS-KAD7061EY
Prostředí aplikace
Indoor
Power consumption
≤ 5W (stand by ≤ 1.2 W)
Jazyk
English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specifikace
System parameters
  • Operating systemEmbedded Linux operation system
  • ROM32 MB
  • RAM128 MB
  • CPUEmbedded processor
Display parameters
  • Screen size7-inch
  • Provozní metodaCapacitive touch screen
  • TypColorful TFT screen
  • Řešení1024 × 600
Parametry videa
  • Objektiv/
  • FOV/
  • WDR/
  • Řešení/
  • Focal length/
Parametry zvuku
  • Standard komprese zvukuG.711 U G.711 A
  • Audio input1 Built-in omnidirectional microphone
  • Audio output1 Buit-in loudspeaker
  • Přenosová rychlost komprese zvuku64 Kps
  • Kvalita zvukuNoise suppression and echo cancellation
  • Nastavení hlasitostiAdjustable
Kapacita
  • Kapacita událostí200 captured pictures (with TF card)
  • Linked indoor extensions capacity3
Network parameters
  • Communication protocolTCP/IP, RTSP
  • Wi-Fi standard2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
  • 3G/4G standard/
  • Zigbee/
Rozhraní zařízení
  • Alarm input1
  • TAMPER/
  • RS-485/
  • USB/
  • TF karta Max to 128 G, SD 2.0 or lower version
  • Alarm output/
  • DIP switch5 decimal DIP switch and 4 binary DIP switch
  • Power supply input48V，powered by DS-KAD7060EY or DS-KAD7061EY
  • Two-wire IP interface2, 1 for input 1 for output
Všeobecné
  • Tlačítko 3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
  • InstalaceSurface mounting
  • Indikátor4（Wifi、Power、Mute、In use）
  • Ochranná úroveň/
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 90% (no-condensing)
  • Dimensions190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
  • Baterie/
  • Power supply48V，Powered by DS-KAD7060EY or DS-KAD7061EY
  • Prostředí aplikaceIndoor
  • Power consumption≤ 5W (stand by ≤ 1.2 W)
  • JazykEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.2.54_241107
2 Wire HD Video Intercom Solution V1.0.6_build241107 Release Note
