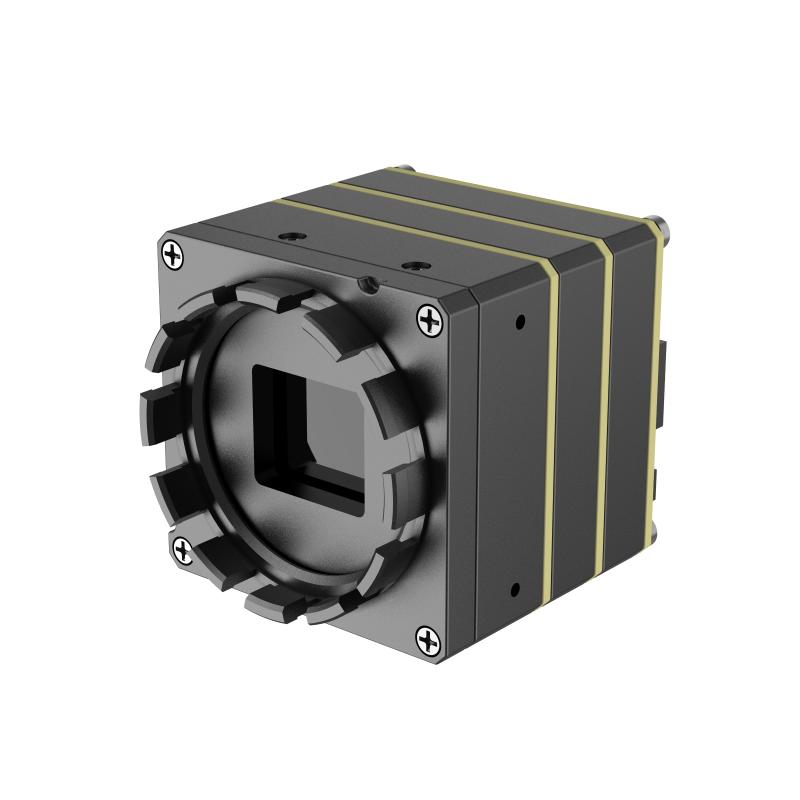

Thermal Camera Core

High sensitivity sensor with 384 x 288 resolution
NETD is less than 35 mk (@25° C, F#=1.0)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Highly-reliable shutter, up to 300,000 exposures
Support CVBS and BT.656
Digital zoom 1x, 2x, 4x, 8x
Focus mode configuration (manual, semi-auto focus)

View Less

DS-2TM03-LF/A

Specifikace
Resources
Příslušenství

Tepelný modul
Senzor obrazuVanadium Oxide Uncooled Focal Plane Arrays
NETD< 35mk @ F1.0, 25 °C (86 °F)
Vlna pásma odezvy8 μm to 14 μm
Max. rozlišení384 × 288
Pixel Pitch17 μm
Frame25 fps (BT656); 50 fps (YUV+RAW)
PaletyWhite Hot, Black Hot, Fusion1, Rainbow, Fusion2, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue

Systém
Nitkový křížSupport Cross Auxiliary Correction Function (For PTZ)

Všeobecné
Napájení12 VDC (5-16VDC)
Spotřeba energie≤ 1.26 mW (TYP) With Zoom And Focus Off
Video výstup8 bit BT.656 (720 × 576)/(YUV+14 bit RAW) BT.656 Output Data Supports Progressive / Interlaced Configurable
First image< 5s
Typ komunikaceRS-232 Serial Port
Shutter Life300,000 Times
Držák objektivuM34*0.75; M45*1
Pracovní teplota-40 °C to +70 °C (-40 °F to 158 °F)
Skladovací teplota-45 °C to +85 °C (-49 °F to 185°F)
Dimensions40 mm × 41 mm × 49 mm (1.57 ″× 1.61 ″× 1.93 ″)
Váha< 82 g (0.18 lb) (Without Lens)
