NEW

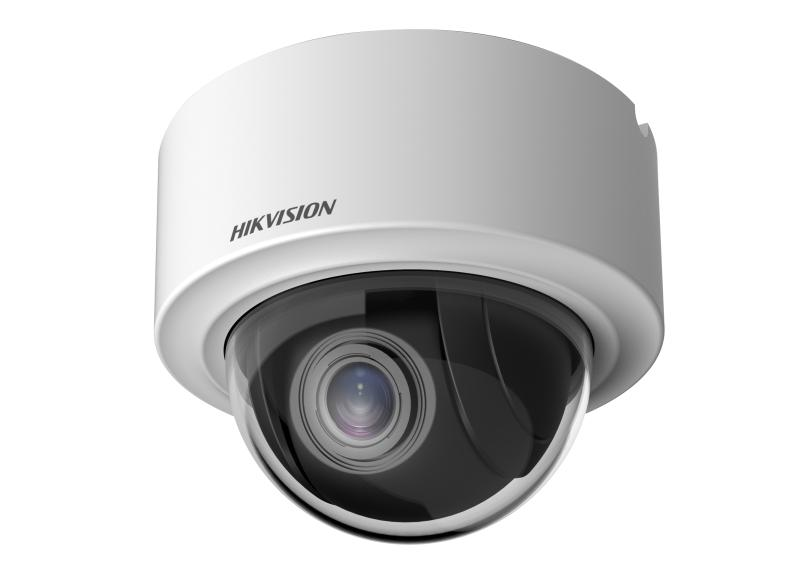

3-inch 4 MP 4x Zoom Mini PT Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 4 × optical zoom allows for closer viewing of subjects in expansive areas
  • Water and dust resistant (IP66)
View Less
View more

Available models:

DS-2DE3404W-DE(T5)

Specifikace

  • Kamera
  • Senzor obrazu1/2.8" progressive scan CMOS
  • Max. rozlišení2560 × 1440
  • Min. osvětleníColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON)
  • Rychlost závěrky1/1 to 1/30,000 s
  • Den & NocIR cut filter
  • Zoom4 × optical, 16 × digital
  • Pomalá závěrkaYes
  • Objektiv
  • Ohnisková vzdálenost2.8 to 12 mm
  • FOVHorizontal field of view: 93.8° to 31.7° (wide-tele) Vertical field of view: 50.9° to 17.9° (wide-tele) Diagonal field of view: 110.3° to 36.1° (wide-tele)
  • OhniskoAuto, semi-auto, manual
  • ClonaMax. F1.5
  • Rychlost zoomuApprox. 2.0 s
  • PTZ
  • Rozsah pohybu (otáčení)350°
  • Rozsah pohybu (náklon)0° to 90°
  • Rychlost otáčeníPan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
  • Rychlost náklonuTilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
  • Proportional PanYes
  • Předvolby300
  • Přednastavené zmrazeníYes
  • Patrolové skenování8 patrols, up to 32 presets for each patrol
  • ParkováníPreset, patrol scan
  • 3D polohováníYes
  • Zobrazení stavu PTZYes
  • Naplánovaný úkolPreset, patrol scan, dome reboot, dome adjust, aux output
  • Vypínací paměťYes
  • Video
  • Hlavní proud50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Vedlejší stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Třetí proud50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video kompreseMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Přenosová rychlost videa32 Kbps to 16 Mbps
  • H.264 typBaseline Profile/Main Profile/High Profile
  • H.265 typMain profile
  • Škálovatelné kódování videa (SVC)H.264 and H.265 encoding
  • Oblast zájmu (ROI)8 fixed regions for each stream
  • Zvuk
  • Audio kompreseG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
  • Přenosová rychlost zvukuMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
  • Míra audio vzorůMP2L2: 16kHz, 32kHz, 48kHz; PCM: 8kHz, 16kHz, 32kHz, 48kHz
  • Filtrování šumu prostředíYes
  • Síť
  • ProtokolyIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Současný živý náhledUp to 20 channels
  • APIISUP, ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface
  • Uživatel/hostitelUp to 32 users; 3 user levels: administrator, operator, and user
  • BezpečnostPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter
  • Síťové úložištěNAS (NFS, SMB/CIFS)
  • KlientiVMS-4200, Hik-Connect, HikCentral
  • Webový prohlížečFirefox 52+, Safari 11+, Chrome 57+, IE11
  • Obraz
  • Přepínač parametrů obrazuYes
  • Nastavení obrazuSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Přepínač den/nocDay, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR)120 dB WDR
  • SNR≥ 52 dB
  • DefogDigital defog
  • Vylepšení obrazuBLC, HLC, 3D DNR
  • Maska ochrany osobních údajů24 programmable polygon privacy masks, mask color or mosaic configurable
  • Regionální zaměřeníYes
  • Regionální expoziceYes
  • Rozhraní
  • Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
  • Vnitřní uložištěBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Zvuk1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Alarm1 input, 1 output
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • ResetovatYes
  • Událost
  • Základní událostMotion detection, video tampering alarm, alarm input and output, exception
  • Inteligentní událostLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan)
  • Všeobecné
  • Napájení12 VDC, PoE (802.3af) Max. 10 W
  • RozměryØ140.7 mm × 107.2 mm (Ø5.54" × 4.22")
  • VáhaApprox. 950 g (2.09 lb.)
  • MateriálADC12, PC
  • Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • Obecné funkcePrivacy mask, mirror, password protection, watermark, IP address filter
  • Jazyk33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Schválení
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
  • BezpečnostUL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
  • životní prostředíCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • OchranaIP66 (IEC 60529-2013), TVS 4000V lightning protection, surge protection and voltage transient protection

Specifikace

Specifikace
Kamera
  • Senzor obrazu1/2.8" progressive scan CMOS
  • Max. rozlišení2560 × 1440
  • Min. osvětleníColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON)
  • Rychlost závěrky1/1 to 1/30,000 s
  • Den & NocIR cut filter
  • Zoom4 × optical, 16 × digital
  • Pomalá závěrkaYes
Objektiv
  • Ohnisková vzdálenost2.8 to 12 mm
  • FOVHorizontal field of view: 93.8° to 31.7° (wide-tele) Vertical field of view: 50.9° to 17.9° (wide-tele) Diagonal field of view: 110.3° to 36.1° (wide-tele)
  • OhniskoAuto, semi-auto, manual
  • ClonaMax. F1.5
  • Rychlost zoomuApprox. 2.0 s
PTZ
  • Rozsah pohybu (otáčení)350°
  • Rozsah pohybu (náklon)0° to 90°
  • Rychlost otáčeníPan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
  • Rychlost náklonuTilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
  • Proportional PanYes
  • Předvolby300
  • Přednastavené zmrazeníYes
  • Patrolové skenování8 patrols, up to 32 presets for each patrol
  • ParkováníPreset, patrol scan
  • 3D polohováníYes
  • Zobrazení stavu PTZYes
  • Naplánovaný úkolPreset, patrol scan, dome reboot, dome adjust, aux output
  • Vypínací paměťYes
Video
  • Hlavní proud50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Vedlejší stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Třetí proud50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video kompreseMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Přenosová rychlost videa32 Kbps to 16 Mbps
  • H.264 typBaseline Profile/Main Profile/High Profile
  • H.265 typMain profile
  • Škálovatelné kódování videa (SVC)H.264 and H.265 encoding
  • Oblast zájmu (ROI)8 fixed regions for each stream
Zvuk
  • Audio kompreseG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
  • Přenosová rychlost zvukuMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
  • Míra audio vzorůMP2L2: 16kHz, 32kHz, 48kHz; PCM: 8kHz, 16kHz, 32kHz, 48kHz
  • Filtrování šumu prostředíYes
Síť
  • ProtokolyIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Současný živý náhledUp to 20 channels
  • APIISUP, ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface
  • Uživatel/hostitelUp to 32 users; 3 user levels: administrator, operator, and user
  • BezpečnostPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter
  • Síťové úložištěNAS (NFS, SMB/CIFS)
  • KlientiVMS-4200, Hik-Connect, HikCentral
  • Webový prohlížečFirefox 52+, Safari 11+, Chrome 57+, IE11
Obraz
  • Přepínač parametrů obrazuYes
  • Nastavení obrazuSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Přepínač den/nocDay, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR)120 dB WDR
  • SNR≥ 52 dB
  • DefogDigital defog
  • Vylepšení obrazuBLC, HLC, 3D DNR
  • Maska ochrany osobních údajů24 programmable polygon privacy masks, mask color or mosaic configurable
  • Regionální zaměřeníYes
  • Regionální expoziceYes
Rozhraní
  • Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
  • Vnitřní uložištěBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Zvuk1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Alarm1 input, 1 output
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • ResetovatYes
Událost
  • Základní událostMotion detection, video tampering alarm, alarm input and output, exception
  • Inteligentní událostLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan)
Všeobecné
  • Napájení12 VDC, PoE (802.3af) Max. 10 W
  • RozměryØ140.7 mm × 107.2 mm (Ø5.54" × 4.22")
  • VáhaApprox. 950 g (2.09 lb.)
  • MateriálADC12, PC
  • Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • Obecné funkcePrivacy mask, mirror, password protection, watermark, IP address filter
  • Jazyk33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Schválení
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
  • BezpečnostUL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
  • životní prostředíCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • OchranaIP66 (IEC 60529-2013), TVS 4000V lightning protection, surge protection and voltage transient protection
