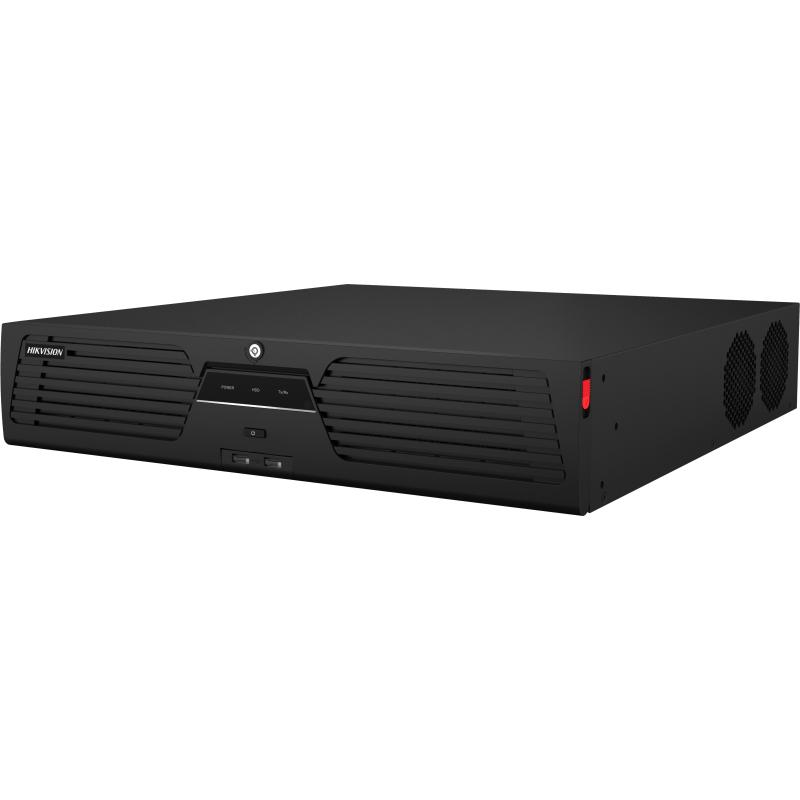

32-ch 2U 8K NVR

Up to 32-ch IP camera inputs
Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
Up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
Redundant power supply
Up to 8-ch IP speakers can be connected

View Less

Data Sheet

Available models:

DS-9632NI-M8/R

Specifikace
Resources
Příslušenství

Data Sheet

Video and Audio
IP Video Input32-ch
Incoming Bandwidth320 Mbps
Outgoing Bandwidth400 Mbps
HDMI 1 Output8K(7680×4320)/30Hz, 4K（3840×2160）/60Hz,4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz
HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output1920 × 1080/60Hz
VGA 2 Output1920 × 1080/60Hz
Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio výstup2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Dekódování
Formát dekódováníH.265+/H.265/H.264+/H.264
Rozlišení záznamu32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronní přehrávání16-ch
Schopnost dekódování2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Audio kompreseG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Síť
Síťový protokolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Síťové rozhraní2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP

RAID
RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface
Sériové rozhraní1 RS-485 (full-duplex), 1 RS-232
SATA8 SATA interfaces
eSATA1 eSATA interface
KapacitaUp to 16 TB capacity for each disk
Vstup/výstup alarmu16/9
USB rozhraníFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output

Všeobecné
Zdroj napájení100 to 240 VAC, 50 to 60 Hz, redundant power supply
Spotřeba≤ 50 W (without HDD)
Pracovní teplota-10 °C to 55 °C (14 °F to 131 °F)
Pracovní vlhkost10% to 90%
Podvozek2U chassis
Rozměry (Š × H × V)445 × 540 × 93 mm ( 17.5"× 21.3" × 3.7")
Váha≤ 10 kg (without HDD, 22 lb.)

Certifikace
Obtained CertificationCE, FCC
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Video and Audio

IP Video Input

32-ch

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

400 Mbps

HDMI 1 Output

8K(7680×4320)/30Hz, 4K（3840×2160）/60Hz,4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz

HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

VGA 1 Output

1920 × 1080/60Hz

VGA 2 Output

1920 × 1080/60Hz

Video Output Mode

HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio výstup

2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Dekódování

Formát dekódování

H.265+/H.265/H.264+/H.264

Rozlišení záznamu

32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronní přehrávání

16-ch

Schopnost dekódování

2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)

Audio komprese

G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Síť

Síťový protokol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

Síťové rozhraní

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Camera Access Protocol

ONVIF(Version 2.5), RTSP

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

Sériové rozhraní

1 RS-485 (full-duplex), 1 RS-232

SATA

8 SATA interfaces

eSATA

1 eSATA interface

Kapacita

Up to 16 TB capacity for each disk

Vstup/výstup alarmu

16/9

USB rozhraní

Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0

Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.

DC 12V

12 VDC, 1 A power output

Všeobecné

Zdroj napájení

100 to 240 VAC, 50 to 60 Hz, redundant power supply

Spotřeba

≤ 50 W (without HDD)

Pracovní teplota

-10 °C to 55 °C (14 °F to 131 °F)

Pracovní vlhkost

10% to 90%

Podvozek

2U chassis

Rozměry (Š × H × V)

445 × 540 × 93 mm ( 17.5"× 21.3" × 3.7")

Váha

≤ 10 kg (without HDD, 22 lb.)

Certifikace

Obtained Certification

CE, FCC

FCC

Part 15 Subpart B, ANSI C63.4-2014

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
