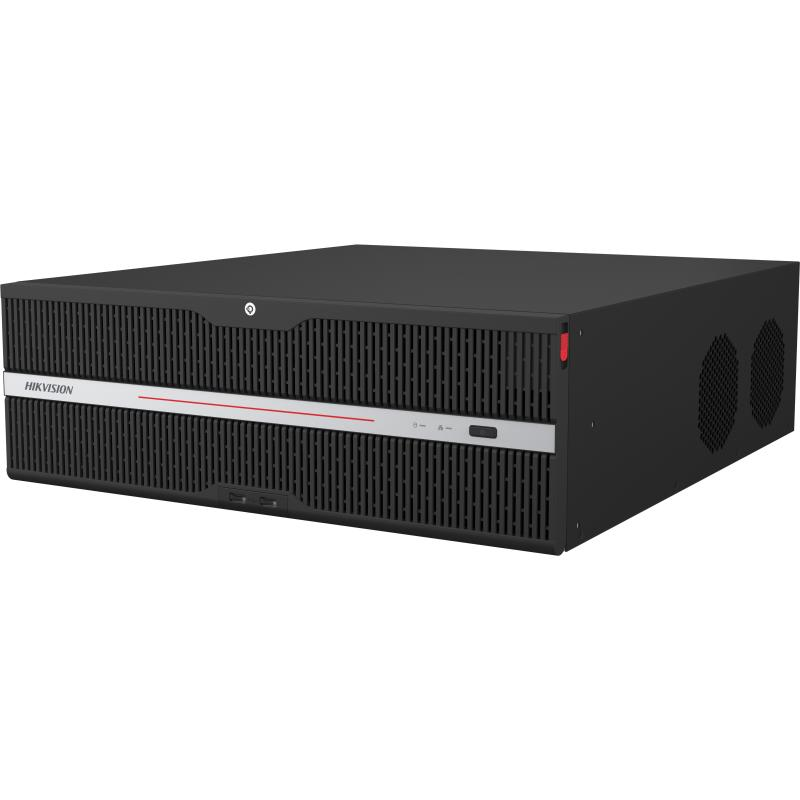

64-ch 3U 8K DeepinMind NVR

Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
H.265+/H.265/H.264+/H.264 video formats
Up to 64-ch IP cameras can be connected
Intelligent analytics based on deep learning algorithm
Up to 24-ch perimeter protection
Up to 16-ch facial recognition for video stream, or up to 48-ch facial recognition for face picture
Up to 12-ch video structuralization
Up to 8-ch IP speakers can be connected

View Less

Data Sheet

Available models:

iDS-9664NXI-M16/X

Specifikace
Resources
Příslušenství

Data Sheet

Intelligent Analytics
AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
Engine2, each engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Knihovna obrazů obličejeUp to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison (Captured from Camera)48-ch (24-ch for each engine); Comparison speed: 48 pictures per second
Facial Detection and Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP

AcuSearch
By CameraAll channels ,up to 691,200 targets/day The camera should enable AcuSearch function
By NVRup to 8-ch,up to 691,200 targets/day

Ochrana perimetru
By NVRperimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
By Cameraperimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structuralization
Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
Knihovna obrazů obličejeUp to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Srovnání obrazu obličeje16-ch; Comparison speed: 32 pictures per second

ANPR
By CameraAll channels
Plate AttributesPlate number, license plate color, license plate type
Atributy vozidlaVehicle brand, vehicle color, vehicle type

Video and Audio
IP Video Input64-ch Up to 32 MP resolution
Incoming Bandwidth400 Mbps
Outgoing Bandwidth400 Mbps
HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.
Incoming Bandwidth (RAID Mode)400 Mbps
Outgoing Bandwidth (RAID mode)400 Mbps
VGA 1 Output1920 × 1080/60Hz
VGA 2 Output1920 × 1080/60Hz
Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio výstup2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Dekódování
Formát dekódováníH.265/H.265+/H.264/H.264+
Schopnost dekódování2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Synchronous Playback16-ch
Rozlišení záznamu32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Síť
Vzdálené připojení128
Síťový protokolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Síťové rozhraní2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP

RAID
RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface
Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output
SATA16 SATA interfaces; 3.5-inch HDD
eSATA1 eSATA interface
KapacitaUp to 16 TB capacity for each HDD
Sériové rozhraní1 RS-232, 1 RS-485 (full-duplex)
USB rozhraníFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Vstup/výstup alarmu16/9

Všeobecné
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Zdroj napájení100 to 240 VAC, 50 to 60 Hz
Spotřeba≤ 50 W (without HDD)
Pracovní teplota-10 to 55°C (14 to 131° F)
Pracovní vlhkost10 to 90%
Rozměry (Š × H × V)442× 494× 150 mm (17.4"× 19.5" × 5.9")
Váha≤ 13 kg (without HDD, 28.7 lb.)

Certifikace
Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, video structuralization, AcuSearch

AI by Camera

Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA

Engine

2, each engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Knihovna obrazů obličeje

Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)

Face Picture Comparison (Captured from Camera)

48-ch (24-ch for each engine); Comparison speed: 48 pictures per second

Facial Detection and Analytics Performance

16-ch 2 MP (8-ch for each engine), up to 8 MP

AcuSearch

By Camera

All channels ,up to 691,200 targets/day The camera should enable AcuSearch function

By NVR

up to 8-ch,up to 691,200 targets/day

Ochrana perimetru

By NVR

perimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP

By Camera

perimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structuralization

Structured Analysis

12-ch 2 MP (6-ch for each engine), up to 8 MP

Knihovna obrazů obličeje

Srovnání obrazu obličeje

16-ch; Comparison speed: 32 pictures per second

ANPR

By Camera

All channels

Plate Attributes

Plate number, license plate color, license plate type

Atributy vozidla

Vehicle brand, vehicle color, vehicle type

Video and Audio

IP Video Input

64-ch Up to 32 MP resolution

Incoming Bandwidth

400 Mbps

Outgoing Bandwidth

400 Mbps

HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.

Incoming Bandwidth (RAID Mode)

400 Mbps

Outgoing Bandwidth (RAID mode)

400 Mbps

VGA 1 Output

1920 × 1080/60Hz

VGA 2 Output

1920 × 1080/60Hz

Video Output Mode

HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio výstup

2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Dekódování

Formát dekódování

H.265/H.265+/H.264/H.264+

Schopnost dekódování

2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)

Synchronous Playback

16-ch

Rozlišení záznamu

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Síť

Vzdálené připojení

128

Síťový protokol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Síťové rozhraní

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Camera Access Protocol

ONVIF(Version 2.5), RTSP

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.

DC 12V

12 VDC, 1 A power output

SATA

16 SATA interfaces; 3.5-inch HDD

eSATA

1 eSATA interface

Kapacita

Up to 16 TB capacity for each HDD

Sériové rozhraní

1 RS-232, 1 RS-485 (full-duplex)

USB rozhraní

Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0

Vstup/výstup alarmu

16/9

Všeobecné

GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian

Zdroj napájení

100 to 240 VAC, 50 to 60 Hz

Spotřeba

≤ 50 W (without HDD)

Pracovní teplota

-10 to 55°C (14 to 131° F)

Pracovní vlhkost

10 to 90%

Rozměry (Š × H × V)

442× 494× 150 mm (17.4"× 19.5" × 5.9")

Váha

≤ 13 kg (without HDD, 28.7 lb.)

Certifikace

Obtained Certification

CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

FCC

Part 15 Subpart B, ANSI C63.4-2014

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
