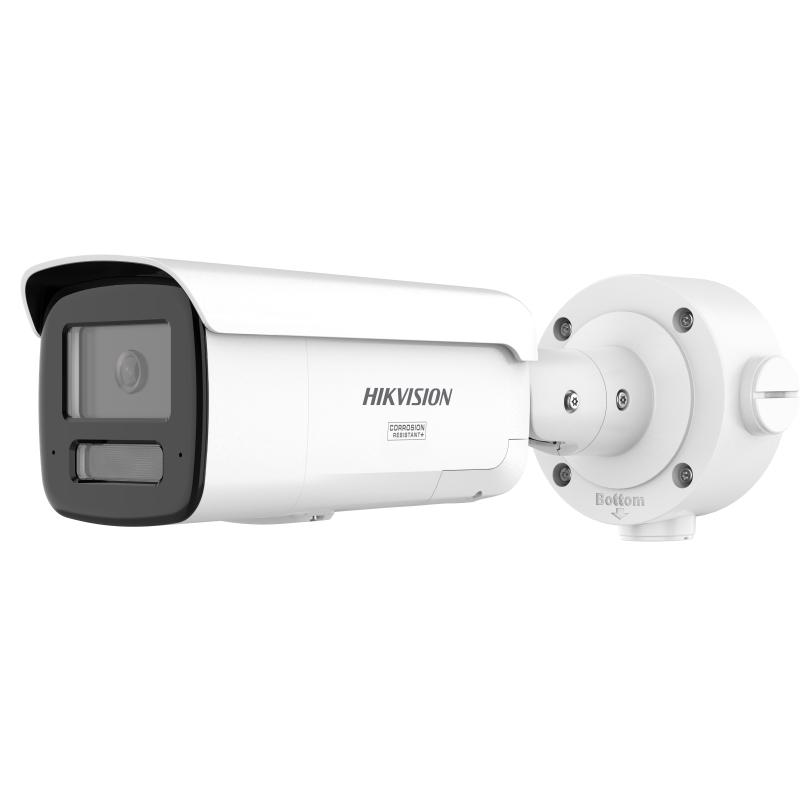

4 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera

HIK AI-ISP for excellant noise reduction effect
24/7 colorful imaging via Darkfighter 2.0 technology
Scene-adaptive WDR
Focus on Person and Vehicle classification based on deep learning
Built-in arrayed dual-microphone for real-time high quality audio security
Provide real-time security via built-in two-way audio
-Y: Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
Audio and alarm interface available
Water and dust resistant (IP67)
Active strobe light and audio alarm to warn intruders off

View Less

Data Sheet

Available models:

DS-2CD3T46G3-LISU/SL(2.8mm)(eF)

DS-2CD3T46G3-LISU/SL(4mm)(eF)

DS-2CD3T46G3-LISU/SL(Y) ^NEW

Specifikace
Resources
Příslušenství

Data Sheet

Kamera
Senzor obrazu1/1.8" Progressive Scan CMOS
Max. rozlišení2688 × 1520
Min. osvětleníColor: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
Čas závěrky1 s to 1/100,000 s
Den & NocIR cut filter
Nastavení úhluPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Objektiv
Typ objektivuFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5° 4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
Držák objektivuM16
Iris TypeFixed
ClonaF1.0
Depth of Field2.8 mm: 2.5 m to ∞ 4 mm: 3.1 m to ∞

DORI
DORI2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Iluminátor
Doplňkový typ světlaIR,White Light
Doplňte rozsah světlaUp to 60 m
Chytré doplňkové světloYes
IR Wavelength850 nm

HEOP
Open ResourcesMemory: 60 MB, Smart RAM: 450 MB, eMMC: 2 GB
Computing Power1.5 TOPS
Open CapabilityHEOP 2.0 OpendevSDK
Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
Programming LanguageC,C++

Video
Hlavní proud50 Hz: 25 fps (2688 × 1520) 60 Hz: 30 fps (2688 × 1520) 50 Hz: 50 fps (1920 × 1080, 1280 × 720) 60 Hz: 60 fps (1920 × 1080, 1280 × 720)
Vedlejší stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Třetí proud50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *The third stream is supported under certain settings.
Čtvrtý proud50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
Video kompreseMain stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG,
Přenosová rychlost videa32 Kbps to 8 Mbps
H.264 typBaseline Profile,Main Profile,High Profile
H.265 typMain Profile
Řízení bitové rychlostiCBR,VBR
Škálovatelné kódování videa (SVC)H.264 and H.265 encoding
Oblast zájmu (ROI) 5 fixed regions for main stream and sub-stream
e-PTZSupport Patrol and Auto Tracking settings

Zvuk
Typ zvukuMono sound
Audio kompreseG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Přenosová rychlost zvuku64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Míra audio vzorů8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředíYes

Síť
ProtokolyTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Současný živý náhledUp to 6 channels
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Uživatel/hostitelUp to 32 users 3 user levels: administrator, operator, and user
BezpečnostPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Síťové úložištěNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
KlientiVMS-4200,Hik-Connect,Hik-Central
Webový prohlížečPlug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+ Local service: Chrome 91+, Firefox 88+, Edge 91+

Obraz
Přepínač parametrů obrazuYes
Nastavení obrazuRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Přepínač den/nocDay,Night,Auto,Schedule
Vylepšení obrazuBLC,HLC,3D DNR,Distortion Correction,Defog
SNR≥ 52 dB
Wide Dynamic Range (WDR)130 dB
Image StabilizationEIS
Maska ochrany osobních údajů8 programmable polygon privacy masks

Rozhraní
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Vestavěný reproduktorMax. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
ZvukBuilt-in Microphone: Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Reset KeyYes
Výstupní výkon12 VDC, max. 100 mA

Událost
Základní událostMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Inteligentní událostScene change detection, audio exception detection, defocus detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light

Deep Learning Function
Zachycení obličejeYes
Počítání lidíYes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Všeobecné
Napájení12 VDC ± 25%, 1.41 A, max. 17 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
MateriálFront cover: metal, body: metal, bracket: Metal
Rozměry323.2 mm × 91.2 mm × 88.7 mm (12.72" × 3.59" × 3.49")
Rozměr balení386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
VáhaApprox. 1250 g (2.8 lb.)
S váhou baleníApprox. 1800 g (3.9 lb.)
Podmínky skladování-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Obecné funkceHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Jazyk33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Blikající světloWhite Light

Schválení
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
BezpečnostUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
životní prostředíCE-RoHS: 2011/65/EU
OchranaIP67: IEC 60529-2013,IK10: IEC 62262:2002
Antikorozní ochrana-Y: NEMA 4X (NEMA 250-2018)

Kamera

Senzor obrazu

1/1.8" Progressive Scan CMOS

Max. rozlišení

2688 × 1520

Min. osvětlení

Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light

Čas závěrky

1 s to 1/100,000 s

Den & Noc

IR cut filter

Nastavení úhlu

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Objektiv

Typ objektivu

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5° 4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°

Držák objektivu

M16

Iris Type

Fixed

Clona

F1.0

Depth of Field

2.8 mm: 2.5 m to ∞ 4 mm: 3.1 m to ∞

DORI

2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Iluminátor

Doplňkový typ světla

IR,White Light

Doplňte rozsah světla

Up to 60 m

Chytré doplňkové světlo

Yes

IR Wavelength

850 nm

HEOP

Open Resources

Memory: 60 MB, Smart RAM: 450 MB, eMMC: 2 GB

Computing Power

1.5 TOPS

Open Capability

HEOP 2.0 OpendevSDK

Deep Learning Structure

Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX

Programming Language

C,C++

Video

Hlavní proud

50 Hz: 25 fps (2688 × 1520) 60 Hz: 30 fps (2688 × 1520) 50 Hz: 50 fps (1920 × 1080, 1280 × 720) 60 Hz: 60 fps (1920 × 1080, 1280 × 720)

Vedlejší stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Třetí proud

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *The third stream is supported under certain settings.

Čtvrtý proud

50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.

Video komprese

Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG,

Přenosová rychlost videa

32 Kbps to 8 Mbps

H.264 typ

Baseline Profile,Main Profile,High Profile

H.265 typ

Main Profile

Řízení bitové rychlosti

CBR,VBR

Škálovatelné kódování videa (SVC)

H.264 and H.265 encoding

Oblast zájmu (ROI)

5 fixed regions for main stream and sub-stream

e-PTZ

Support Patrol and Auto Tracking settings

Zvuk

Typ zvuku

Mono sound

Audio komprese

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Přenosová rychlost zvuku

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Míra audio vzorů

8 kHz/16 kHz/32 kHz/48 kHz

Filtrování šumu prostředí

Yes

Síť

Protokoly

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Současný živý náhled

Up to 6 channels

API

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

Uživatel/hostitel

Up to 32 users 3 user levels: administrator, operator, and user

Bezpečnost

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Síťové úložiště

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

Klient

iVMS-4200,Hik-Connect,Hik-Central

Webový prohlížeč

Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+ Local service: Chrome 91+, Firefox 88+, Edge 91+

Obraz

Přepínač parametrů obrazu

Yes

Nastavení obrazu

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Přepínač den/noc

Day,Night,Auto,Schedule

Vylepšení obrazu

BLC,HLC,3D DNR,Distortion Correction,Defog

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

130 dB

Image Stabilization

EIS

Maska ochrany osobních údajů

8 programmable polygon privacy masks

Rozhraní

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Vestavěný reproduktor

Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.

Zvuk

Built-in Microphone: Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)

Reset Key

Yes

Výstupní výkon

12 VDC, max. 100 mA

Událost

Základní událost

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Inteligentní událost

Scene change detection, audio exception detection, defocus detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light

Deep Learning Function

Zachycení obličeje

Yes

Počítání lidí

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Všeobecné

Napájení

12 VDC ± 25%, 1.41 A, max. 17 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W

Materiál

Front cover: metal, body: metal, bracket: Metal

Rozměry

323.2 mm × 91.2 mm × 88.7 mm (12.72" × 3.59" × 3.49")

Rozměr balení

386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")

Váha

Approx. 1250 g (2.8 lb.)

S váhou balení

Approx. 1800 g (3.9 lb.)

Podmínky skladování

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Spuštění a provozní podmínky

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Obecné funkce

Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

Jazyk

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Blikající světlo

White Light

Schválení

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

Bezpečnost

UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

životní prostředí

CE-RoHS: 2011/65/EU

Ochrana

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Antikorozní ochrana

-Y: NEMA 4X (NEMA 250-2018)

Kamera

Senzor obrazu1/1.8" Progressive Scan CMOS
Max. rozlišení2688 × 1520
Min. osvětleníColor: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
Čas závěrky1 s to 1/100,000 s
Den & NocIR cut filter
Nastavení úhluPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Objektiv

Typ objektivuFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5° 4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
Držák objektivuM16
Iris TypeFixed
ClonaF1.0
Depth of Field2.8 mm: 2.5 m to ∞ 4 mm: 3.1 m to ∞

DORI

DORI2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Iluminátor

Doplňkový typ světlaIR,White Light
Doplňte rozsah světlaUp to 60 m
Chytré doplňkové světloYes
IR Wavelength850 nm

HEOP

Open ResourcesMemory: 60 MB, Smart RAM: 450 MB, eMMC: 2 GB
Computing Power1.5 TOPS
Open CapabilityHEOP 2.0 OpendevSDK
Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
Programming LanguageC,C++

Video

Hlavní proud50 Hz: 25 fps (2688 × 1520) 60 Hz: 30 fps (2688 × 1520) 50 Hz: 50 fps (1920 × 1080, 1280 × 720) 60 Hz: 60 fps (1920 × 1080, 1280 × 720)
Vedlejší stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Třetí proud50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *The third stream is supported under certain settings.
Čtvrtý proud50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
Video kompreseMain stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG,
Přenosová rychlost videa32 Kbps to 8 Mbps
H.264 typBaseline Profile,Main Profile,High Profile
H.265 typMain Profile
Řízení bitové rychlostiCBR,VBR
Škálovatelné kódování videa (SVC)H.264 and H.265 encoding
Oblast zájmu (ROI) 5 fixed regions for main stream and sub-stream
e-PTZSupport Patrol and Auto Tracking settings

Zvuk

Typ zvukuMono sound
Audio kompreseG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Přenosová rychlost zvuku64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Míra audio vzorů8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředíYes

Síť

ProtokolyTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Současný živý náhledUp to 6 channels
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Uživatel/hostitelUp to 32 users 3 user levels: administrator, operator, and user
BezpečnostPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Síťové úložištěNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
KlientiVMS-4200,Hik-Connect,Hik-Central
Webový prohlížečPlug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+ Local service: Chrome 91+, Firefox 88+, Edge 91+

Obraz

Přepínač parametrů obrazuYes
Nastavení obrazuRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Přepínač den/nocDay,Night,Auto,Schedule
Vylepšení obrazuBLC,HLC,3D DNR,Distortion Correction,Defog
SNR≥ 52 dB
Wide Dynamic Range (WDR)130 dB
Image StabilizationEIS
Maska ochrany osobních údajů8 programmable polygon privacy masks

Rozhraní

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Vestavěný reproduktorMax. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
ZvukBuilt-in Microphone: Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Reset KeyYes
Výstupní výkon12 VDC, max. 100 mA

Událost

Základní událostMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Inteligentní událostScene change detection, audio exception detection, defocus detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light

Deep Learning Function

Zachycení obličejeYes
Počítání lidíYes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Všeobecné

Napájení12 VDC ± 25%, 1.41 A, max. 17 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
MateriálFront cover: metal, body: metal, bracket: Metal
Rozměry323.2 mm × 91.2 mm × 88.7 mm (12.72" × 3.59" × 3.49")
Rozměr balení386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
VáhaApprox. 1250 g (2.8 lb.)
S váhou baleníApprox. 1800 g (3.9 lb.)
Podmínky skladování-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Obecné funkceHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Jazyk33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Blikající světloWhite Light

Schválení

EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
BezpečnostUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
životní prostředíCE-RoHS: 2011/65/EU
OchranaIP67: IEC 60529-2013,IK10: IEC 62262:2002
Antikorozní ochrana-Y: NEMA 4X (NEMA 250-2018)
