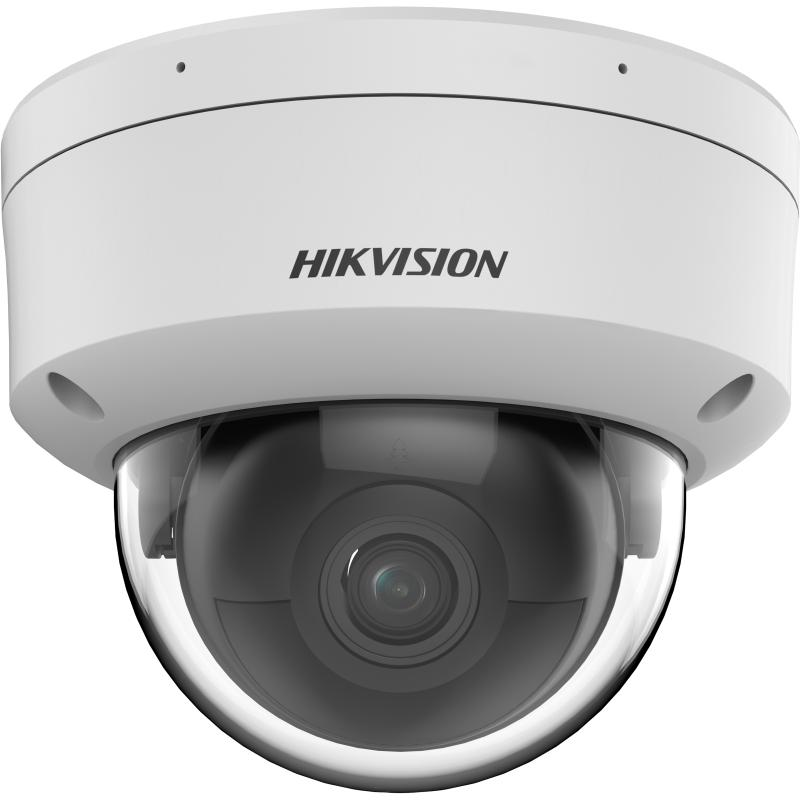

6 MP Vandal WDR Fixed Dome Network Camera

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Built-in arrayed dual-microphone for real-time high quality audio security
  • Water and dust resistant (IP67) and vandal-resistant (IK10)

View Less
View more
DS-2CD3163G2-I(S)U(B)
DS-2CD3163G2-I(S)U
Data Sheet
Sales Inquiry

Available models:

DS-2CD3163G2-ISU(2.8mm)(B)
DS-2CD3163G2-ISU(4mm)(B)

Available models:

DS-2CD3163G2-ISU(2.8mm)
DS-2CD3163G2-ISU(4mm)
DS-2CD3163G2-I(S)U
NEW
Data Sheet

Specifikace

  • Kamera
  • Senzor obrazu 1/2.5" Progressive Scan CMOS
  • Max. rozlišení 3200 × 1800
  • Min. osvětlení Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Čas závěrky 1/3 s to 1/100,000 s
  • Den & Noc IR cut filter
  • Nastavení úhlu Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Objektiv
  • Typ objektivu Fixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 104.6°, vertical FOV 54.9°, diagonal FOV 127.3° 4 mm, horizontal FOV 78.4°, vertical FOV 38.3°, diagonal FOV 96° 6 mm, horizontal FOV 50.5°, vertical FOV 26.3°, diagonal FOV 59.4°
  • Držák objektivu M12
  • Iris Type Fixed
  • Clona F1.6
  • Depth of Field 2.8 mm: 1.8 m to ∞ 4 mm: 3.1 m to ∞ 6 mm: 6.4 m to ∞
  • DORI
  • DORI 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m 6 mm, D: 164 m, O: 65 m, R: 32 m, I: 16 m
  • Iluminátor
  • Doplňkový typ světla IR
  • Doplňte rozsah světla Up to 40 m
  • Chytré doplňkové světlo Yes
  • IR Wavelength 850 nm
  • Video
  • Hlavní proud 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Vedlejší stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Třetí proud 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Čtvrtý proud 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
  • Video komprese Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
  • Přenosová rychlost videa 32 Kbps to 16 Mbps
  • H.264 typ Baseline Profile/Main Profile/High Profile
  • H.265 typ Main Profile
  • Škálovatelné kódování videa (SVC) H.264 and H.265 encoding
  • Řízení bitové rychlosti CBR,VBR
  • Oblast zájmu (ROI) 5 fixed regions for main stream and sub-stream
  • Oříznutí cíle Yes
  • Zvuk
  • Audio komprese G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Přenosová rychlost zvuku 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Míra audio vzorů 8 kHz/16 kHz/32 kHz/48 kHz
  • Filtrování šumu prostředí Yes
  • Síť
  • Protokoly TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Současný živý náhled Up to 6 channels
  • API ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
  • Bezpečnost Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Uživatel/hostitel Up to 32 users 3 user levels: administrator, operator, and user
  • Klient iVMS-4200, Hik-Connect, Hik-Central
  • Síťové úložiště NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Webový prohlížeč Plug-in required live view: IE11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
  • Obraz
  • Přepínač parametrů obrazu Yes
  • Přepínač den/noc Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR) 120 dB
  • SNR ≥ 52 dB
  • Vylepšení obrazu BLC, HLC, 3D DNR
  • Maska ochrany osobních údajů 8 programmable polygon privacy masks
  • Rozhraní
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Zvuk Built-in Microphone: Arrayed dual-microphone 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
  • Reset Key Yes
  • Událost
  • Základní událost Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Inteligentní událost Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis
  • Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
  • Deep Learning Function
  • Zachycení obličeje Yes
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Všeobecné
  • Napájení 12 VDC ± 25%, 0.7 A, max. 8.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10 W
  • Materiál Base: aluminum alloy, cover: aluminum alloy
  • Rozměry Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
  • Rozměr balení 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Váha Approx. 600 g (1.3 lb.)
  • S váhou balení Approx. 826 g (1.8 lb.)
  • Podmínky skladování -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Spuštění a provozní podmínky -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Jazyk 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Obecné funkce Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Schválení
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
  • Bezpečnost UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
  • životní prostředí CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Ochrana IP67: IEC 60529-2013,IK10: IEC 62262:2002
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specifikace

Kamera
Senzor obrazu
1/2.5" Progressive Scan CMOS
Max. rozlišení
3200 × 1800
Min. osvětlení
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Čas závěrky
1/3 s to 1/100,000 s
Den & Noc
IR cut filter
Nastavení úhlu
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Objektiv
Typ objektivu
Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 104.6°, vertical FOV 54.9°, diagonal FOV 127.3° 4 mm, horizontal FOV 78.4°, vertical FOV 38.3°, diagonal FOV 96° 6 mm, horizontal FOV 50.5°, vertical FOV 26.3°, diagonal FOV 59.4°
Držák objektivu
M12
Iris Type
Fixed
Clona
F1.6
Depth of Field
2.8 mm: 1.8 m to ∞ 4 mm: 3.1 m to ∞ 6 mm: 6.4 m to ∞
DORI
DORI
2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m 6 mm, D: 164 m, O: 65 m, R: 32 m, I: 16 m
Iluminátor
Doplňkový typ světla
IR
Doplňte rozsah světla
Up to 40 m
Chytré doplňkové světlo
Yes
IR Wavelength
850 nm
Video
Hlavní proud
50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Vedlejší stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Třetí proud
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Čtvrtý proud
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
Video komprese
Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
Přenosová rychlost videa
32 Kbps to 16 Mbps
H.264 typ
Baseline Profile/Main Profile/High Profile
H.265 typ
Main Profile
Škálovatelné kódování videa (SVC)
H.264 and H.265 encoding
Řízení bitové rychlosti
CBR,VBR
Oblast zájmu (ROI)
5 fixed regions for main stream and sub-stream
Oříznutí cíle
Yes
Zvuk
Audio komprese
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Přenosová rychlost zvuku
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Míra audio vzorů
8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředí
Yes
Síť
Protokoly
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Současný živý náhled
Up to 6 channels
API
ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
Bezpečnost
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Uživatel/hostitel
Up to 32 users 3 user levels: administrator, operator, and user
Klient
iVMS-4200, Hik-Connect, Hik-Central
Síťové úložiště
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Webový prohlížeč
Plug-in required live view: IE11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Obraz
Přepínač parametrů obrazu
Yes
Přepínač den/noc
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Vylepšení obrazu
BLC, HLC, 3D DNR
Maska ochrany osobních údajů
8 programmable polygon privacy masks
Rozhraní
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Zvuk
Built-in Microphone: Arrayed dual-microphone 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key
Yes
Událost
Základní událost
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Inteligentní událost
Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Deep Learning Function
Zachycení obličeje
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Všeobecné
Napájení
12 VDC ± 25%, 0.7 A, max. 8.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10 W
Materiál
Base: aluminum alloy, cover: aluminum alloy
Rozměry
Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Rozměr balení
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Váha
Approx. 600 g (1.3 lb.)
S váhou balení
Approx. 826 g (1.8 lb.)
Podmínky skladování
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Jazyk
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Obecné funkce
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Schválení
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Bezpečnost
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
životní prostředí
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Ochrana
IP67: IEC 60529-2013,IK10: IEC 62262:2002
