DS-2CD2786G2H-IPTRZS2U/S(L)(RB)

Global

Global - English

Asia

Europe

Oceania

ANZ - English

Latin America

North America

Middle East and Africa

NEW

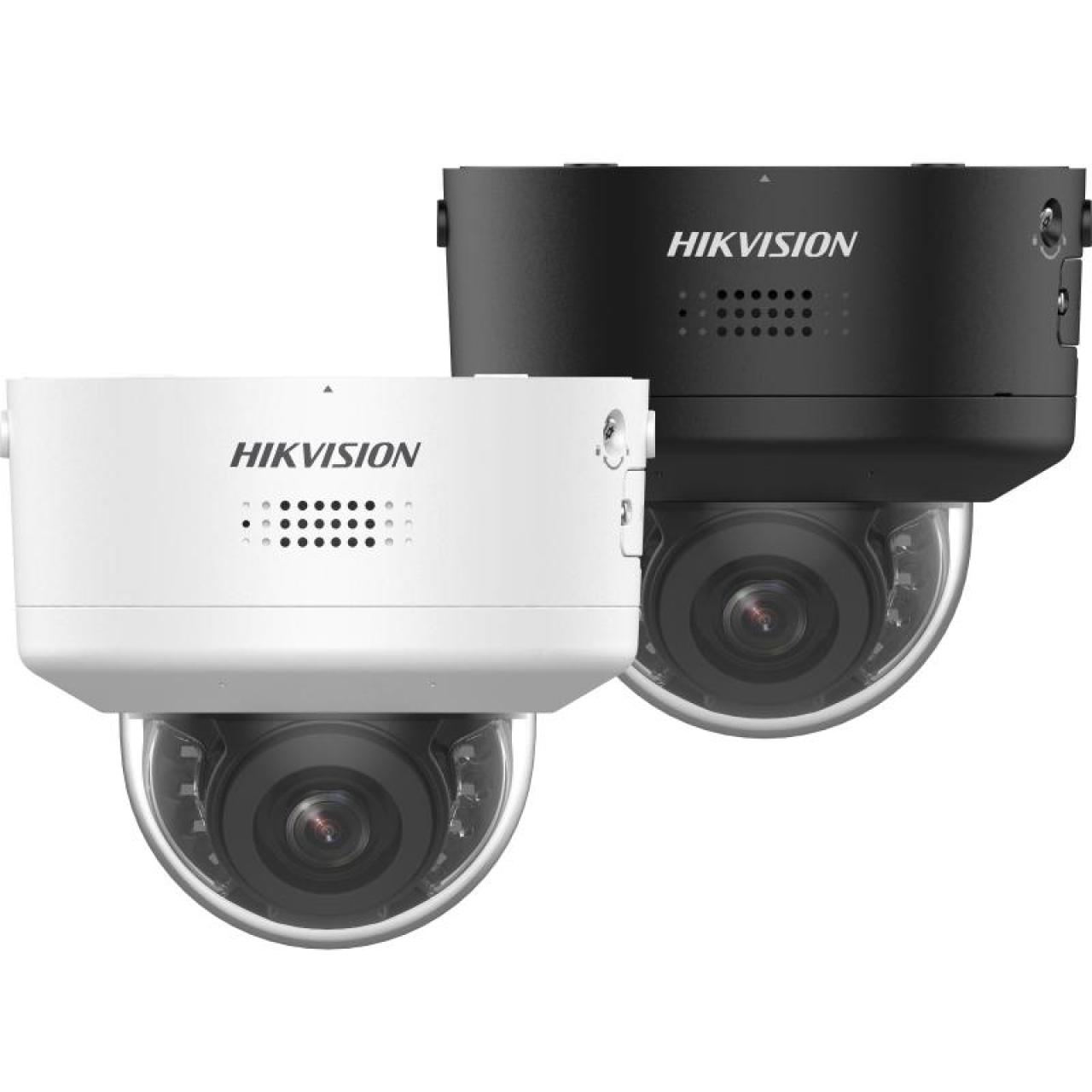

8 MP AcuSense PTRZ Varifocal Dome Network Camera

Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Human and vehicle classification based on deep learning
Water and dust resistant (IP66) and vandal resistant (IK10)
Audio and alarm interface available
Built-in arrayed dual-microphone for real-time high quality audio security
Active strobe light and audio alarm to warn intruders off

View Less

DS-2CD2786G2H-IPTRZS2U/SL

DS-2CD2786G2H-IPTRZS2U/SL (Black)

Data Sheet

Available models:

DS-2CD2786G2H-IPTRZS2U/SL(2.8-12mm)O-STD

Available models:

DS-2CD2786G2H-IPTRZS2U/SL(2.8-12)OSTDBLK

DS-2CD2786G2H-IPTRZS2U/S(L)(RB)

NEW

Specifikace
Resources
Příslušenství

Data Sheet

Kamera
Senzor obrazu 1/1.8" Progressive Scan CMOS
Max. rozlišení 3840 × 2160
Min. osvětlení Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Čas závěrky 1/3 s to 1/100,000 s
Den & Noc IR cut filter
Nastavení úhlu Remote adjustment (Max. 1,000 cycles) Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

Objektiv
Typ objektivu Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1°to 23.1°, diagonal FOV 137.4°to 47.3°
Držák objektivu Integrated
Iris Type Fixed
Clona Max. F1.2
Depth of Field 1 m to ∞

DORI
DORI Wide: D: 89 m, O: 35 m, R: 18 m, I: 9 m Tele: D: 220 m, O: 87 m, R: 44 m, I: 22 m

Iluminátor
Doplňkový typ světla IR
Doplňte rozsah světla Up to 40 m
Chytré doplňkové světlo Yes
IR Wavelength 850 nm

Video
Hlavní proud 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Vedlejší stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Třetí proud 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video komprese Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Přenosová rychlost videa 32 Kbps to 16 Mbps
H.264 typ Baseline Profile,Main Profile,High Profile
H.265 typ Main Profile
Řízení bitové rychlosti CBR,VBR
Škálovatelné kódování videa (SVC) H.264 and H.265 encoding
Oblast zájmu (ROI) 1 fixed region for main stream and sub-stream

Zvuk
Audio komprese G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Přenosová rychlost zvuku 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Míra audio vzorů 8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředí Yes

Síť
Protokoly TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Současný živý náhled Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Uživatel/hostitel Up to 32 users 3 user levels: administrator, operator, and user
Bezpečnost Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Síťové úložiště NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Klient iVMS-4200,Hik-Connect,Hik-Central
Webový prohlížeč Plug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Obraz
Přepínač parametrů obrazu Yes
Nastavení obrazu Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Přepínač den/noc Day,Night,Auto,Schedule
Vylepšení obrazu BLC,HLC,3D DNR
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB
Maska ochrany osobních údajů 4 programmable polygon privacy masks

Rozhraní
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Vestavěný reproduktor 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Zvuk Built-in Microphone: Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes

Událost
Základní událost Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Inteligentní událost scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing

Deep Learning Function
Zachycení obličeje Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Všeobecné
Napájení 12 VDC ± 25%, 1.35 A, max. 16 W,reverse polarity protection,two-core terminal block, PoE: IEEE 802.3at, Class 4, max. 18 W
Materiál Metal
Rozměry Ø155 mm × 140.4 mm (Ø6.10" × 5.53")
Rozměr balení 203 mm × 203 mm × 230 mm (8.0" × 8.0" × 9.1")
Váha Approx. 840 g (1.9 lb.)
S váhou balení Approx. 1450 g (3.2 lb.)
Podmínky skladování -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Obecné funkce Heartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log
Jazyk 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Blikající světlo White Light

Schválení
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, RCM: AS/NZS CISPR 32: 2015
Bezpečnost CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
životní prostředí CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Ochrana IK10: IEC 62262:2002,IP66: IEC 60529-2013

Kamera

Senzor obrazu

1/1.8" Progressive Scan CMOS

Max. rozlišení

3840 × 2160

Min. osvětlení

Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR

Čas závěrky

1/3 s to 1/100,000 s

Den & Noc

IR cut filter

Nastavení úhlu

Remote adjustment (Max. 1,000 cycles) Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

Objektiv

Typ objektivu

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1°to 23.1°, diagonal FOV 137.4°to 47.3°

Držák objektivu

Integrated

Iris Type

Fixed

Clona

Max. F1.2

Depth of Field

1 m to ∞

DORI

Wide: D: 89 m, O: 35 m, R: 18 m, I: 9 m Tele: D: 220 m, O: 87 m, R: 44 m, I: 22 m

Iluminátor

Doplňkový typ světla

Doplňte rozsah světla

Up to 40 m

Chytré doplňkové světlo

Yes

IR Wavelength

850 nm

Video

Hlavní proud

50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Vedlejší stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Třetí proud

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.

Video komprese

Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.

Přenosová rychlost videa

32 Kbps to 16 Mbps

H.264 typ

Baseline Profile,Main Profile,High Profile

H.265 typ

Main Profile

Řízení bitové rychlosti

CBR,VBR

Škálovatelné kódování videa (SVC)

H.264 and H.265 encoding

Oblast zájmu (ROI)

1 fixed region for main stream and sub-stream

Zvuk

Audio komprese

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Přenosová rychlost zvuku

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Míra audio vzorů

8 kHz/16 kHz/32 kHz/48 kHz

Filtrování šumu prostředí

Yes

Síť

Protokoly

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Současný živý náhled

Up to 6 channels

API

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

Uživatel/hostitel

Up to 32 users 3 user levels: administrator, operator, and user

Bezpečnost

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Síťové úložiště

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

Klient

iVMS-4200,Hik-Connect,Hik-Central

Webový prohlížeč

Plug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Obraz

Přepínač parametrů obrazu

Yes

Nastavení obrazu

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Přepínač den/noc

Day,Night,Auto,Schedule

Vylepšení obrazu

BLC,HLC,3D DNR

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

120 dB

Maska ochrany osobních údajů

4 programmable polygon privacy masks

Rozhraní

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Vestavěný reproduktor

1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.

Zvuk

Built-in Microphone: Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Reset Key

Yes

Událost

Základní událost

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Inteligentní událost

scene change detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing

Deep Learning Function

Zachycení obličeje

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Všeobecné

Napájení

12 VDC ± 25%, 1.35 A, max. 16 W,reverse polarity protection,two-core terminal block, PoE: IEEE 802.3at, Class 4, max. 18 W

Materiál

Metal

Rozměry

Ø155 mm × 140.4 mm (Ø6.10" × 5.53")

Rozměr balení

203 mm × 203 mm × 230 mm (8.0" × 8.0" × 9.1")

Váha

Approx. 840 g (1.9 lb.)

S váhou balení

Approx. 1450 g (3.2 lb.)

Podmínky skladování

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Spuštění a provozní podmínky

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Obecné funkce

Heartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log

Jazyk

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Blikající světlo

White Light

Schválení

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, RCM: AS/NZS CISPR 32: 2015

Bezpečnost

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

životní prostředí

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Ochrana

IK10: IEC 62262:2002,IP66: IEC 60529-2013
