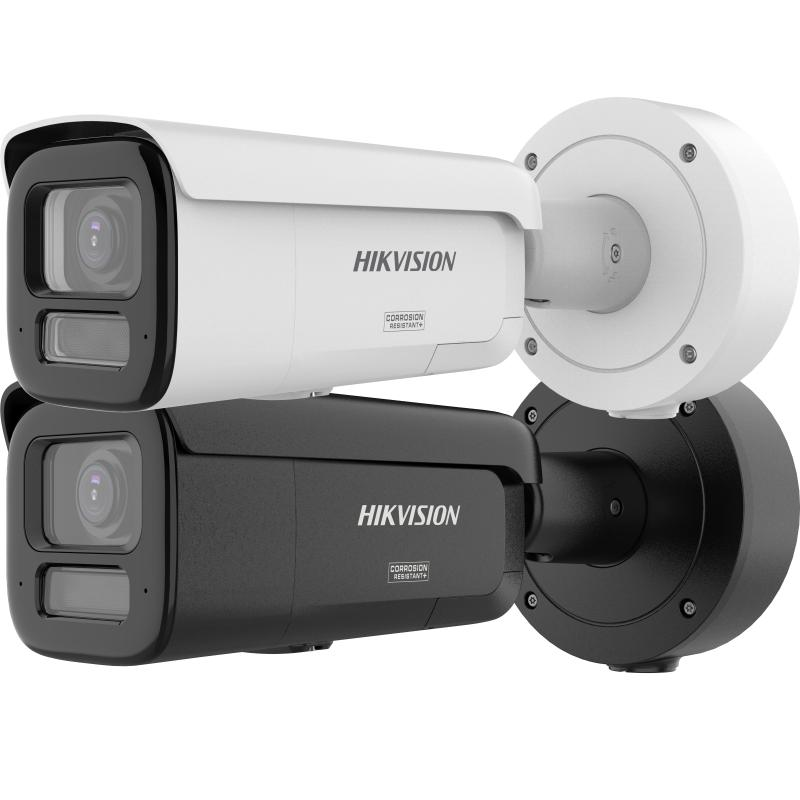

4 MP Smart Hybrid Light with ColorVu Motorized Varifocal Bullet Network Camera

  • HikAI-ISP for excellent noise reduction effect
  • 24/7 colorful imaging via ColorVu technology
  • Scene-adaptive WDR
  • Focus on Person and Vehicle classification based on deep learning
  • Built-in arrayed dual-microphone for real-time high quality audio security
  • Provide real-time security via built-in two-way audio
  • Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
  • Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • Active strobe light and audio alarm to warn intruders off

View Less
View more
DS-2CD2647G3-LIZS2UY/SL
DS-2CD2647G3-LIZS2UY/SL (Black)
Data Sheet
Sales Inquiry

Available models:

DS-2CD2647G3-LIZS2UY/SL(2.8-12mm)

Available models:

DS-2CD2647G3-LIZS2UY/SL(2.8-12mm)OSTDBLK
DS-2CD2647G3-LIZS2UY/S(L)(RB)
Data Sheet

Specifikace

  • Kamera
  • Senzor obrazu 1/1.8" Progressive Scan CMOS
  • Max. rozlišení 2688 × 1520
  • Min. osvětlení Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light
  • Čas závěrky 1 s to 1/100,000 s
  • Den & Noc IR cut filter
  • Nastavení úhlu Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Objektiv
  • Typ objektivu Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
  • Držák objektivu Integrated
  • Iris Type Fixed
  • Clona F1.2
  • Depth of Field 1 m to ∞
  • DORI
  • DORI Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m
  • Iluminátor
  • Doplňkový typ světla White Light,IR
  • Doplňte rozsah světla Up to 60 m
  • Chytré doplňkové světlo Yes
  • IR Wavelength 850 nm
  • Video
  • Hlavní proud 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Vedlejší stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Třetí proud 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Video komprese Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
  • Přenosová rychlost videa 32 Kbps to 8 Mbps
  • H.264 typ Baseline Profile,Main Profile,High Profile
  • H.265 typ Main Profile
  • Řízení bitové rychlosti CBR,VBR
  • Škálovatelné kódování videa (SVC) H.264 and H.265 encoding
  • Oblast zájmu (ROI) 1 fixed region for main stream
  • Zvuk
  • Audio komprese G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Typ zvuku Mono sound
  • Přenosová rychlost zvuku 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Míra audio vzorů 8 kHz/16 kHz/32 kHz/48 kHz
  • Filtrování šumu prostředí Yes
  • Síť
  • Protokoly TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Současný živý náhled Up to 6 channels
  • API ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
  • Uživatel/hostitel Up to 32 users 3 user levels: administrator, operator, and user
  • Bezpečnost Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Síťové úložiště NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Klient iVMS-4200,Hik-Connect,Hik-Central
  • Webový prohlížeč Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
  • Obraz
  • Přepínač parametrů obrazu Yes
  • Nastavení obrazu Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Přepínač den/noc Day,Night,Auto,Schedule
  • Vylepšení obrazu BLC,HLC,3D DNR,Distortion Correction,Defog
  • SNR ≥ 52 dB
  • Wide Dynamic Range (WDR) 130 dB
  • Image Stabilization EIS
  • Maska ochrany osobních údajů 4 programmable polygon privacy masks
  • Rozhraní
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Vestavěný reproduktor Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
  • Zvuk Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 2 input, 2 output (max. 24 VDC/24 VAC, 1 A)
  • Reset Key Yes
  • Událost
  • Základní událost Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Inteligentní událost Scene change detection
  • Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output,strobe light flashing
  • Deep Learning Function
  • Zachycení obličeje Yes
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Všeobecné
  • Napájení 12 VDC ± 25%, 1.21 A, max. 14.5 W,Two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
  • Materiál Front cover: Metal, body: Metal, bracket: Metal
  • Rozměry Ø140 mm × 333.8 mm (Ø5.51" × 13.14")
  • Rozměr balení 386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
  • Váha Approx. 1555 g (3.4 lb.)
  • S váhou balení Approx. 2326 g (5.1 lb.)
  • Podmínky skladování -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Spuštění a provozní podmínky -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Obecné funkce Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Jazyk 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Blikající světlo /SRB model: Red and Blue Light /SL model: White Light
  • Schválení
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • Bezpečnost UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • životní prostředí CE-RoHS: 2011/65/EU
  • Ochrana IP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Antikorozní ochrana NEMA 4X (NEMA 250-2018)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specifikace

Kamera
Senzor obrazu
1/1.8" Progressive Scan CMOS
Max. rozlišení
2688 × 1520
Min. osvětlení
Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light
Čas závěrky
1 s to 1/100,000 s
Den & Noc
IR cut filter
Nastavení úhlu
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Objektiv
Typ objektivu
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
Držák objektivu
Integrated
Iris Type
Fixed
Clona
F1.2
Depth of Field
1 m to ∞
DORI
DORI
Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m
Iluminátor
Doplňkový typ světla
White Light,IR
Doplňte rozsah světla
Up to 60 m
Chytré doplňkové světlo
Yes
IR Wavelength
850 nm
Video
Hlavní proud
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Vedlejší stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Třetí proud
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video komprese
Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Přenosová rychlost videa
32 Kbps to 8 Mbps
H.264 typ
Baseline Profile,Main Profile,High Profile
H.265 typ
Main Profile
Řízení bitové rychlosti
CBR,VBR
Škálovatelné kódování videa (SVC)
H.264 and H.265 encoding
Oblast zájmu (ROI)
1 fixed region for main stream
Zvuk
Audio komprese
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Typ zvuku
Mono sound
Přenosová rychlost zvuku
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Míra audio vzorů
8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředí
Yes
Síť
Protokoly
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Současný živý náhled
Up to 6 channels
API
ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
Uživatel/hostitel
Up to 32 users 3 user levels: administrator, operator, and user
Bezpečnost
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Síťové úložiště
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Klient
iVMS-4200,Hik-Connect,Hik-Central
Webový prohlížeč
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
Obraz
Přepínač parametrů obrazu
Yes
Nastavení obrazu
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Přepínač den/noc
Day,Night,Auto,Schedule
Vylepšení obrazu
BLC,HLC,3D DNR,Distortion Correction,Defog
SNR
≥ 52 dB
Wide Dynamic Range (WDR)
130 dB
Image Stabilization
EIS
Maska ochrany osobních údajů
4 programmable polygon privacy masks
Rozhraní
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Vestavěný reproduktor
Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
Zvuk
Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
2 input, 2 output (max. 24 VDC/24 VAC, 1 A)
Reset Key
Yes
Událost
Základní událost
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Inteligentní událost
Scene change detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output,strobe light flashing
Deep Learning Function
Zachycení obličeje
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Všeobecné
Napájení
12 VDC ± 25%, 1.21 A, max. 14.5 W,Two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
Materiál
Front cover: Metal, body: Metal, bracket: Metal
Rozměry
Ø140 mm × 333.8 mm (Ø5.51" × 13.14")
Rozměr balení
386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Váha
Approx. 1555 g (3.4 lb.)
S váhou balení
Approx. 2326 g (5.1 lb.)
Podmínky skladování
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Obecné funkce
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Jazyk
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Blikající světlo
/SRB model: Red and Blue Light /SL model: White Light
Schválení
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Bezpečnost
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
životní prostředí
CE-RoHS: 2011/65/EU
Ochrana
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Antikorozní ochrana
NEMA 4X (NEMA 250-2018)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.8.10_250123
Aplikováno na:
DS-2CD2647G3-LIZS2UY/SL(2.8-12mm)

Specifikace

  • Kamera
  • Senzor obrazu 1/1.8" Progressive Scan CMOS
  • Max. rozlišení 2688 × 1520
  • Min. osvětlení Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light
  • Čas závěrky 1 s to 1/100,000 s
  • Den & Noc IR cut filter
  • Nastavení úhlu Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Objektiv
  • Typ objektivu Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
  • Držák objektivu Integrated
  • Iris Type Fixed
  • Clona F1.2
  • Depth of Field 1 m to ∞
  • DORI
  • DORI Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m
  • Iluminátor
  • Doplňkový typ světla White Light,IR
  • Doplňte rozsah světla Up to 60 m
  • Chytré doplňkové světlo Yes
  • IR Wavelength 850 nm
  • Video
  • Hlavní proud 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Vedlejší stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Třetí proud 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Video komprese Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
  • Přenosová rychlost videa 32 Kbps to 8 Mbps
  • H.264 typ Baseline Profile,Main Profile,High Profile
  • H.265 typ Main Profile
  • Řízení bitové rychlosti CBR,VBR
  • Škálovatelné kódování videa (SVC) H.264 and H.265 encoding
  • Oblast zájmu (ROI) 1 fixed region for main stream
  • Zvuk
  • Audio komprese G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Typ zvuku Mono sound
  • Přenosová rychlost zvuku 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Míra audio vzorů 8 kHz/16 kHz/32 kHz/48 kHz
  • Filtrování šumu prostředí Yes
  • Síť
  • Protokoly TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Současný živý náhled Up to 6 channels
  • API ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
  • Uživatel/hostitel Up to 32 users 3 user levels: administrator, operator, and user
  • Bezpečnost Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Síťové úložiště NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Klient iVMS-4200,Hik-Connect,Hik-Central
  • Webový prohlížeč Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
  • Obraz
  • Přepínač parametrů obrazu Yes
  • Nastavení obrazu Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Přepínač den/noc Day,Night,Auto,Schedule
  • Vylepšení obrazu BLC,HLC,3D DNR,Distortion Correction,Defog
  • SNR ≥ 52 dB
  • Wide Dynamic Range (WDR) 130 dB
  • Image Stabilization EIS
  • Maska ochrany osobních údajů 4 programmable polygon privacy masks
  • Rozhraní
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Vestavěný reproduktor Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
  • Zvuk Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 2 input, 2 output (max. 24 VDC/24 VAC, 1 A)
  • Reset Key Yes
  • Událost
  • Základní událost Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Inteligentní událost Scene change detection
  • Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output,strobe light flashing
  • Deep Learning Function
  • Zachycení obličeje Yes
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Všeobecné
  • Napájení 12 VDC ± 25%, 1.21 A, max. 14.5 W,Two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
  • Materiál Front cover: Metal, body: Metal, bracket: Metal
  • Rozměry Ø140 mm × 333.8 mm (Ø5.51" × 13.14")
  • Rozměr balení 386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
  • Váha Approx. 1555 g (3.4 lb.)
  • S váhou balení Approx. 2326 g (5.1 lb.)
  • Podmínky skladování -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Spuštění a provozní podmínky -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Obecné funkce Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Jazyk 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Blikající světlo /SRB model: Red and Blue Light /SL model: White Light
  • Schválení
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • Bezpečnost UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • životní prostředí CE-RoHS: 2011/65/EU
  • Ochrana IP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Antikorozní ochrana NEMA 4X (NEMA 250-2018)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specifikace

Kamera
Senzor obrazu
1/1.8" Progressive Scan CMOS
Max. rozlišení
2688 × 1520
Min. osvětlení
Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light
Čas závěrky
1 s to 1/100,000 s
Den & Noc
IR cut filter
Nastavení úhlu
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Objektiv
Typ objektivu
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
Držák objektivu
Integrated
Iris Type
Fixed
Clona
F1.2
Depth of Field
1 m to ∞
DORI
DORI
Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m
Iluminátor
Doplňkový typ světla
White Light,IR
Doplňte rozsah světla
Up to 60 m
Chytré doplňkové světlo
Yes
IR Wavelength
850 nm
Video
Hlavní proud
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Vedlejší stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Třetí proud
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video komprese
Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Přenosová rychlost videa
32 Kbps to 8 Mbps
H.264 typ
Baseline Profile,Main Profile,High Profile
H.265 typ
Main Profile
Řízení bitové rychlosti
CBR,VBR
Škálovatelné kódování videa (SVC)
H.264 and H.265 encoding
Oblast zájmu (ROI)
1 fixed region for main stream
Zvuk
Audio komprese
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Typ zvuku
Mono sound
Přenosová rychlost zvuku
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Míra audio vzorů
8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředí
Yes
Síť
Protokoly
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Současný živý náhled
Up to 6 channels
API
ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
Uživatel/hostitel
Up to 32 users 3 user levels: administrator, operator, and user
Bezpečnost
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Síťové úložiště
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Klient
iVMS-4200,Hik-Connect,Hik-Central
Webový prohlížeč
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
Obraz
Přepínač parametrů obrazu
Yes
Nastavení obrazu
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Přepínač den/noc
Day,Night,Auto,Schedule
Vylepšení obrazu
BLC,HLC,3D DNR,Distortion Correction,Defog
SNR
≥ 52 dB
Wide Dynamic Range (WDR)
130 dB
Image Stabilization
EIS
Maska ochrany osobních údajů
4 programmable polygon privacy masks
Rozhraní
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Vestavěný reproduktor
Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
Zvuk
Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
2 input, 2 output (max. 24 VDC/24 VAC, 1 A)
Reset Key
Yes
Událost
Základní událost
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Inteligentní událost
Scene change detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output,strobe light flashing
Deep Learning Function
Zachycení obličeje
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Všeobecné
Napájení
12 VDC ± 25%, 1.21 A, max. 14.5 W,Two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
Materiál
Front cover: Metal, body: Metal, bracket: Metal
Rozměry
Ø140 mm × 333.8 mm (Ø5.51" × 13.14")
Rozměr balení
386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Váha
Approx. 1555 g (3.4 lb.)
S váhou balení
Approx. 2326 g (5.1 lb.)
Podmínky skladování
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Obecné funkce
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Jazyk
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Blikající světlo
/SRB model: Red and Blue Light /SL model: White Light
Schválení
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Bezpečnost
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
životní prostředí
CE-RoHS: 2011/65/EU
Ochrana
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Antikorozní ochrana
NEMA 4X (NEMA 250-2018)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.8.10_250123
Aplikováno na:
DS-2CD2647G3-LIZS2UY/SL(2.8-12mm)OSTDBLK

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics and tailor our website’s content. For more information on cookie practices please refer to our cookie policy.

Manage Cookies Reject all Accept
Accept
Reject all Manage Cookies
Prodej
Technická podpora
Odběr newsletteru
Online podpora
Kde nakupovat
Jiné
Kontakt
Hik-Partner Pro close
Hik-Partner Pro
Security Business Assistant. At Your Fingertips. Learn more
Hik-Partner Pro
Scan and download the app
Download
Hik-Partner Pro
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
