DS-2CD2623G2-IZS

NEW

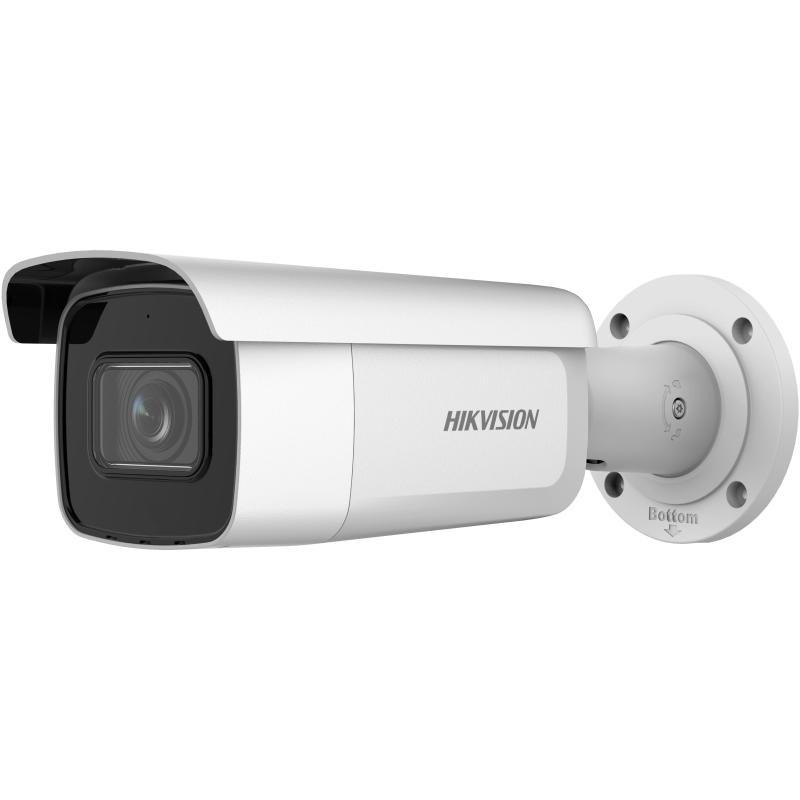

2 MP AcuSense Motorized Varifocal Bullet Network Camera

High quality imaging with 2 MP resolution
Motorized varifocal lens for easy installation and monitoring
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant (IP67) and vandal resistant (IK10)

View Less

DS-2CD2623G2-IZS (D)

Available models:

DS-2CD2623G2-IZS(2.8-12mm)(D)

Kamera
Senzor obrazu 1/2.8" Progressive Scan CMOS
Max. rozlišení 1920 × 1080
Min. osvětlení Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Čas závěrky 1/3 s to 1/100,000 s
Den & Noc IR cut filter
Nastavení úhlu Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Objektiv
Depth of Field 0.5 m to ∞
Focal Length & FOV 2.8 to 12 mm, horizontal FOV107° to 32°, vertical FOV 55° to 18°, diagonal FOV 130° to 36°
Clona F1.6
Držák objektivu Ø14
Typ objektivu Varifocal lens, motorized lens, 2.8 to 12 mm
Iris Type Fixed

DORI
DORI 2.8 to 12 mm: Wide: D: 45.5m, O: 18.1m, R: 9.1m, I: 4.6m Tele: D: 137.9m, O: 54.7m, R: 27.6m, I: 13.8m

Iluminátor
IR Wavelength 850 nm
Doplňkový typ světla IR
Doplňte rozsah světla Up to 60 m
Chytré doplňkové světlo Yes

Video
Hlavní proud 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Vedlejší stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Třetí proud 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video komprese Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Přenosová rychlost videa 32 Kbps to 8 Mbps
H.264 typ Baseline Profile,Main Profile,High Profile
H.265 typ Main Profile
Řízení bitové rychlosti CBR,VBR
Škálovatelné kódování videa (SVC) H.264 and H.265 encoding
Oblast zájmu (ROI) 1 fixed region(s) for main stream and sub-stream

Zvuk
Typ zvuku Mono sound
Filtrování šumu prostředí Yes
Míra audio vzorů 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio komprese G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Přenosová rychlost zvuku 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Síť
Současný živý náhled Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
Protokoly TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Uživatel/hostitel Up to 32 users 3 user levels: administrator, operator, and user
Bezpečnost Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
Síťové úložiště NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Klient iVMS-4200,Hik-Connect,Hik-Central
Webový prohlížeč Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+

Obraz
Maska ochrany osobních údajů Yes
Přepínač den/noc Day,Night,Auto,Schedule
Vylepšení obrazu BLC,HLC,3D DNR
Přepínač parametrů obrazu Yes
Nastavení obrazu Rotate mode,mirror, privacy mask,saturation,brightness,contrast,gain,white balance,adjustable by client software or web browser
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB

Rozhraní
Alarm 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
Zvuk 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Reset Key Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Událost
Základní událost Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Inteligentní událost Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))
Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,trigger alarm output,audible warning

Deep Learning Function
Zachycení obličeje Yes

Všeobecné
Napájení 12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
Obecné funkce Anti-flicker,heartbeat,password reset via email,pixel counter
Podmínky skladování -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Materiál Aluminum alloy body
Rozměry 308.5 mm × 97.9 mm × 93 mm (12.2" × 3.9" × 3.7")
Rozměr balení 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Váha Approx. 1440 g (3.2 lb.)
S váhou balení Approx. 2506 g (5.5 lb.)
Jazyk 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Schválení
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Bezpečnost UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
životní prostředí CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Ochrana IP67: IEC 60529-2013;IK10: IEC 62262:2002

Specifikace

Kamera

Senzor obrazu

1/2.8" Progressive Scan CMOS

Max. rozlišení

1920 × 1080

Min. osvětlení

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Čas závěrky

1/3 s to 1/100,000 s

Den & Noc

IR cut filter

Nastavení úhlu

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Objektiv

Depth of Field

0.5 m to ∞

Focal Length & FOV

2.8 to 12 mm, horizontal FOV107° to 32°, vertical FOV 55° to 18°, diagonal FOV 130° to 36°

Clona

F1.6

Držák objektivu

Ø14

Typ objektivu

Varifocal lens, motorized lens, 2.8 to 12 mm

Iris Type

Fixed

DORI

2.8 to 12 mm: Wide: D: 45.5m, O: 18.1m, R: 9.1m, I: 4.6m Tele: D: 137.9m, O: 54.7m, R: 27.6m, I: 13.8m

Iluminátor

IR Wavelength

850 nm

Doplňkový typ světla

Doplňte rozsah světla

Up to 60 m

Chytré doplňkové světlo

Yes

Video

Hlavní proud

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Vedlejší stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Třetí proud

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video komprese

Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264

Přenosová rychlost videa

32 Kbps to 8 Mbps

H.264 typ

Baseline Profile,Main Profile,High Profile

H.265 typ

Main Profile

Řízení bitové rychlosti

CBR,VBR

Škálovatelné kódování videa (SVC)

H.264 and H.265 encoding

Oblast zájmu (ROI)

1 fixed region(s) for main stream and sub-stream

Zvuk

Typ zvuku

Mono sound

Filtrování šumu prostředí

Yes

Míra audio vzorů

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio komprese

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Přenosová rychlost zvuku

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Síť

Současný živý náhled

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK

Protokoly

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

Uživatel/hostitel

Up to 32 users 3 user levels: administrator, operator, and user

Bezpečnost

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)

Síťové úložiště

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

Klient

iVMS-4200,Hik-Connect,Hik-Central

Webový prohlížeč

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+

Obraz

Maska ochrany osobních údajů

Yes

Přepínač den/noc

Day,Night,Auto,Schedule

Vylepšení obrazu

BLC,HLC,3D DNR

Přepínač parametrů obrazu

Yes

Nastavení obrazu

Rotate mode,mirror, privacy mask,saturation,brightness,contrast,gain,white balance,adjustable by client software or web browser

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Rozhraní

Alarm

1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)

Zvuk

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

On-Board Storage

Built-in memory card slot, support microSD card, up to 256 GB

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Událost

Základní událost

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Inteligentní událost

Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,trigger alarm output,audible warning

Deep Learning Function

Zachycení obličeje

Yes

Všeobecné

Napájení

12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W

Obecné funkce

Anti-flicker,heartbeat,password reset via email,pixel counter

Podmínky skladování

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Spuštění a provozní podmínky

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Materiál

Aluminum alloy body

Rozměry

308.5 mm × 97.9 mm × 93 mm (12.2" × 3.9" × 3.7")

Rozměr balení

385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")

Váha

Approx. 1440 g (3.2 lb.)

S váhou balení

Approx. 2506 g (5.5 lb.)

Jazyk

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Schválení

EMC

FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

Bezpečnost

UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

životní prostředí

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Ochrana

IP67: IEC 60529-2013;IK10: IEC 62262:2002
