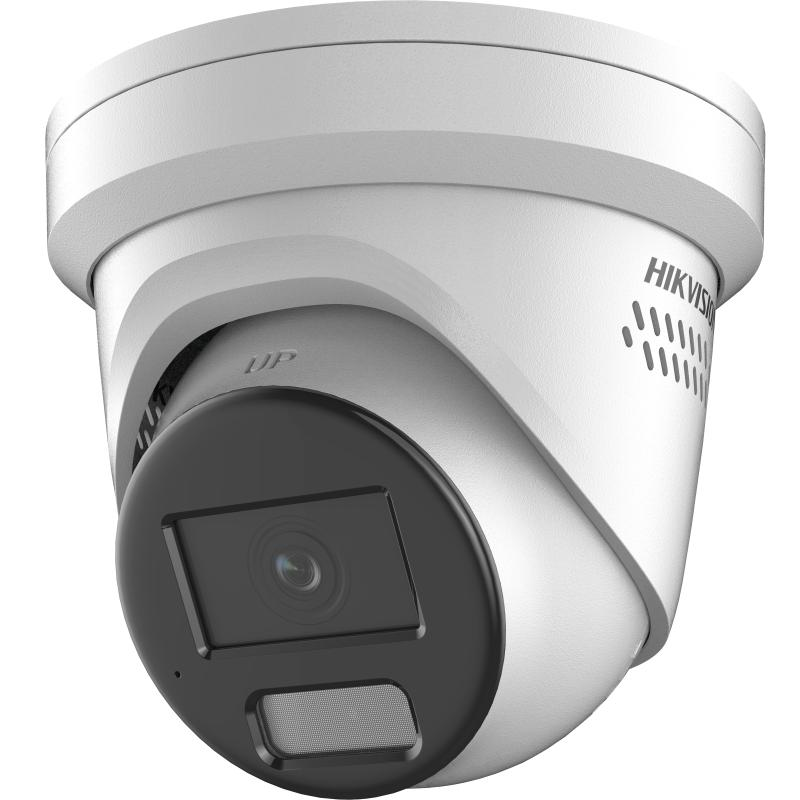

6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera

  • High quality imaging with 6 MP resolution
  • Smart Hybrid Light: advanced technology with long range
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle classification based on deep learning
  • Provide real-time security via built-in two-way audio
  • Active strobe light and audio alarm to warn intruders off
  • Support on-board storage up to 512 GB (SD card slot)
  • Water and dust resistant (IP67)
  • Audio and alarm interface available

View Less
View more
DS-2CD2367G2H-LISU/SL
DS-2CD2367G2H-LISU/SL (Black)
Data Sheet
Sales Inquiry

Available models:

DS-2CD2367G2H-LISU/SL(2.8mm)(eF)
DS-2CD2367G2H-LISU/SL(4mm)(eF)

Available models:

DS-2CD2367G2H-LISU/SL(2.8)/eF/O-STD/BLK
DS-2CD2367G2H-LISU/SL
Data Sheet

Specifikace

  • Kamera
  • Senzor obrazu 1/1.8" Progressive Scan CMOS
  • Max. rozlišení 3200 × 1800
  • Min. osvětlení Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Čas závěrky 1/3 s to 1/100,000 s
  • Den & Noc IR cut filter
  • Nastavení úhlu Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Objektiv
  • Typ objektivu Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
  • Držák objektivu M16
  • Iris Type Fixed
  • Clona F1.0
  • Depth of Field 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞
  • DORI
  • DORI 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
  • Iluminátor
  • Doplňkový typ světla IR,White Light
  • Doplňte rozsah světla Up to 30 m
  • Chytré doplňkové světlo Yes
  • IR Wavelength 850 nm
  • Video
  • Hlavní proud 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Vedlejší stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Třetí proud 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Video komprese Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
  • Přenosová rychlost videa 32 Kbps to 16 Mbps
  • H.264 typ Baseline Profile,Main Profile,High Profile
  • H.265 typ Main Profile
  • Řízení bitové rychlosti CBR,VBR
  • Škálovatelné kódování videa (SVC) H.264 and H.265 encoding
  • Oblast zájmu (ROI) 1 fixed region for main stream and sub-stream
  • Zvuk
  • Audio komprese G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Typ zvuku Mono sound
  • Přenosová rychlost zvuku 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Míra audio vzorů 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Filtrování šumu prostředí Yes
  • Síť
  • Protokoly TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Současný živý náhled Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • Uživatel/hostitel Up to 32 users 3 user levels: administrator, operator, and user
  • Bezpečnost Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Síťové úložiště NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Klient iVMS-4200,Hik-Connect
  • Webový prohlížeč Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Obraz
  • Přepínač parametrů obrazu Yes
  • Nastavení obrazu Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Přepínač den/noc Day,Night,Auto,Schedule
  • Vylepšení obrazu BLC,HLC,3D DNR,Defog
  • SNR ≥ 52 dB
  • Wide Dynamic Range (WDR) 130 dB
  • Maska ochrany osobních údajů 4 programmable polygon privacy masks
  • Rozhraní
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Zabudovaný mikrofon Yes,1 built-in microphone
  • Vestavěný reproduktor Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
  • Zvuk 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset Key Yes
  • Událost
  • Základní událost Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
  • Inteligentní událost Scene change detection
  • Deep Learning Function
  • Zachycení obličeje Yes
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Všeobecné
  • Napájení 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
  • Materiál Cover: metal, main body: metal
  • Rozměry Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
  • Rozměr balení 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
  • Váha Approx. 820 g (1.8 lb.)
  • S váhou balení Approx. 1316 g (2.9 lb.)
  • Podmínky skladování -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Spuštění a provozní podmínky -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Obecné funkce Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Jazyk 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Schválení
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • Bezpečnost UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • životní prostředí CE-RoHS: 2011/65/EU
  • Ochrana IP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specifikace

Kamera
Senzor obrazu
1/1.8" Progressive Scan CMOS
Max. rozlišení
3200 × 1800
Min. osvětlení
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Čas závěrky
1/3 s to 1/100,000 s
Den & Noc
IR cut filter
Nastavení úhlu
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Objektiv
Typ objektivu
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
Držák objektivu
M16
Iris Type
Fixed
Clona
F1.0
Depth of Field
2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞
DORI
DORI
2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
Iluminátor
Doplňkový typ světla
IR,White Light
Doplňte rozsah světla
Up to 30 m
Chytré doplňkové světlo
Yes
IR Wavelength
850 nm
Video
Hlavní proud
50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Vedlejší stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Třetí proud
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video komprese
Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Přenosová rychlost videa
32 Kbps to 16 Mbps
H.264 typ
Baseline Profile,Main Profile,High Profile
H.265 typ
Main Profile
Řízení bitové rychlosti
CBR,VBR
Škálovatelné kódování videa (SVC)
H.264 and H.265 encoding
Oblast zájmu (ROI)
1 fixed region for main stream and sub-stream
Zvuk
Audio komprese
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Typ zvuku
Mono sound
Přenosová rychlost zvuku
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Míra audio vzorů
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtrování šumu prostředí
Yes
Síť
Protokoly
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Současný živý náhled
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Uživatel/hostitel
Up to 32 users 3 user levels: administrator, operator, and user
Bezpečnost
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Síťové úložiště
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Klient
iVMS-4200,Hik-Connect
Webový prohlížeč
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Obraz
Přepínač parametrů obrazu
Yes
Nastavení obrazu
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Přepínač den/noc
Day,Night,Auto,Schedule
Vylepšení obrazu
BLC,HLC,3D DNR,Defog
SNR
≥ 52 dB
Wide Dynamic Range (WDR)
130 dB
Maska ochrany osobních údajů
4 programmable polygon privacy masks
Rozhraní
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Zabudovaný mikrofon
Yes,1 built-in microphone
Vestavěný reproduktor
Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
Zvuk
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key
Yes
Událost
Základní událost
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
Inteligentní událost
Scene change detection
Deep Learning Function
Zachycení obličeje
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Všeobecné
Napájení
12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
Materiál
Cover: metal, main body: metal
Rozměry
Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Rozměr balení
170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Váha
Approx. 820 g (1.8 lb.)
S váhou balení
Approx. 1316 g (2.9 lb.)
Podmínky skladování
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Obecné funkce
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Jazyk
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Schválení
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Bezpečnost
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
životní prostředí
CE-RoHS: 2011/65/EU
Ochrana
IP67: IEC 60529-2013
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240826
Network Camera-V5.7.18 240826 Release Note-G5
Aplikováno na:
DS-2CD2367G2H-LISU/SL(2.8mm)(eF)
DS-2CD2367G2H-LISU/SL(4mm)(eF)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240826
Network Camera-V5.7.18 240826 Release Note-G5
Aplikováno na:
DS-2CD2367G2H-LISU/SL(2.8)/eF/O-STD/BLK
