NEW

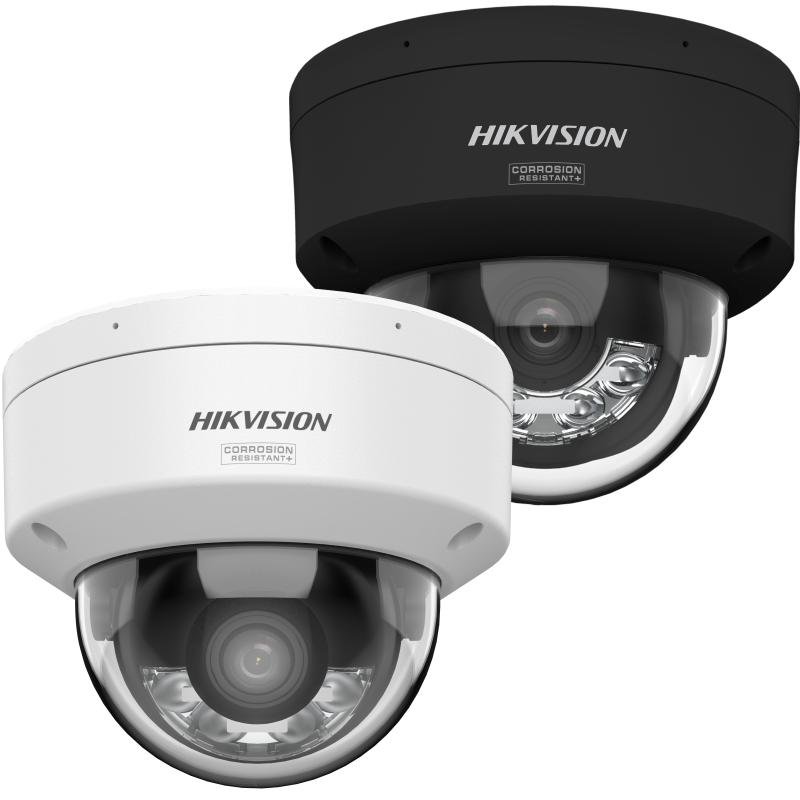

8 MP Smart Hybrid Light with ColorVu Fixed Mini Dome Network Camera

  • HikAI-ISP for excellent noise reduction effect
  • 24/7 colorful imaging via ColorVu technology
  • Focus on Person and Vehicle classification based on deep learning
  • Scene-adaptive WDR
  • -S2U: Built-in arrayed dual-microphone for real-time high quality audio security
  • Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
  • Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
  • Water and dust resistant (IP67) and vandal-resistant (IK10)

View Less
View more
DS-2CD2187G3-LIS2UY
DS-2CD2187G3-LIS2UY (Black)
Data Sheet
Sales Inquiry

Available models:

DS-2CD2187G3-LIS2UY(2.8mm)
DS-2CD2187G3-LIS2UY(4mm)

Available models:

DS-2CD2187G3-LIS2UY(2.8mm)(BLACK)
DS-2CD2187G3-LI(S2U)Y NEW
Data Sheet

Specifikace

  • Kamera
  • Senzor obrazu 1/1.8" Progressive Scan CMOS
  • Max. rozlišení 3840 × 2160
  • Min. osvětlení Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Čas závěrky 1 s to 1/100,000 s
  • Den & Noc IR cut filter
  • Nastavení úhlu Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Objektiv
  • Typ objektivu Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
  • Držák objektivu M16
  • Iris Type Fixed
  • Clona F1.0
  • Depth of Field 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞
  • DORI
  • DORI 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
  • Iluminátor
  • Doplňkový typ světla White Light,IR
  • Doplňte rozsah světla Up to 30 m
  • Chytré doplňkové světlo Yes
  • IR Wavelength 850 nm
  • Video
  • Hlavní proud 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Vedlejší stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Třetí proud 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Video komprese Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
  • Přenosová rychlost videa 32 Kbps to 16 Mbps
  • H.264 typ Baseline Profile,Main Profile,High Profile
  • H.265 typ Main Profile
  • Řízení bitové rychlosti CBR,VBR
  • Škálovatelné kódování videa (SVC) H.264 and H.265 encoding
  • Oblast zájmu (ROI) 1 fixed region for main stream
  • Zvuk
  • Typ zvuku -2U: Mono sound
  • Přenosová rychlost zvuku -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio komprese -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Míra audio vzorů -2U: 8 kHz/16 kHz/32 kHz/48 kHz
  • Filtrování šumu prostředí -2U: Yes
  • Síť
  • Protokoly TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Současný živý náhled Up to 6 channels
  • API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • Uživatel/hostitel Up to 32 users 3 user levels: administrator, operator, and user
  • Bezpečnost Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Síťové úložiště NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Klient iVMS-4200,Hik-Connect,Hik-Central
  • Webový prohlížeč Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
  • Obraz
  • Přepínač parametrů obrazu Yes
  • Nastavení obrazu Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Přepínač den/noc Day,Night,Auto,Schedule
  • Vylepšení obrazu BLC,HLC,3D DNR,Distortion Correction,Defog
  • SNR ≥ 52 dB
  • Wide Dynamic Range (WDR) 130 dB
  • Image Stabilization EIS
  • Maska ochrany osobních údajů 4 programmable polygon privacy masks
  • Rozhraní
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Zvuk -S2U models support: Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm -S: 1 input, 1 output (max. 24 VAC/VDC, 1A)
  • Reset Key Yes
  • Událost
  • Základní událost Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,-S model: trigger alarm output
  • Inteligentní událost Scene change detection
  • Deep Learning Function
  • Zachycení obličeje Yes
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Všeobecné
  • Napájení 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
  • Materiál Base: aluminum alloy, cover: aluminum alloy
  • Rozměry Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
  • Rozměr balení 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
  • Váha Approx. 600 g (1.3 lb.)
  • S váhou balení Approx. 825 g (1.8 lb.)
  • Podmínky skladování -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Spuštění a provozní podmínky -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Obecné funkce Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Jazyk 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Schválení
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • Bezpečnost UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • životní prostředí CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Ochrana IP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Antikorozní ochrana NEMA 4X (NEMA 250-2018)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specifikace

Kamera
Senzor obrazu
1/1.8" Progressive Scan CMOS
Max. rozlišení
3840 × 2160
Min. osvětlení
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Čas závěrky
1 s to 1/100,000 s
Den & Noc
IR cut filter
Nastavení úhlu
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Objektiv
Typ objektivu
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
Držák objektivu
M16
Iris Type
Fixed
Clona
F1.0
Depth of Field
2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞
DORI
DORI
2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
Iluminátor
Doplňkový typ světla
White Light,IR
Doplňte rozsah světla
Up to 30 m
Chytré doplňkové světlo
Yes
IR Wavelength
850 nm
Video
Hlavní proud
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Vedlejší stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Třetí proud
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video komprese
Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Přenosová rychlost videa
32 Kbps to 16 Mbps
H.264 typ
Baseline Profile,Main Profile,High Profile
H.265 typ
Main Profile
Řízení bitové rychlosti
CBR,VBR
Škálovatelné kódování videa (SVC)
H.264 and H.265 encoding
Oblast zájmu (ROI)
1 fixed region for main stream
Zvuk
Typ zvuku
-2U: Mono sound
Přenosová rychlost zvuku
-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio komprese
-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Míra audio vzorů
-2U: 8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředí
-2U: Yes
Síť
Protokoly
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Současný živý náhled
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Uživatel/hostitel
Up to 32 users 3 user levels: administrator, operator, and user
Bezpečnost
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Síťové úložiště
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Klient
iVMS-4200,Hik-Connect,Hik-Central
Webový prohlížeč
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
Obraz
Přepínač parametrů obrazu
Yes
Nastavení obrazu
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Přepínač den/noc
Day,Night,Auto,Schedule
Vylepšení obrazu
BLC,HLC,3D DNR,Distortion Correction,Defog
SNR
≥ 52 dB
Wide Dynamic Range (WDR)
130 dB
Image Stabilization
EIS
Maska ochrany osobních údajů
4 programmable polygon privacy masks
Rozhraní
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Zvuk
-S2U models support: Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
-S: 1 input, 1 output (max. 24 VAC/VDC, 1A)
Reset Key
Yes
Událost
Základní událost
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,-S model: trigger alarm output
Inteligentní událost
Scene change detection
Deep Learning Function
Zachycení obličeje
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Všeobecné
Napájení
12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
Materiál
Base: aluminum alloy, cover: aluminum alloy
Rozměry
Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Rozměr balení
234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Váha
Approx. 600 g (1.3 lb.)
S váhou balení
Approx. 825 g (1.8 lb.)
Podmínky skladování
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Obecné funkce
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Jazyk
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Schválení
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Bezpečnost
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
životní prostředí
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Ochrana
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Antikorozní ochrana
NEMA 4X (NEMA 250-2018)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.8.10_250119
Aplikováno na:
DS-2CD2187G3-LIS2UY(2.8mm)
DS-2CD2187G3-LIS2UY(4mm)

Specifikace

  • Kamera
  • Senzor obrazu 1/1.8" Progressive Scan CMOS
  • Max. rozlišení 3840 × 2160
  • Min. osvětlení Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Čas závěrky 1 s to 1/100,000 s
  • Den & Noc IR cut filter
  • Nastavení úhlu Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Objektiv
  • Typ objektivu Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
  • Držák objektivu M16
  • Iris Type Fixed
  • Clona F1.0
  • Depth of Field 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞
  • DORI
  • DORI 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
  • Iluminátor
  • Doplňkový typ světla White Light,IR
  • Doplňte rozsah světla Up to 30 m
  • Chytré doplňkové světlo Yes
  • IR Wavelength 850 nm
  • Video
  • Hlavní proud 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Vedlejší stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Třetí proud 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Video komprese Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
  • Přenosová rychlost videa 32 Kbps to 16 Mbps
  • H.264 typ Baseline Profile,Main Profile,High Profile
  • H.265 typ Main Profile
  • Řízení bitové rychlosti CBR,VBR
  • Škálovatelné kódování videa (SVC) H.264 and H.265 encoding
  • Oblast zájmu (ROI) 1 fixed region for main stream
  • Zvuk
  • Typ zvuku -2U: Mono sound
  • Přenosová rychlost zvuku -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
  • Audio komprese -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Míra audio vzorů -2U: 8 kHz/16 kHz/32 kHz/48 kHz
  • Filtrování šumu prostředí -2U: Yes
  • Síť
  • Protokoly TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Současný živý náhled Up to 6 channels
  • API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • Uživatel/hostitel Up to 32 users 3 user levels: administrator, operator, and user
  • Bezpečnost Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Síťové úložiště NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Klient iVMS-4200,Hik-Connect,Hik-Central
  • Webový prohlížeč Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
  • Obraz
  • Přepínač parametrů obrazu Yes
  • Nastavení obrazu Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Přepínač den/noc Day,Night,Auto,Schedule
  • Vylepšení obrazu BLC,HLC,3D DNR,Distortion Correction,Defog
  • SNR ≥ 52 dB
  • Wide Dynamic Range (WDR) 130 dB
  • Image Stabilization EIS
  • Maska ochrany osobních údajů 4 programmable polygon privacy masks
  • Rozhraní
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Zvuk -S2U models support: Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm -S: 1 input, 1 output (max. 24 VAC/VDC, 1A)
  • Reset Key Yes
  • Událost
  • Základní událost Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,-S model: trigger alarm output
  • Inteligentní událost Scene change detection
  • Deep Learning Function
  • Zachycení obličeje Yes
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Všeobecné
  • Napájení 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
  • Materiál Base: aluminum alloy, cover: aluminum alloy
  • Rozměry Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
  • Rozměr balení 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
  • Váha Approx. 600 g (1.3 lb.)
  • S váhou balení Approx. 825 g (1.8 lb.)
  • Podmínky skladování -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Spuštění a provozní podmínky -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Obecné funkce Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Jazyk 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Schválení
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • Bezpečnost UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • životní prostředí CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Ochrana IP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Antikorozní ochrana NEMA 4X (NEMA 250-2018)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specifikace

Kamera
Senzor obrazu
1/1.8" Progressive Scan CMOS
Max. rozlišení
3840 × 2160
Min. osvětlení
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Čas závěrky
1 s to 1/100,000 s
Den & Noc
IR cut filter
Nastavení úhlu
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Objektiv
Typ objektivu
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
Držák objektivu
M16
Iris Type
Fixed
Clona
F1.0
Depth of Field
2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞
DORI
DORI
2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
Iluminátor
Doplňkový typ světla
White Light,IR
Doplňte rozsah světla
Up to 30 m
Chytré doplňkové světlo
Yes
IR Wavelength
850 nm
Video
Hlavní proud
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Vedlejší stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Třetí proud
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video komprese
Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Přenosová rychlost videa
32 Kbps to 16 Mbps
H.264 typ
Baseline Profile,Main Profile,High Profile
H.265 typ
Main Profile
Řízení bitové rychlosti
CBR,VBR
Škálovatelné kódování videa (SVC)
H.264 and H.265 encoding
Oblast zájmu (ROI)
1 fixed region for main stream
Zvuk
Typ zvuku
-2U: Mono sound
Přenosová rychlost zvuku
-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio komprese
-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Míra audio vzorů
-2U: 8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředí
-2U: Yes
Síť
Protokoly
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Současný živý náhled
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Uživatel/hostitel
Up to 32 users 3 user levels: administrator, operator, and user
Bezpečnost
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Síťové úložiště
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Klient
iVMS-4200,Hik-Connect,Hik-Central
Webový prohlížeč
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
Obraz
Přepínač parametrů obrazu
Yes
Nastavení obrazu
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Přepínač den/noc
Day,Night,Auto,Schedule
Vylepšení obrazu
BLC,HLC,3D DNR,Distortion Correction,Defog
SNR
≥ 52 dB
Wide Dynamic Range (WDR)
130 dB
Image Stabilization
EIS
Maska ochrany osobních údajů
4 programmable polygon privacy masks
Rozhraní
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Zvuk
-S2U models support: Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
-S: 1 input, 1 output (max. 24 VAC/VDC, 1A)
Reset Key
Yes
Událost
Základní událost
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,-S model: trigger alarm output
Inteligentní událost
Scene change detection
Deep Learning Function
Zachycení obličeje
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Všeobecné
Napájení
12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
Materiál
Base: aluminum alloy, cover: aluminum alloy
Rozměry
Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Rozměr balení
234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Váha
Approx. 600 g (1.3 lb.)
S váhou balení
Approx. 825 g (1.8 lb.)
Podmínky skladování
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Obecné funkce
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Jazyk
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Schválení
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Bezpečnost
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
životní prostředí
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Ochrana
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Antikorozní ochrana
NEMA 4X (NEMA 250-2018)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.8.10_250119
Aplikováno na:
DS-2CD2187G3-LIS2UY(2.8mm)(BLACK)

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics and tailor our website’s content. For more information on cookie practices please refer to our cookie policy.

Manage Cookies Reject all Accept
Accept
Reject all Manage Cookies
Prodej
Technická podpora
Odběr newsletteru
Online podpora
Kde nakupovat
Jiné
Kontakt
Hik-Partner Pro close
Hik-Partner Pro
Security Business Assistant. At Your Fingertips. Learn more
Hik-Partner Pro
Scan and download the app
Download
Hik-Partner Pro
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
