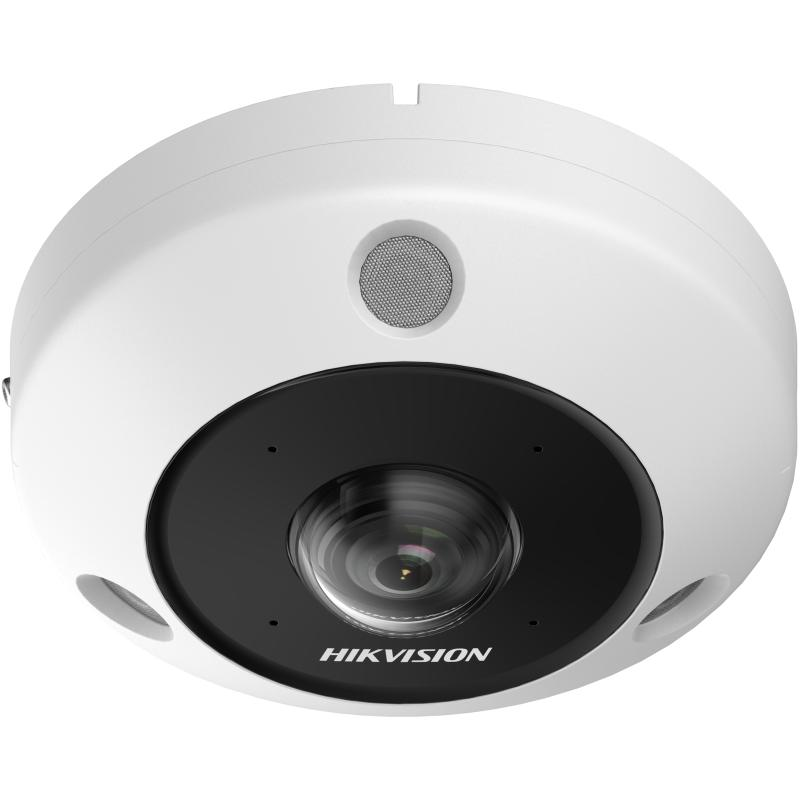

DS-2CD63C5G1-IVS

12 MP DeepinView Fisheye Network Camera

Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
Each image is clear and detailed
Panomorph lens RPL: 89VVT
Water and dust resistant (IP67) and vandal resistant (IK10)

View Less

Available models:

DS-2CD63C5G1-IVS(1.29mm)

Kamera
Senzor obrazu1/1.8" Progressive Scan CMOS
Max. rozlišení3504 × 3504
Min. osvětleníColor: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Čas závěrky1 s to 1/100,000 s
Den & NocIR cut filter

Objektiv
Typ objektivuFixed focal lens, 1.29 mm
Focal Length & FOV1.29 mm, horizontal FOV 180°, vertical FOV 180°
Iris TypeFixed
ClonaF2.2
Depth of Field0.2 m to ∞

DORI
DORID: 27.9 m O: 11.1 m R: 5.6 m I: 2.8 m

Iluminátor
Doplňkový typ světlaIR
Doplňte rozsah světlaUp to 15 m
Supplement Light Number3
IR Wavelength850 nm
Chytré doplňkové světloYes

HEOP
Open ResourcesMemory: 60 MB, Smart RAM: 800 MB, eMMC: 2 GB
Computing Power2 TOPS
Open CapabilityHEOP 2.0 OpendevSDK
Deep Learning StructureCaffe,TensorFlow,PyTorch
Programming LanguageC,C++

Video
Hlavní proud50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048 180 Panorama View: 3072 × 2304, 2048 × 1536 180 Dual Channel Panorama View: 3072 × 1152 Panorama View: 3072 × 2304, 2048 × 1536 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200 Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280 camera 02/camera 03/camera 04: 1600 × 1200 4PTZ Fusion View: 3200 × 2400, 2048 × 1536
Vedlejší stream50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 720 × 720, 480 × 480 180 Panorama View: 640 × 480, 320 × 240 180 Dual Channel Panorama View: 640 × 480, 320 × 240 Panorama View: 640 × 360, 320 × 240 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240 Fisheye + 3PTZ View: camera 01: 720 × 720 camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Video kompreseMain stream: H.265+/H.265/H.264+/ H.264, Sub-stream: H.265/H.264/MJPEG
Přenosová rychlost videa32 Kbps to 16 Mbps
H.264 typBaseline Profile,Main Profile,High Profile
H.265 typMain Profile
Řízení bitové rychlostiCBR,VBR
Škálovatelné kódování videa (SVC)H.264 and H.265 encoding
Oblast zájmu (ROI)4 fixed regions for each stream

Fisheye Display
Typ montážeSupport wall/table/ceiling mounting
Režim dekódováníSupport hardware decoding and software decoding
Zobrazovací mód20 display modes in total, Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Zvuk
Audio kompreseG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Přenosová rychlost zvuku64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Míra audio vzorů8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředíYes

Síť
ProtokolyTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
Současný živý náhledUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP, Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
Uživatel/hostitelUp to 32 users 3 user levels: administrator, operator, and user
BezpečnostPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Síťové úložištěNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
KlientiVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
Webový prohlížečPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Obraz
Přepínač parametrů obrazuYes
Nastavení obrazusaturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Přepínač den/nocDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)Digital WDR
Vylepšení obrazuBLC,HLC,3D DNR,Distortion Correction,Defog
Maska ochrany osobních údajů8 programmable polygon privacy masks
Překryvný obrázekLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Rozhraní
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Zabudovaný mikrofonYes, 4 built-in microphones
Vestavěný reproduktorYes, 1 built-in speaker
Zvuk1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key1 Reset Key

Událost
Základní událostMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Inteligentní událostLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Deep Learning Function
Počítání lidíCounts people entering, exiting and passing by separately (The data is stored in the flash.) Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports up to 3 detection regions, and independent arming schedule and linkage method
Správa frontySupports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Teplotní mapaA graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart.
Analýza průnikuDetects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways

Všeobecné
Napájení12 VDC ± 20%, 1 A, max. 11.5 W,two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 12.5 W
MateriálMetal
RozměryØ140.3 mm × 59.4 mm (Ø5.5" × 2.3")
Rozměr balení260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
VáhaApprox. 715 g (1.58 lb.)
S váhou baleníApprox. 1206 g (2.66 lb.)
Podmínky skladování-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Jazyk33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Obecné funkceHeartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding
OhřívačYes
Délka kabelu0.31 m (1.02 ft.)

Schválení
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
BezpečnostUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
životní prostředíCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
OchranaIP67: IEC 60529-2013,IK10: IEC 62262:2002

Specifikace

Kamera

Senzor obrazu

1/1.8" Progressive Scan CMOS

Max. rozlišení

3504 × 3504

Min. osvětlení

Color: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR

Čas závěrky

1 s to 1/100,000 s

Den & Noc

IR cut filter

Objektiv

Typ objektivu

Fixed focal lens, 1.29 mm

Focal Length & FOV

1.29 mm, horizontal FOV 180°, vertical FOV 180°

Iris Type

Fixed

Clona

F2.2

Depth of Field

0.2 m to ∞

DORI

D: 27.9 m O: 11.1 m R: 5.6 m I: 2.8 m

Iluminátor

Doplňkový typ světla

Doplňte rozsah světla

Up to 15 m

Supplement Light Number

IR Wavelength

850 nm

Chytré doplňkové světlo

Yes

HEOP

Open Resources

Memory: 60 MB, Smart RAM: 800 MB, eMMC: 2 GB

Computing Power

2 TOPS

Open Capability

HEOP 2.0 OpendevSDK

Deep Learning Structure

Caffe,TensorFlow,PyTorch

Programming Language

C,C++

Video

Hlavní proud

50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048 180 Panorama View: 3072 × 2304, 2048 × 1536 180 Dual Channel Panorama View: 3072 × 1152 Panorama View: 3072 × 2304, 2048 × 1536 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200 Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280 camera 02/camera 03/camera 04: 1600 × 1200 4PTZ Fusion View: 3200 × 2400, 2048 × 1536

Vedlejší stream

50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 720 × 720, 480 × 480 180 Panorama View: 640 × 480, 320 × 240 180 Dual Channel Panorama View: 640 × 480, 320 × 240 Panorama View: 640 × 360, 320 × 240 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240 Fisheye + 3PTZ View: camera 01: 720 × 720 camera 02/camera 03/camera 04: 640 × 480, 320 × 240

Video komprese

Main stream: H.265+/H.265/H.264+/ H.264, Sub-stream: H.265/H.264/MJPEG

Přenosová rychlost videa

32 Kbps to 16 Mbps

H.264 typ

Baseline Profile,Main Profile,High Profile

H.265 typ

Main Profile

Řízení bitové rychlosti

CBR,VBR

Škálovatelné kódování videa (SVC)

H.264 and H.265 encoding

Oblast zájmu (ROI)

4 fixed regions for each stream

Fisheye Display

Typ montáže

Support wall/table/ceiling mounting

Režim dekódování

Support hardware decoding and software decoding

Zobrazovací mód

20 display modes in total, Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Zvuk

Audio komprese

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Přenosová rychlost zvuku

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Míra audio vzorů

8 kHz/16 kHz/32 kHz/48 kHz

Filtrování šumu prostředí

Yes

Síť

Protokoly

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP

Současný živý náhled

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP, Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX

Uživatel/hostitel

Up to 32 users 3 user levels: administrator, operator, and user

Bezpečnost

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)

Síťové úložiště

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Klient

iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect

Webový prohlížeč

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Obraz

Přepínač parametrů obrazu

Yes

Nastavení obrazu

saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser

Přepínač den/noc

Day,Night,Auto,Schedule,Alarm Trigger

Wide Dynamic Range (WDR)

Digital WDR

Vylepšení obrazu

BLC,HLC,3D DNR,Distortion Correction,Defog

Maska ochrany osobních údajů

8 programmable polygon privacy masks

Překryvný obrázek

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Rozhraní

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Zabudovaný mikrofon

Yes, 4 built-in microphones

Vestavěný reproduktor

Yes, 1 built-in speaker

Zvuk

1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

2 inputs, 2 outputs (max. 24 VDC, 1 A)

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

1 Reset Key

Událost

Základní událost

Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Inteligentní událost

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Deep Learning Function

Počítání lidí

Counts people entering, exiting and passing by separately (The data is stored in the flash.) Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports up to 3 detection regions, and independent arming schedule and linkage method

Správa fronty

Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

Teplotní mapa

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart.

Analýza průniku

Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways

Všeobecné

Napájení

12 VDC ± 20%, 1 A, max. 11.5 W,two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 12.5 W

Materiál

Metal

Rozměry

Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3")

Rozměr balení

260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")

Váha

Approx. 715 g (1.58 lb.)

S váhou balení

Approx. 1206 g (2.66 lb.)

Podmínky skladování

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Spuštění a provozní podmínky

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Jazyk

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Obecné funkce

Heartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding

Ohřívač

Yes

Délka kabelu

0.31 m (1.02 ft.)

Schválení

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

Bezpečnost

UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

životní prostředí

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Ochrana

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Kamera

Senzor obrazu1/1.8" Progressive Scan CMOS
Max. rozlišení3504 × 3504
Min. osvětleníColor: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Čas závěrky1 s to 1/100,000 s
Den & NocIR cut filter

Objektiv

Typ objektivuFixed focal lens, 1.29 mm
Focal Length & FOV1.29 mm, horizontal FOV 180°, vertical FOV 180°
Iris TypeFixed
ClonaF2.2
Depth of Field0.2 m to ∞

DORI

DORID: 27.9 m O: 11.1 m R: 5.6 m I: 2.8 m

Iluminátor

Doplňkový typ světlaIR
Doplňte rozsah světlaUp to 15 m
Supplement Light Number3
IR Wavelength850 nm
Chytré doplňkové světloYes

HEOP

Open ResourcesMemory: 60 MB, Smart RAM: 800 MB, eMMC: 2 GB
Computing Power2 TOPS
Open CapabilityHEOP 2.0 OpendevSDK
Deep Learning StructureCaffe,TensorFlow,PyTorch
Programming LanguageC,C++

Video

Hlavní proud50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048 180 Panorama View: 3072 × 2304, 2048 × 1536 180 Dual Channel Panorama View: 3072 × 1152 Panorama View: 3072 × 2304, 2048 × 1536 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200 Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280 camera 02/camera 03/camera 04: 1600 × 1200 4PTZ Fusion View: 3200 × 2400, 2048 × 1536
Vedlejší stream50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 720 × 720, 480 × 480 180 Panorama View: 640 × 480, 320 × 240 180 Dual Channel Panorama View: 640 × 480, 320 × 240 Panorama View: 640 × 360, 320 × 240 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240 Fisheye + 3PTZ View: camera 01: 720 × 720 camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Video kompreseMain stream: H.265+/H.265/H.264+/ H.264, Sub-stream: H.265/H.264/MJPEG
Přenosová rychlost videa32 Kbps to 16 Mbps
H.264 typBaseline Profile,Main Profile,High Profile
H.265 typMain Profile
Řízení bitové rychlostiCBR,VBR
Škálovatelné kódování videa (SVC)H.264 and H.265 encoding
Oblast zájmu (ROI)4 fixed regions for each stream

Fisheye Display

Typ montážeSupport wall/table/ceiling mounting
Režim dekódováníSupport hardware decoding and software decoding
Zobrazovací mód20 display modes in total, Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Zvuk

Audio kompreseG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Přenosová rychlost zvuku64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Míra audio vzorů8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředíYes

Síť

ProtokolyTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
Současný živý náhledUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP, Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
Uživatel/hostitelUp to 32 users 3 user levels: administrator, operator, and user
BezpečnostPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Síťové úložištěNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
KlientiVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
Webový prohlížečPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Obraz

Přepínač parametrů obrazuYes
Nastavení obrazusaturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Přepínač den/nocDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)Digital WDR
Vylepšení obrazuBLC,HLC,3D DNR,Distortion Correction,Defog
Maska ochrany osobních údajů8 programmable polygon privacy masks
Překryvný obrázekLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Rozhraní

Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Zabudovaný mikrofonYes, 4 built-in microphones
Vestavěný reproduktorYes, 1 built-in speaker
Zvuk1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key1 Reset Key

Událost

Základní událostMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Inteligentní událostLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Deep Learning Function

Počítání lidíCounts people entering, exiting and passing by separately (The data is stored in the flash.) Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports up to 3 detection regions, and independent arming schedule and linkage method
Správa frontySupports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Teplotní mapaA graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart.
Analýza průnikuDetects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways

Všeobecné

Napájení12 VDC ± 20%, 1 A, max. 11.5 W,two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 12.5 W
MateriálMetal
RozměryØ140.3 mm × 59.4 mm (Ø5.5" × 2.3")
Rozměr balení260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
VáhaApprox. 715 g (1.58 lb.)
S váhou baleníApprox. 1206 g (2.66 lb.)
Podmínky skladování-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Jazyk33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Obecné funkceHeartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding
OhřívačYes
Délka kabelu0.31 m (1.02 ft.)

Schválení

EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
BezpečnostUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
životní prostředíCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
OchranaIP67: IEC 60529-2013,IK10: IEC 62262:2002
