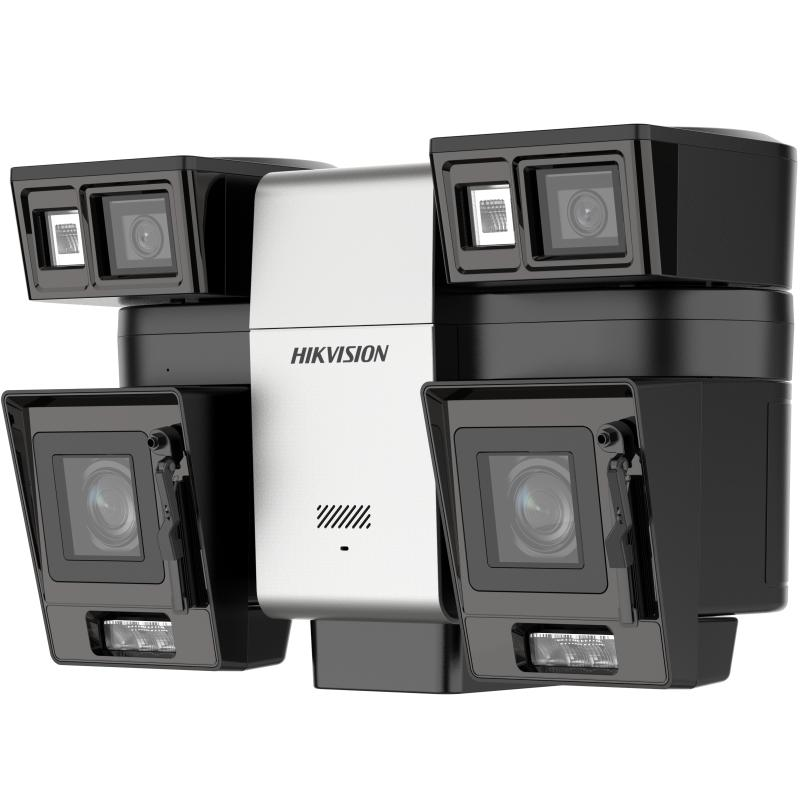

8MP DeepinView Quad-Lens Omni Camera

Excellent low-light performance via DarkFighter2.0 technology
Intelligent functions based on deep learning in various scenarios
High quality imaging with 8 MP resolution in channel 1/3 and 4 MP resolution in channel 2/4
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Adopt 4-channel design with motorized PT, pan -10° to 190°, tilt -5° to 25°
Capture vehicles and humans of different speed clearly via ShotN technology
Built-in power meter for historical power statistics
Intrusion-triggered lighting to achieve carbon neutrality and energy saving
Support wiper for window cleaning and built-in heater to ensure clear image
Water and dust resistant (IP67) and corrosion resistant (NEMA 4X)

View Less

Data Sheet

Available models:

iDS-2CD8V886G0/X4-XZHSY(1050/1050)/O-STD

iDS-2CD8V886G0/X4-XZHS(Y)

NEW

Specifikace
Resources
Příslušenství

Data Sheet

Kamera
Senzor obrazuChannel 1: 1/1.2" Progressive Scan CMOS, Channel 2: 1/1.8" Progressive Scan CMOS, Channel 3: 1/1.2" Progressive Scan CMOS, Channel 4: 1/1.8" Progressive Scan CMOS
Max. rozlišeníChannel 1: 3840 × 2160, Channel 2: 2560 × 1440, Channel 3: 3840 × 2160, Channel 4: 2560 × 1440
Min. osvětleníChannel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 2: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR Channel 3: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 4: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
Čas závěrky1 s to 1/100,000 s
Den & NocChannel 1: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 2: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 3: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 4: IR cut filter, Blue glass module to reduce ghost phenomenon
Nastavení úhluChannel 1: Pan: -10° to 190°, tilt: -5° to 25°, Channel 2: Pan: 0° to 180°, tilt: -5° to 25°, Channel 3: Pan: -10° to 190°, tilt: -5° to 25°, Channel 4: Pan: 0° to 180°, tilt: -5° to 25°

Objektiv
Typ objektivuChannel 1: Varifocal lens, manual adjustment, 10 to 50 mm, Channel 2: Fixed focal lens, 4 mm, Channel 3: Varifocal lens, manual adjustment, 10 to 50 mm, Channel 4: Fixed focal lens, 4 mm
Focal Length & FOVChannel 1: 10 to 50 mm, horizontal FOV 36.1° to 13.1°, vertical FOV 20.3° to 7.3°, diagonal FOV 41.8° to 14.9° Channel 2: 4 mm, horizontal FOV 85.2°, vertical FOV 45.2°, diagonal FOV 101.7° Channel 3: 10 to 50 mm, horizontal FOV 36.1° to 13.1°, vertical FOV 20.3° to 7.3°, diagonal FOV 41.8° to 14.9° Channel 4: 4 mm, horizontal FOV 85.2°, vertical FOV 45.2°, diagonal FOV 101.7°
OhniskoAuto,Semi-auto,Manual
Min. Focus DistanceChannel 1/3: 1.5 m Channel 2/4: 3 m
Iris TypeDC iris
ClonaChannel 1: F1.6, Channel 2: F1.0, Channel 3: F1.6, Channel 4: F1.0
Depth of FieldChannel 1: 3.1 m to ∞ Channel 2: 3.1 m to ∞ Channel 3: 3.1 m to ∞ Channel 4: 3.1 m to ∞

PTZ
Rozsah pohybu (otáčení)Channel 1/Channel 3: Pan: -10° to 190° Channel 2/Channel 4: Pan: 0° to 180°
Rozsah pohybu (náklon)Channel 1/Channel 3: Tilt: -5° to 25° Channel 2/Channel 4: Tilt: -5° to 25°
Rychlost otáčeníPan speed: configurable from 0.1° to 5°/s, preset speed: 2.5°/s
Rychlost náklonuTilt speed: configurable from 0.1° to 5°/s, preset speed 2.5°/s

DORI
DORIFixed lens: D: 72.1 m, O: 28.6 m, R: 14.4 m, I: 7.2 m Varifocal lens: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m Tele: D: 662.1 m, O: 262.7 m, R: 132.4 m, I: 66.2 m

Iluminátor
Doplňkový typ světlaIR,White Light,Hybrid (IR and White Light)
Doplňte rozsah světlaChannel 1/3: up to 100 m Channel 2/4: up to 30 m
Supplement Light Number10
Chytré doplňkové světloYes
IR Wavelength850 nm

Video
Hlavní proudChannel 1 & Channel 3: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2 & Channel 4: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Vedlejší streamChannel 1 & Channel 3: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Třetí proudChannel 1 & Channel 3: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Čtvrtý proudChannel 1 & Channel 3: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Pátý proudChannel 1 & Channel 3: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Video kompreseMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
Přenosová rychlost videaChannel1/3: 32 Kbps to 16 Mbps, Channel2/4: 32 Kbps to 8 Mbps
H.264 typBaseline Profile,High Profile,Main Profile
H.265 typMain Profile
Řízení bitové rychlostiCBR,VBR
Škálovatelné kódování videa (SVC)H.264 and H.265 encoding
Oblast zájmu (ROI)4 fixed regions for each stream
Oříznutí cíleYes

Zvuk
Typ zvukuMono sound
Audio kompreseG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Přenosová rychlost zvuku64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 48 Kbps (PCM)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Míra audio vzorů8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředíYes

Síť
ProtokolyTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
Současný živý náhledUp to 20 channels
APIONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
Uživatel/hostitelUp to 32 users 3 user levels: administrator, operator, and user
BezpečnostPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Síťové úložištěNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),CVR,NVR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
KlientiVMS-4200,Hik-Connect
Webový prohlížečPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 13+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Obraz
Přepínač parametrů obrazuYes
Nastavení obrazuRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Přepínač den/nocDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)140 dB
Vylepšení obrazuBLC,HLC,3D DNR,Distortion Correction
Maska ochrany osobních údajů8 programmable polygon privacy masks
Překryvný obrázekLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Satelitní určování polohy
Satellite Positioning DetectionGPS

Rozhraní
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Zabudovaný mikrofonYes, 2 built-in microphones
Vestavěný reproduktorYes, 1 built-in speaker,Max. power consumption: 3 W, max. sound pressure level: 10 cm: 95 dB.
Zvuk2 inputs (line in), 1 output (line out), 3.5 mm connector, 2 channels
Alarm 3 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Výstupní výkon12 VDC, max. 100 mA

Událost
Základní událostMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart),alarm input and output,video quality diagnosis,vibration detection
Inteligentní událostUnattended baggage detection, object removal detection,scene change detection,audio exception detection,defocus detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Detekce více cílůDetects up to 30 targets simultaneously,Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features
Zachycení obličejeDetects up to 120 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures
Porovnání obličejeUp to 10 face libraries. 30,000 faces for each library. 150,000 faces in total, Supports face library encryption, Only channel 1/3 supports
MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection

Všeobecné
Napájení36 VDC ± 20%, 1.56 A, max. 56.12 W,two-core terminal block
MateriálPlastics and metal
Rozměry385.2 mm × 193.6 mm × 262.5 mm (15.2" × 7.6" × 10.3")
Rozměr balení490 mm × 280 mm × 343 mm (19.3" × 11" × 13.5")
VáhaApprox. 6660 g (14.7 lb.)
S váhou baleníApprox. 8835 g (19.5 lb.)
Podmínky skladování-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Jazyk33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Obecné funkceHeartbeat,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding
OhřívačYes
StěračYes
OdmlžováníYes
Blikající světloWhite Light

Schválení
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
BezpečnostCE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
životní prostředíCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
OchranaIP67: IEC 60529-2013,IK10: IEC 62262:2002
Antikorozní ochrana-Y: NEMA 4X (NEMA 250-2018)
DalšíPVC FREE

Kamera

Senzor obrazu

Channel 1: 1/1.2" Progressive Scan CMOS, Channel 2: 1/1.8" Progressive Scan CMOS, Channel 3: 1/1.2" Progressive Scan CMOS, Channel 4: 1/1.8" Progressive Scan CMOS

Max. rozlišení

Channel 1: 3840 × 2160, Channel 2: 2560 × 1440, Channel 3: 3840 × 2160, Channel 4: 2560 × 1440

Min. osvětlení

Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 2: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR Channel 3: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 4: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR

Čas závěrky

1 s to 1/100,000 s

Den & Noc

Channel 1: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 2: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 3: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 4: IR cut filter, Blue glass module to reduce ghost phenomenon

Nastavení úhlu

Channel 1: Pan: -10° to 190°, tilt: -5° to 25°, Channel 2: Pan: 0° to 180°, tilt: -5° to 25°, Channel 3: Pan: -10° to 190°, tilt: -5° to 25°, Channel 4: Pan: 0° to 180°, tilt: -5° to 25°

Objektiv

Typ objektivu

Channel 1: Varifocal lens, manual adjustment, 10 to 50 mm, Channel 2: Fixed focal lens, 4 mm, Channel 3: Varifocal lens, manual adjustment, 10 to 50 mm, Channel 4: Fixed focal lens, 4 mm

Focal Length & FOV

Channel 1: 10 to 50 mm, horizontal FOV 36.1° to 13.1°, vertical FOV 20.3° to 7.3°, diagonal FOV 41.8° to 14.9° Channel 2: 4 mm, horizontal FOV 85.2°, vertical FOV 45.2°, diagonal FOV 101.7° Channel 3: 10 to 50 mm, horizontal FOV 36.1° to 13.1°, vertical FOV 20.3° to 7.3°, diagonal FOV 41.8° to 14.9° Channel 4: 4 mm, horizontal FOV 85.2°, vertical FOV 45.2°, diagonal FOV 101.7°

Ohnisko

Auto,Semi-auto,Manual

Min. Focus Distance

Channel 1/3: 1.5 m Channel 2/4: 3 m

Iris Type

DC iris

Clona

Channel 1: F1.6, Channel 2: F1.0, Channel 3: F1.6, Channel 4: F1.0

Depth of Field

Channel 1: 3.1 m to ∞ Channel 2: 3.1 m to ∞ Channel 3: 3.1 m to ∞ Channel 4: 3.1 m to ∞

PTZ

Rozsah pohybu (otáčení)

Channel 1/Channel 3: Pan: -10° to 190° Channel 2/Channel 4: Pan: 0° to 180°

Rozsah pohybu (náklon)

Channel 1/Channel 3: Tilt: -5° to 25° Channel 2/Channel 4: Tilt: -5° to 25°

Rychlost otáčení

Pan speed: configurable from 0.1° to 5°/s, preset speed: 2.5°/s

Rychlost náklonu

Tilt speed: configurable from 0.1° to 5°/s, preset speed 2.5°/s

DORI

Fixed lens: D: 72.1 m, O: 28.6 m, R: 14.4 m, I: 7.2 m Varifocal lens: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m Tele: D: 662.1 m, O: 262.7 m, R: 132.4 m, I: 66.2 m

Iluminátor

Doplňkový typ světla

IR,White Light,Hybrid (IR and White Light)

Doplňte rozsah světla

Channel 1/3: up to 100 m Channel 2/4: up to 30 m

Supplement Light Number

Chytré doplňkové světlo

Yes

IR Wavelength

850 nm

Video

Hlavní proud

Channel 1 & Channel 3: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2 & Channel 4: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Vedlejší stream

Channel 1 & Channel 3: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Třetí proud

Channel 1 & Channel 3: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Čtvrtý proud

Pátý proud

Video komprese

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG

Přenosová rychlost videa

Channel1/3: 32 Kbps to 16 Mbps, Channel2/4: 32 Kbps to 8 Mbps

H.264 typ

Baseline Profile,High Profile,Main Profile

H.265 typ

Main Profile

Řízení bitové rychlosti

CBR,VBR

Škálovatelné kódování videa (SVC)

H.264 and H.265 encoding

Oblast zájmu (ROI)

4 fixed regions for each stream

Oříznutí cíle

Yes

Zvuk

Typ zvuku

Mono sound

Audio komprese

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Přenosová rychlost zvuku

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 48 Kbps (PCM)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Míra audio vzorů

8 kHz/16 kHz/32 kHz/48 kHz

Filtrování šumu prostředí

Yes

Síť

Protokoly

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets

Současný živý náhled

Up to 20 channels

API

ONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP

Uživatel/hostitel

Up to 32 users 3 user levels: administrator, operator, and user

Bezpečnost

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256

Síťové úložiště

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),CVR,NVR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Klient

iVMS-4200,Hik-Connect

Webový prohlížeč

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 13+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Obraz

Přepínač parametrů obrazu

Yes

Nastavení obrazu

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser

Přepínač den/noc

Day,Night,Auto,Schedule,Alarm Trigger

Wide Dynamic Range (WDR)

140 dB

Vylepšení obrazu

BLC,HLC,3D DNR,Distortion Correction

Maska ochrany osobních údajů

8 programmable polygon privacy masks

Překryvný obrázek

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Satelitní určování polohy

Satellite Positioning Detection

GPS

Rozhraní

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Zabudovaný mikrofon

Yes, 2 built-in microphones

Vestavěný reproduktor

Yes, 1 built-in speaker,Max. power consumption: 3 W, max. sound pressure level: 10 cm: 95 dB.

Zvuk

2 inputs (line in), 1 output (line out), 3.5 mm connector, 2 channels

Alarm

3 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Výstupní výkon

12 VDC, max. 100 mA

Událost

Základní událost

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart),alarm input and output,video quality diagnosis,vibration detection

Inteligentní událost

Unattended baggage detection, object removal detection,scene change detection,audio exception detection,defocus detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Detekce více cílů

Detects up to 30 targets simultaneously,Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features

Zachycení obličeje

Detects up to 120 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures

Porovnání obličeje

Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total, Supports face library encryption, Only channel 1/3 supports

Metadata

Intrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection

Všeobecné

Napájení

36 VDC ± 20%, 1.56 A, max. 56.12 W,two-core terminal block

Materiál

Plastics and metal

Rozměry

385.2 mm × 193.6 mm × 262.5 mm (15.2" × 7.6" × 10.3")

Rozměr balení

490 mm × 280 mm × 343 mm (19.3" × 11" × 13.5")

Váha

Approx. 6660 g (14.7 lb.)

S váhou balení

Approx. 8835 g (19.5 lb.)

Podmínky skladování

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Spuštění a provozní podmínky

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Jazyk

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Obecné funkce

Heartbeat,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding

Ohřívač

Yes

Stěrač

Yes

Odmlžování

Yes

Blikající světlo

White Light

Schválení

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

Bezpečnost

CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1

životní prostředí

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Ochrana

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Antikorozní ochrana

-Y: NEMA 4X (NEMA 250-2018)

Další

PVC FREE

Kamera

Senzor obrazuChannel 1: 1/1.2" Progressive Scan CMOS, Channel 2: 1/1.8" Progressive Scan CMOS, Channel 3: 1/1.2" Progressive Scan CMOS, Channel 4: 1/1.8" Progressive Scan CMOS
Max. rozlišeníChannel 1: 3840 × 2160, Channel 2: 2560 × 1440, Channel 3: 3840 × 2160, Channel 4: 2560 × 1440
Min. osvětleníChannel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 2: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR Channel 3: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 4: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
Čas závěrky1 s to 1/100,000 s
Den & NocChannel 1: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 2: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 3: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 4: IR cut filter, Blue glass module to reduce ghost phenomenon
Nastavení úhluChannel 1: Pan: -10° to 190°, tilt: -5° to 25°, Channel 2: Pan: 0° to 180°, tilt: -5° to 25°, Channel 3: Pan: -10° to 190°, tilt: -5° to 25°, Channel 4: Pan: 0° to 180°, tilt: -5° to 25°

Objektiv

Typ objektivuChannel 1: Varifocal lens, manual adjustment, 10 to 50 mm, Channel 2: Fixed focal lens, 4 mm, Channel 3: Varifocal lens, manual adjustment, 10 to 50 mm, Channel 4: Fixed focal lens, 4 mm
Focal Length & FOVChannel 1: 10 to 50 mm, horizontal FOV 36.1° to 13.1°, vertical FOV 20.3° to 7.3°, diagonal FOV 41.8° to 14.9° Channel 2: 4 mm, horizontal FOV 85.2°, vertical FOV 45.2°, diagonal FOV 101.7° Channel 3: 10 to 50 mm, horizontal FOV 36.1° to 13.1°, vertical FOV 20.3° to 7.3°, diagonal FOV 41.8° to 14.9° Channel 4: 4 mm, horizontal FOV 85.2°, vertical FOV 45.2°, diagonal FOV 101.7°
OhniskoAuto,Semi-auto,Manual
Min. Focus DistanceChannel 1/3: 1.5 m Channel 2/4: 3 m
Iris TypeDC iris
ClonaChannel 1: F1.6, Channel 2: F1.0, Channel 3: F1.6, Channel 4: F1.0
Depth of FieldChannel 1: 3.1 m to ∞ Channel 2: 3.1 m to ∞ Channel 3: 3.1 m to ∞ Channel 4: 3.1 m to ∞

PTZ

Rozsah pohybu (otáčení)Channel 1/Channel 3: Pan: -10° to 190° Channel 2/Channel 4: Pan: 0° to 180°
Rozsah pohybu (náklon)Channel 1/Channel 3: Tilt: -5° to 25° Channel 2/Channel 4: Tilt: -5° to 25°
Rychlost otáčeníPan speed: configurable from 0.1° to 5°/s, preset speed: 2.5°/s
Rychlost náklonuTilt speed: configurable from 0.1° to 5°/s, preset speed 2.5°/s

DORI

DORIFixed lens: D: 72.1 m, O: 28.6 m, R: 14.4 m, I: 7.2 m Varifocal lens: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m Tele: D: 662.1 m, O: 262.7 m, R: 132.4 m, I: 66.2 m

Iluminátor

Doplňkový typ světlaIR,White Light,Hybrid (IR and White Light)
Doplňte rozsah světlaChannel 1/3: up to 100 m Channel 2/4: up to 30 m
Supplement Light Number10
Chytré doplňkové světloYes
IR Wavelength850 nm

Video

Hlavní proudChannel 1 & Channel 3: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2 & Channel 4: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Vedlejší streamChannel 1 & Channel 3: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Třetí proudChannel 1 & Channel 3: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Čtvrtý proudChannel 1 & Channel 3: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Pátý proudChannel 1 & Channel 3: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Video kompreseMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
Přenosová rychlost videaChannel1/3: 32 Kbps to 16 Mbps, Channel2/4: 32 Kbps to 8 Mbps
H.264 typBaseline Profile,High Profile,Main Profile
H.265 typMain Profile
Řízení bitové rychlostiCBR,VBR
Škálovatelné kódování videa (SVC)H.264 and H.265 encoding
Oblast zájmu (ROI)4 fixed regions for each stream
Oříznutí cíleYes

Zvuk

Typ zvukuMono sound
Audio kompreseG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Přenosová rychlost zvuku64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 48 Kbps (PCM)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Míra audio vzorů8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředíYes

Síť

ProtokolyTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
Současný živý náhledUp to 20 channels
APIONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
Uživatel/hostitelUp to 32 users 3 user levels: administrator, operator, and user
BezpečnostPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Síťové úložištěNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),CVR,NVR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
KlientiVMS-4200,Hik-Connect
Webový prohlížečPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 13+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Obraz

Přepínač parametrů obrazuYes
Nastavení obrazuRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Přepínač den/nocDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)140 dB
Vylepšení obrazuBLC,HLC,3D DNR,Distortion Correction
Maska ochrany osobních údajů8 programmable polygon privacy masks
Překryvný obrázekLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Satelitní určování polohy

Satellite Positioning DetectionGPS

Rozhraní

Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Zabudovaný mikrofonYes, 2 built-in microphones
Vestavěný reproduktorYes, 1 built-in speaker,Max. power consumption: 3 W, max. sound pressure level: 10 cm: 95 dB.
Zvuk2 inputs (line in), 1 output (line out), 3.5 mm connector, 2 channels
Alarm 3 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Výstupní výkon12 VDC, max. 100 mA

Událost

Základní událostMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart),alarm input and output,video quality diagnosis,vibration detection
Inteligentní událostUnattended baggage detection, object removal detection,scene change detection,audio exception detection,defocus detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Deep Learning Function

Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Detekce více cílůDetects up to 30 targets simultaneously,Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features
Zachycení obličejeDetects up to 120 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures
Porovnání obličejeUp to 10 face libraries. 30,000 faces for each library. 150,000 faces in total, Supports face library encryption, Only channel 1/3 supports
MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection

Všeobecné

Napájení36 VDC ± 20%, 1.56 A, max. 56.12 W,two-core terminal block
MateriálPlastics and metal
Rozměry385.2 mm × 193.6 mm × 262.5 mm (15.2" × 7.6" × 10.3")
Rozměr balení490 mm × 280 mm × 343 mm (19.3" × 11" × 13.5")
VáhaApprox. 6660 g (14.7 lb.)
S váhou baleníApprox. 8835 g (19.5 lb.)
Podmínky skladování-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Spuštění a provozní podmínky-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Jazyk33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Obecné funkceHeartbeat,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding
OhřívačYes
StěračYes
OdmlžováníYes
Blikající světloWhite Light

Schválení

EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
BezpečnostCE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
životní prostředíCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
OchranaIP67: IEC 60529-2013,IK10: IEC 62262:2002
Antikorozní ochrana-Y: NEMA 4X (NEMA 250-2018)
DalšíPVC FREE
