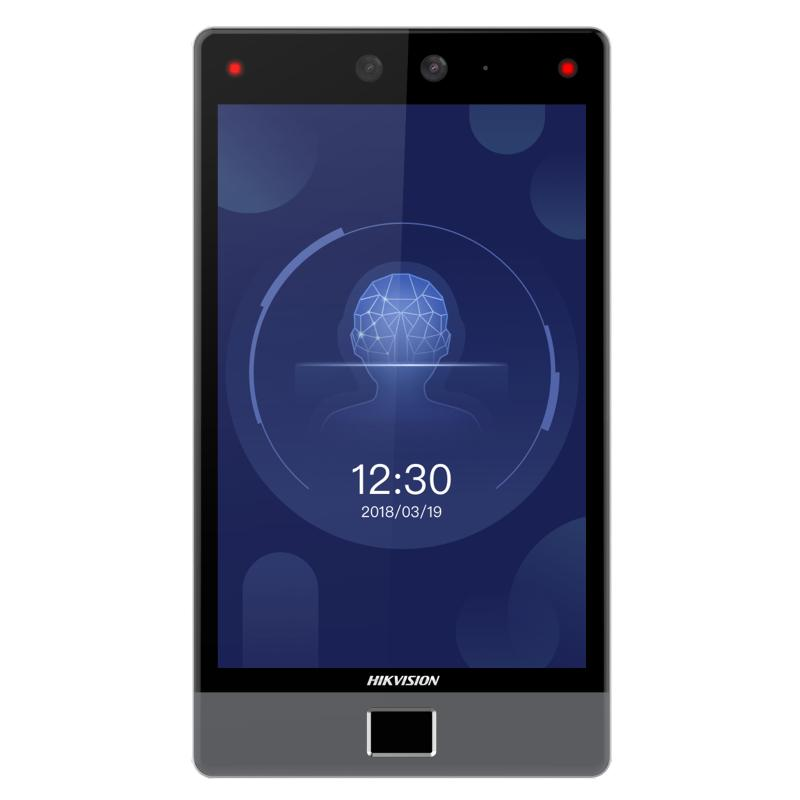

Ultra Series Wall-Mounted Face Access Terminal

  • 8-inch touch screen with bezel-less design
  • Presents card on the screen to authenticate
  • Face recognition distance: 0.3 m to 3 m, duration ＜ 0.2 s/User, accuracy rate ≥ 99%
  • 100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), 10,000 fingerprint capacity, and 150,000 event capacity
  • Supports ISAPI, ISUP 5.0, Wiegand, RS-485, TCP/IP, 3G/4G
  • Two-way audio with indoor station and master station
  • Configuration via the web client and mobile client
  • Customizes attendance status name
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1T680DFG
DS-K1T680DFG
Data Sheet

Specifikace

  • Zobrazit
  • Screen size8 inch
  • Provozní metodaCapacitive touch screen
  • TypLCD
  • Video
  • Objektiv2
  • Řešení2 MP
  • FOVHFOV = 88°; VFOV = 44°; DFOV = 108°
  • Síť
  • Kabelová síťSupport
  • Rozhraní
  • Network interface1 RJ-45, 10/100/1000 M self-adaptive
  • Lock control1
  • Tlačítko Konec1
  • Vstup dveřního kontaktu1
  • Alarm input2
  • Alarm output1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
  • USB1
  • Ověření
  • Typ kartyDESfire card;Felica card
  • Všeobecné
  • Power supply12 VDC to 24 VDC, 3 A
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (No condensing)
  • Ochranná úroveňIP65
  • Dimensions127.3 mm × 232.1 mm × 23.5 mm (5.0'' × 9.1'' × 0.9'' )
  • Funkce
  • Hik-ConnectSupport
  • JazykEnglish, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
  • Obousměrný zvukTwo-way audio with indoor station and master station
  • Rozpoznávání QR kóduSupport. The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm.
  • Anti-spoofing obličejeSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specifikace

Zobrazit
Screen size
8 inch
Provozní metoda
Capacitive touch screen
Typ
LCD
Video
Objektiv
2
Řešení
2 MP
FOV
HFOV = 88°; VFOV = 44°; DFOV = 108°
Síť
Kabelová síť
Support
Rozhraní
Network interface
1 RJ-45, 10/100/1000 M self-adaptive
Lock control
1
Tlačítko Konec
1
Vstup dveřního kontaktu
1
Alarm input
2
Alarm output
1
TAMPER
1
RS-485
1 RS-485 (Half duplex, HIKVISION)
Wiegand
1 Wiegand(Hik 26bit,Hik 34bit)
USB
1
Ověření
Typ karty
DESfire card;Felica card
Všeobecné
Power supply
12 VDC to 24 VDC, 3 A
Working temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity
0 to 90% (No condensing)
Ochranná úroveň
IP65
Dimensions
127.3 mm × 232.1 mm × 23.5 mm (5.0'' × 9.1'' × 0.9'' )
Funkce
Hik-Connect
Support
Jazyk
English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
Obousměrný zvuk
Two-way audio with indoor station and master station
Rozpoznávání QR kódu
Support. The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm.
Anti-spoofing obličeje
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specifikace
Zobrazit
  • Screen size8 inch
  • Provozní metodaCapacitive touch screen
  • TypLCD
Video
  • Objektiv2
  • Řešení2 MP
  • FOVHFOV = 88°; VFOV = 44°; DFOV = 108°
Síť
  • Kabelová síťSupport
Rozhraní
  • Network interface1 RJ-45, 10/100/1000 M self-adaptive
  • Lock control1
  • Tlačítko Konec1
  • Vstup dveřního kontaktu1
  • Alarm input2
  • Alarm output1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
  • USB1
Ověření
  • Typ kartyDESfire card;Felica card
Všeobecné
  • Power supply12 VDC to 24 VDC, 3 A
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (No condensing)
  • Ochranná úroveňIP65
  • Dimensions127.3 mm × 232.1 mm × 23.5 mm (5.0'' × 9.1'' × 0.9'' )
Funkce
  • Hik-ConnectSupport
  • JazykEnglish, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
  • Obousměrný zvukTwo-way audio with indoor station and master station
  • Rozpoznávání QR kóduSupport. The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm.
  • Anti-spoofing obličejeSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V3.7.20_241022
