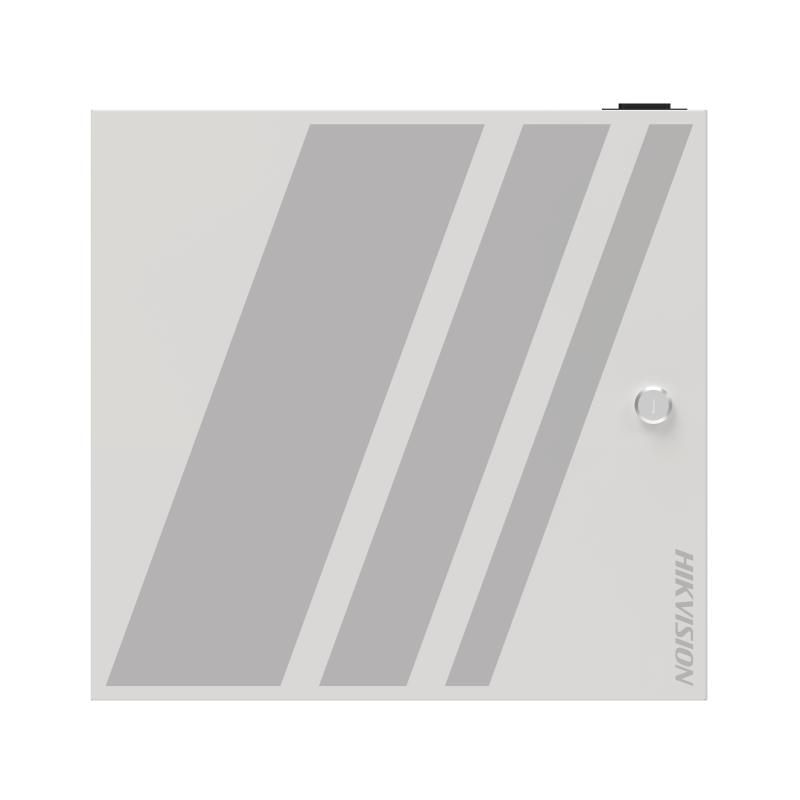

Access Controller

  • Supports 1 door control. It can extend up to 62 DS-K2M002X access modules, and up to 125 doors can be controlled
  • Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
  • Web configuration management. All configurations can be realized via web without software application
  • Supports professional access control applications such as multi-door interlocking and anti-passback
  • Supports backup battery access. Charging and discharging are available
  • It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K2701X
DS-K2701X
Data Sheet

Specifikace

  • Systém
  • Operating systemLinux
  • Síť
  • Kabelová síť1, 10/100/1000 Mbps self-adaptive
  • Rozhraní
  • Network interface1
  • Lock control1
  • Tlačítko Konec1
  • Vstup dveřního kontaktu1
  • Alarm input2
  • Alarm output2
  • TAMPER1
  • RS-4857, 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
  • Wiegand2, standard 26/34 input, supports custom Wiegand settings
  • USB1, USB 2.0
  • Fire interface1
  • Kapacita
  • User capacity100,000
  • Kapacita otisku prstu10,000
  • Kapacita karty200,000
  • Kapacita událostí600,000
  • Linked door capacitySelf: 1 doors Extended: up to 125 doors (connected with 62 access modules)
  • Linked card reader capaciry2 RS-485 card readers (OSDP protocol) and 2 Wiegand card readers
  • Ověření
  • Doba rozpoznávání otisků prstů＜ 1 s
  • Všeobecné
  • Indikátor9 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 1 for door status
  • BaterieCharge and discharge
  • Power supply100 VAC to 240 VAC
  • Power consumption≤ 42 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 ° F)
  • Working humidity0% to 90% (No condensing)
  • InstalaceWall mounting
  • JazykEnglish, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
  • Funkce
  • Configuration via Web browserSupport
  • Vícefaktorové ověřováníSupport
  • První osoba vSupport
  • Anti-passbackSupport 32 routes (64 card readers each)
  • Multi-door interlockingSupport 32 groups (32 doors each)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specifikace

Systém
Operating system
Linux
Síť
Kabelová síť
1, 10/100/1000 Mbps self-adaptive
Rozhraní
Network interface
1
Lock control
1
Tlačítko Konec
1
Vstup dveřního kontaktu
1
Alarm input
2
Alarm output
2
TAMPER
1
RS-485
7, 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
Wiegand
2, standard 26/34 input, supports custom Wiegand settings
USB
1, USB 2.0
Fire interface
1
Kapacita
User capacity
100,000
Kapacita otisku prstu
10,000
Kapacita karty
200,000
Kapacita událostí
600,000
Linked door capacity
Self: 1 doors Extended: up to 125 doors (connected with 62 access modules)
Linked card reader capaciry
2 RS-485 card readers (OSDP protocol) and 2 Wiegand card readers
Ověření
Doba rozpoznávání otisků prstů
＜ 1 s
Všeobecné
Indikátor
9 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 1 for door status
Baterie
Charge and discharge
Power supply
100 VAC to 240 VAC
Power consumption
≤ 42 W
Working temperature
-10 °C to 55 °C (14 °F to 131 ° F)
Working humidity
0% to 90% (No condensing)
Instalace
Wall mounting
Jazyk
English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Funkce
Configuration via Web browser
Support
Vícefaktorové ověřování
Support
První osoba v
Support
Anti-passback
Support 32 routes (64 card readers each)
Multi-door interlocking
Support 32 groups (32 doors each)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specifikace
Systém
  • Operating systemLinux
Síť
  • Kabelová síť1, 10/100/1000 Mbps self-adaptive
Rozhraní
  • Network interface1
  • Lock control1
  • Tlačítko Konec1
  • Vstup dveřního kontaktu1
  • Alarm input2
  • Alarm output2
  • TAMPER1
  • RS-4857, 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
  • Wiegand2, standard 26/34 input, supports custom Wiegand settings
  • USB1, USB 2.0
  • Fire interface1
Kapacita
  • User capacity100,000
  • Kapacita otisku prstu10,000
  • Kapacita karty200,000
  • Kapacita událostí600,000
  • Linked door capacitySelf: 1 doors Extended: up to 125 doors (connected with 62 access modules)
  • Linked card reader capaciry2 RS-485 card readers (OSDP protocol) and 2 Wiegand card readers
Ověření
  • Doba rozpoznávání otisků prstů＜ 1 s
Všeobecné
  • Indikátor9 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 1 for door status
  • BaterieCharge and discharge
  • Power supply100 VAC to 240 VAC
  • Power consumption≤ 42 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 ° F)
  • Working humidity0% to 90% (No condensing)
  • InstalaceWall mounting
  • JazykEnglish, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Funkce
  • Configuration via Web browserSupport
  • Vícefaktorové ověřováníSupport
  • První osoba vSupport
  • Anti-passbackSupport 32 routes (64 card readers each)
  • Multi-door interlockingSupport 32 groups (32 doors each)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
