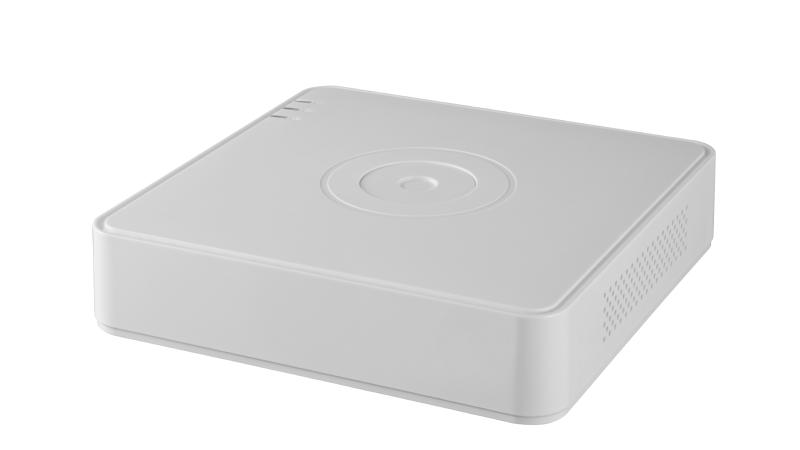

DS-7116HGHI-F1

16-ch 1080p Lite Mini 1U H.264 DVR

  • 16 channels and 1 HDD mini size DVR
  • H.264+ / H.264 video compression
  • Encoding ability up to 1080p lite @ 25/30 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 18 network cameras can be connected;
View Less
View more

Available models:

DS-7116HGHI-F1

Specification

  • Recording
  • Video compressionH.264+/H.264
  • Encoding resolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
  • Frame rateMain stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: 4CIF/2CIF@6fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
  • Video bit rate32 Kbps to 4 Mbps
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Video and Audio
  • IP video inputUp to 16-ch Up to 1080p resolution Support H.264+/H.264 IP cameras
  • Analog video input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • Turbo HD input1080p25, 1080p30, 720p25, 720p30
  • AHD input1080p25, 1080p30, 720p25, 720p30
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputSupport
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Two-way audioReuse the first audio input
  • Synchronous playback16-ch
  • VGA/HDMI output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Network
  • Remote connections128
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
  • Auxiliary interface
  • SATASATA
  • CapacityUp to 6 TB capacity for each disk
  • Alarm in/outN/A
  • USB interfaceRear panel: 2 × USB 2.0
  • General
  • Power supply12 VDC
  • Consumption (without HDD)≤ 20 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimensions (W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
  • Weights (without HDD)≤ 1.2 kg (2.6 lb)

Specification

Specification
Recording
  • Video compressionH.264+/H.264
  • Encoding resolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
  • Frame rateMain stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: 4CIF/2CIF@6fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
  • Video bit rate32 Kbps to 4 Mbps
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
Video and Audio
  • IP video inputUp to 16-ch Up to 1080p resolution Support H.264+/H.264 IP cameras
  • Analog video input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • Turbo HD input1080p25, 1080p30, 720p25, 720p30
  • AHD input1080p25, 1080p30, 720p25, 720p30
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputSupport
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Two-way audioReuse the first audio input
  • Synchronous playback16-ch
  • VGA/HDMI output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
  • Remote connections128
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
  • SATASATA
  • CapacityUp to 6 TB capacity for each disk
  • Alarm in/outN/A
  • USB interfaceRear panel: 2 × USB 2.0
General
  • Power supply12 VDC
  • Consumption (without HDD)≤ 20 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimensions (W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
  • Weights (without HDD)≤ 1.2 kg (2.6 lb)
