DS-MH2311

EOL

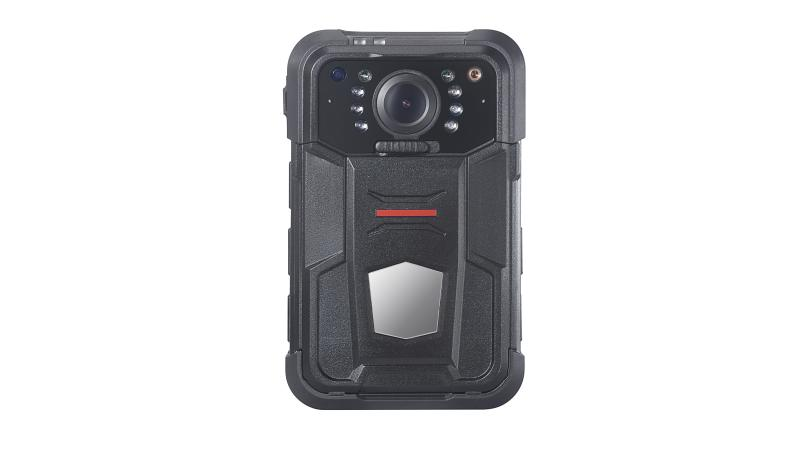

Ultra Series H265 Wi-Fi & 4G Body Camera

  • High quality recording with 2 MP resolution at 30 fps
  • Wide-range lens with 129° horizontal FOV
  • H.264/H.265 encoding technology
  • A dismountable battery with 3,300 mAh capacity which can record videos for up to 8 hours
  • Built-in Wi-Fi module and optional 3G/4G module for communication
  • Supports GPS positioning
View Less
View more

Available models:

DS-MH2311/32G/GLE

Specification

  • Sensor
  • Type1/3″ CMOS
  • FOVHorizontal FOV: 129°
  • Display
  • Dimensions2.4″ TFT LCD
  • Video Parameters
  • Video Input1080p
  • Video Resolution1920 × 1080, 1280 × 720, 720 × 576
  • Main stream1080p/30 fps
  • Sub-stream720p/30 fps
  • Video Format.mp4
  • Picture ResolutionUp to 30 MP
  • Picture Format.jpg
  • ShutterDigital shutter
  • Day & NightIR cut filter with auto switch
  • White BalanceAuto
  • Flashing LightSupported
  • Laser PositioningSupported
  • Storage
  • CapacityDS-MH2311/32G:32G TF card DS-MH2311/32G/GLE:A built-in EMMC storage chip of 32 GB capacity
  • Wireless Transmission
  • 4GDS-MH2311/32G:Not supported DS-MH2311/32G/GLE:Frequency band: FDD LTE: Band 1, Band 2, Band 3, Band 4, Band 5, Band 7,Band 8, Band 20 WCDMA/HSDPA/HSUPA/HSPA+: Band 1, Band 2, Band 5, Band 8 GSM/GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz
  • Wi-Fi802.11b/g/n
  • Others
  • ButtonsPower switch, Recording button, taping button, capture button, two-way audio button, alarm button, menu button, up button, down button, OK button.
  • USB InterfaceMini USB 2.0
  • ChargingCharging via USB interface/dock station
  • BatteryA dismountable battery with 3,300 mAh capacity which can record videos up to 8 hours.
  • General
  • Working Temperature-20 °C to +55 °C (-4 °F to +131 °F)
  • Working Humidity≤ 90%
  • WeightBody camera: 190 g (without should clip) (0.4 lb) With package: 515 g (1.1 lb)
  • Ingress Protection LevelIP67
  • Dimensions (L × W × H)95 × 60 × 29 mm (3.7 × 2.4 × 1.1 inch)
  • Positioning
  • Satellite PositioningBuilt-in GPS module

Specification

Specification
Sensor
  • Type1/3″ CMOS
  • FOVHorizontal FOV: 129°
Display
  • Dimensions2.4″ TFT LCD
Video Parameters
  • Video Input1080p
  • Video Resolution1920 × 1080, 1280 × 720, 720 × 576
  • Main stream1080p/30 fps
  • Sub-stream720p/30 fps
  • Video Format.mp4
  • Picture ResolutionUp to 30 MP
  • Picture Format.jpg
  • ShutterDigital shutter
  • Day & NightIR cut filter with auto switch
  • White BalanceAuto
  • Flashing LightSupported
  • Laser PositioningSupported
Storage
  • CapacityDS-MH2311/32G:32G TF card DS-MH2311/32G/GLE:A built-in EMMC storage chip of 32 GB capacity
Wireless Transmission
  • 4GDS-MH2311/32G:Not supported DS-MH2311/32G/GLE:Frequency band: FDD LTE: Band 1, Band 2, Band 3, Band 4, Band 5, Band 7,Band 8, Band 20 WCDMA/HSDPA/HSUPA/HSPA+: Band 1, Band 2, Band 5, Band 8 GSM/GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz
  • Wi-Fi802.11b/g/n
Others
  • ButtonsPower switch, Recording button, taping button, capture button, two-way audio button, alarm button, menu button, up button, down button, OK button.
  • USB InterfaceMini USB 2.0
  • ChargingCharging via USB interface/dock station
  • BatteryA dismountable battery with 3,300 mAh capacity which can record videos up to 8 hours.
General
  • Working Temperature-20 °C to +55 °C (-4 °F to +131 °F)
  • Working Humidity≤ 90%
  • WeightBody camera: 190 g (without should clip) (0.4 lb) With package: 515 g (1.1 lb)
  • Ingress Protection LevelIP67
  • Dimensions (L × W × H)95 × 60 × 29 mm (3.7 × 2.4 × 1.1 inch)
Positioning
  • Satellite PositioningBuilt-in GPS module

Resources

Technical documents
