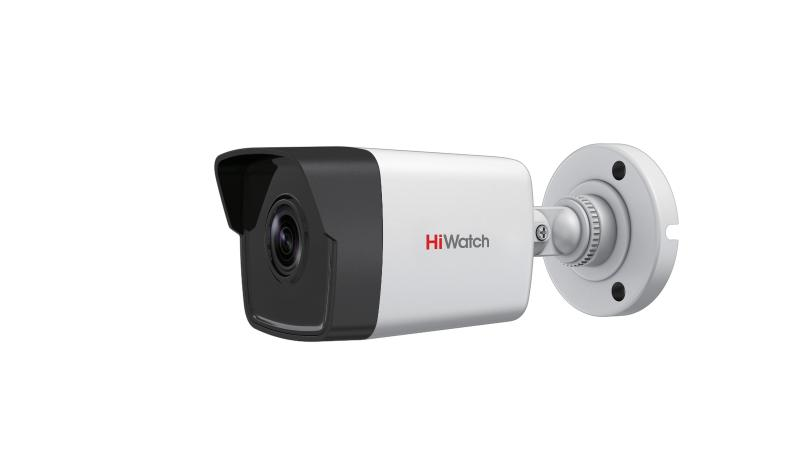

4MP Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range

View Less

Data Sheet

Available models:

DS-I400(C)(2.8mm)(RU HW)

DS-I400(C)(2.8mm)#RUBB

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/3" progressive scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens
Lens TypeFixed focal length, 2.8, 4 and 6mm optional
Focal Length & FOV2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°
Lens MountM12
Iris TypeFixed
ApertureF2.0

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region of Interest (ROI)1 fixed region for main stream

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection, video tampering, exception
LinkageUpload to FTP, notify surveillance center, send email

General
Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
WeightApprox. 270 g (0.6 lb.)
With Package WeightApprox. 490 g (1.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

Camera

Image Sensor

1/3" progressive scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal length, 2.8, 4 and 6mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°

Lens Mount

M12

Iris Type

Fixed

Aperture

F2.0

Illuminator

Supplement Light Type

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Region of Interest (ROI)

1 fixed region for main stream

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, Schedule, Day, Night

Wide Dynamic Range (WDR)

120 dB

Image Enhancement

BLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection, video tampering, exception

Linkage

Upload to FTP, notify surveillance center, send email

General

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Dimension

177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7")

Package Dimension

216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Weight

Approx. 270 g (0.6 lb.)

With Package Weight

Approx. 490 g (1.1 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)
