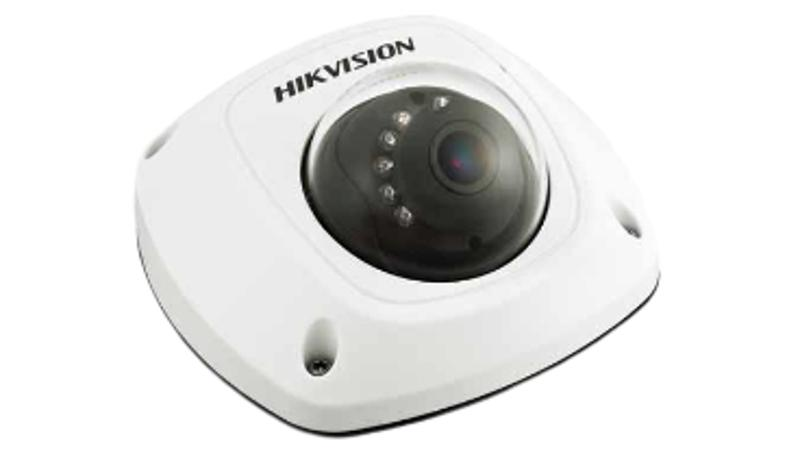

Mobile Mini Dome Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technology

View Less

Data Sheet

Available models:

DS-2XM6122FWD-I(4mm)

DS-2XM6122FWD-I(M)

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterSupport
Day &NightIR cut filter
Wide Dynamic Range120dB
Angle AdjustmentPan: -30° to 30°, Tilt: 0° to 80°, Rotate: 0° to 360°
DNR3D DNR

Lens
Lens4 mm, horizontal field of view 90° [6 mm (53.9°), 8 mm (37.9°), optional]
Lens MountM12

Illuminator
IR RangeUp to 10 m

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate256 Kbps to 16 Mbps

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise FilteringSupport
Audio Sampling RateMax. 48kHz
AudioSupport

Smart Feature-Set
Smart EventDefocus Detection, Scene Change Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
Region of InterestSupport 4 fixed region for each stream, or face dynamic tracking

Image EnhancementBLC/HLC/3D DNR/Defog/EIS
Image SettingSupport rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Target CroppingSupport
Day/Night SwitchDay/Night/Auto/Scheduled
Picture OverlayLOGO picture can be overlaid on video with 128 × 128, 24 bit bmp format

Network
Network StorageNAS (Support NFS, SMB/CIFS), Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Alarm TriggerMotion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error

Interface
Communication Interface-IM: M12 aviation plug,-I: 1 RJ45 10M/100M Ethernet port
Audio1 build-in microphone, 1 audio out interface (line out)

Battery
Operating condition-30 °C to +60 °C (-22 °F to +140°F), Humidity 95% or less (non-condensing)

Approval
Impact ProtectionIK8

Compression Standard
H.264+Main stream supports
H.265+Main stream supports

General
General FunctionOne-key Reset, Dual-VCA, Anti-Flicker, Three Streams, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Power SupplyDC12V; PoE (802.3af)
Power Consumption and CurrentMax. 5W
Dimensions99.3 × 96.7 × 52.8 mm (3.9″ × 3.8″ × 2.1″)
Weight420 g (0.92lbs)
Interface ProtectionIP66
