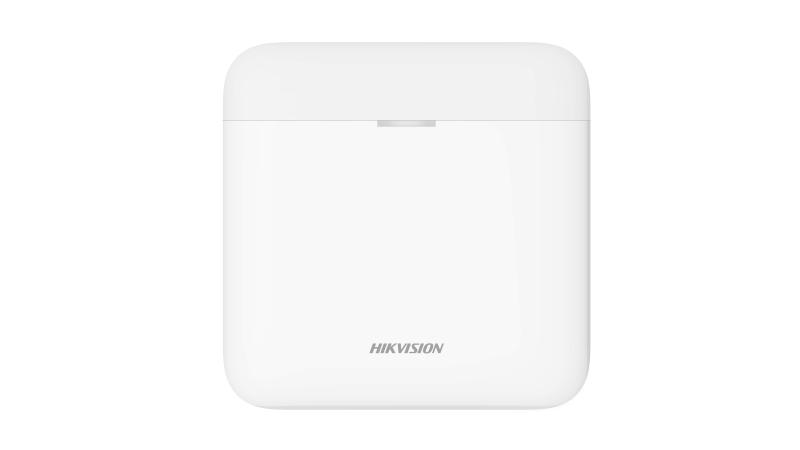

DS-PR1-WB

Wireless Repeater

  • 433MHz two-way wireless communication
  • Two-way communication, stable and secure
  • LED display, show the differernt feedbacks with easy understanding
  • Up to 35 hrs battery backup after mains lost, no worry about communication
  • Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
  • Easy installation with new designed structure
View Less
View more

Available models:

DS-PR1-WB(O-STD)

Specification

  • Software features
  • Auto paringSupported
  • Hardware features
  • Serial port2, for debug
  • Tamper-Proof1, front and back
  • Power switch1
  • Electrical characteristics
  • Battery typeBuilt in Battery Li
  • Power supply100 VAC to 240 VAC
  • Operation humidity10% to 90%
  • Operation temperature﹣10°C to +55°C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
  • Battery life spanUp to 35 hours at normal temperature(The battery working time can be significantly reduced at low temperatures)
  • Wireless transmission
  • RF frequency433 MHz
  • RF methodTwo-way communication
  • RF modulation2GFSK
  • RF distance800 m (open area)
  • Wireless securityAES-128
  • Display
  • LEDs status3, Register/Signal (Green/Red), Power (Green), Fault (Amber)
  • General
  • Installation methodWall mounting
  • Dimension(WxHxD)150 mm × 150 mm × 25 mm
  • Shell materialPlastic
  • ColorWhite
  • Weight372 g
  • Device management
  • PIRCAM paringSupported
  • KeypadLCD keypad not support

Specification

Specification
Software features
  • Auto paringSupported
Hardware features
  • Serial port2, for debug
  • Tamper-Proof1, front and back
  • Power switch1
Electrical characteristics
  • Battery typeBuilt in Battery Li
  • Power supply100 VAC to 240 VAC
  • Operation humidity10% to 90%
  • Operation temperature﹣10°C to +55°C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
  • Battery life spanUp to 35 hours at normal temperature(The battery working time can be significantly reduced at low temperatures)
Wireless transmission
  • RF frequency433 MHz
  • RF methodTwo-way communication
  • RF modulation2GFSK
  • RF distance800 m (open area)
  • Wireless securityAES-128
Display
  • LEDs status3, Register/Signal (Green/Red), Power (Green), Fault (Amber)
General
  • Installation methodWall mounting
  • Dimension(WxHxD)150 mm × 150 mm × 25 mm
  • Shell materialPlastic
  • ColorWhite
  • Weight372 g
Device management
  • PIRCAM paringSupported
  • KeypadLCD keypad not support
