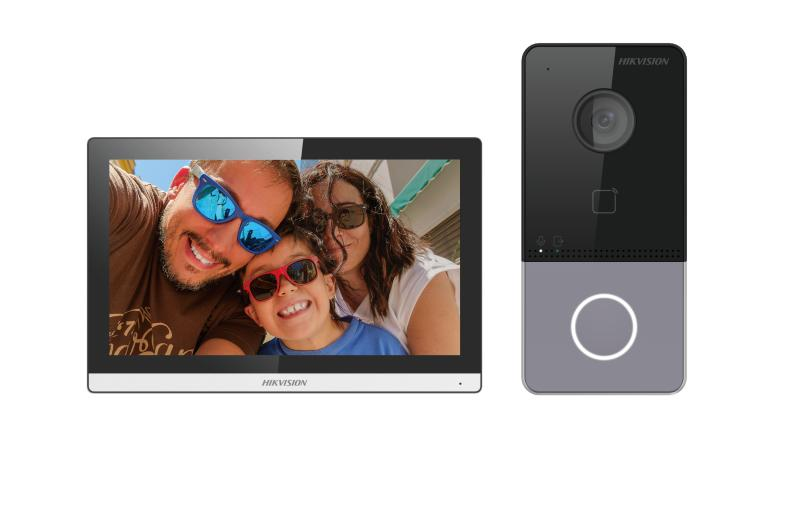

IP Video Intercom Kit

  • Indoor station: 7-inch touch screen, user friendly interface, Plug & Play
  • Indoor station: Easy, cost-efficient installation, Wifi & POE Supported
  • Indoor station: Receives video call and unlocks on mobile App anywhere, any time
  • Indoor station: Supports live view of up to 16 IP cameras
  • Door station: Hight quality imaging with 2MP resolution
  • Door station: Easy, cost-efficient installation, Wifi & POE Supported
  • Door station: Easy configuration through WEB interface
  • Door station: IP65 water resistant, preventing water ingress for outdoor use

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KIS613-P
DS-KIS613-P
Data Sheet

Specification

  • Door station/System parameters
  • Operation systemEmbedded Linux Operation System
  • Flash32 MB
  • RAM256MB
  • Door station/Video parameters
  • Camera2MP HD camera
  • Night visionIR supplement
  • WDRTrue WDR
  • Field of viewHorizontal: 131° Vertical: 78°
  • Video Compression StandardH.264
  • StreamMain stream: 1080p, 720p Sub stream: 640 x 480
  • Door station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U
  • Audio compression Rate64 Kbps
  • Door station/Network parameters
  • Network protocolTCP/IP, RSTP
  • Wired network10/100 Mbps Self-adaptive Ethernet
  • Door station/Device interfaces
  • Network interface1
  • RS-485 1
  • Alarm input4
  • Lock control1
  • Exit button1
  • Door contact1
  • Power interface1
  • TAMPER1
  • Door station/General
  • Power consumption＜ 10 W
  • Working temperature-40° C to 55° C(-40° F to 131° F)
  • Working humidity10% to 95%
  • Dimension138 mm × 65 mm × 27 mm
  • InstallationSurface mounting
  • Protection level IP65
  • Indicator2
  • Power supplyIEEE802.3af, standard PoE 12 VDC
  • Indoor station/System parameters
  • Operation systemEmbedded Linux operation system
  • Memory128 MB
  • Flash 32 MB
  • Indoor station/Display parameters
  • Display screen7-inch colorful TFT screen
  • Display resolution1024 × 600
  • Operation methodCapacitive touch screen
  • Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U, G.711 A
  • Audio compression Rate64 Kbps
  • Indoor station/Network parameters
  • Wired network 10/100 Mbps self-adaptive
  • Wireless networkWi-Fi 802.11 b/g/n
  • ProtocolTCP/IP, SIP, RTSP
  • RS-4851 RJ-45 10/100 Mbps self-adaptive
  • Indoor station/Device interfaces
  • RS-4851
  • Alarm input8-ch alarm inputs
  • Alarm output2
  • TF cardMax to 128GB
  • Indoor station/General
  • Power consumption≤ 8 W
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 90%
  • Dimension (L x W x H)175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
