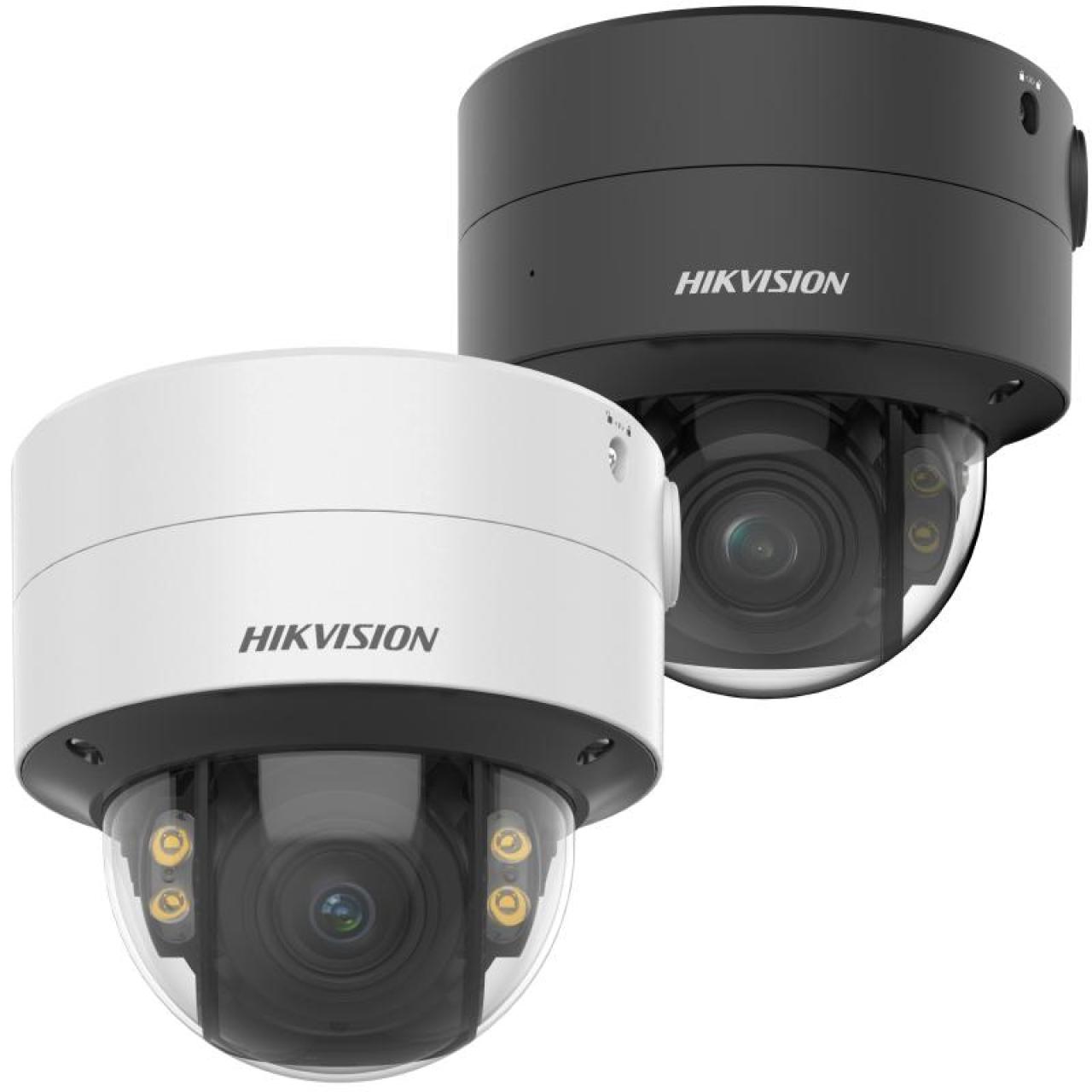

4 MP ColorVu Motorized Varifocal Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • 24/7 colorful imaging
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67) and vandal resistant (IK10)

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CD2747G2T-LZS(2.8-12mm)(C)
DS-2CD2747G2T-LZS
Data Sheet

Specification

  • Camera
  • Image Sensor 1/1.8" Progressive Scan CMOS
  • Max. Resolution 2688 × 1520
  • Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time 1/3 s to 1/100,000 s
  • Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Day & Night 24/7 color imaging
  • Lens
  • Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV 2.8 to 12 mm, horizontal FOV 105.4° to 56.4°, vertical FOV 53.9° to 31.6°, diagonal FOV 131.8° to 65.1°
  • Lens Mount Integrated
  • Focus Auto,Semi-auto,Manual
  • Iris Type DC iris
  • Aperture F1.0
  • Depth of Field 1.9 m to ∞
  • DORI
  • DORI D: 66.8 m to 110.4 m, O: 26.5 m to 43.8 m, R: 13.4 m to 22.1 m, I: 6.7 m to 11 m
  • Illuminator
  • Supplement Light Type White Light
  • Supplement Light Range Up to 40 m
  • Smart Supplement Light Yes
  • Video
  • Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Video Compression Main stream: H.265/H.264/H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile,Main Profile,High Profile
  • H.265 Type Main Profile
  • Bit Rate Control VBR,CBR
  • Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 1 fixed region(s) for main stream and sub-stream
  • Audio
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering Yes
  • Network
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
  • User/Host Up to 32 users 3 user levels: administrator, operator, and user
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • Image Parameters Switch Yes
  • Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR) 130 dB
  • SNR ≥ 52 dB
  • Image Enhancement BLC,HLC,3D DNR
  • Privacy Mask 4 regions of privacy mask
  • Interface
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Audio 1 input (line in), 2-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 2-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
  • Reset Key Yes
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
  • Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection
  • Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,trigger alarm output,white light flashing
  • Deep Learning Function
  • Face Capture Yes
  • General
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Power 12 VDC ± 25%, 0.9 A, max. 10.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
  • With Package Weight Approx. 2150 g (4.6 lb.)
  • Dimension Ø155 mm × 152 mm (Ø6.1" × 6.0")
  • Package Dimension 227 mm × 198 mm × 220 mm (8.9" × 7.8" × 8.7")
  • Weight Approx. 1600 g (3.4 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General Function Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
  • Approval
  • EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
  • Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Day & Night
24/7 color imaging
Lens
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 105.4° to 56.4°, vertical FOV 53.9° to 31.6°, diagonal FOV 131.8° to 65.1°
Lens Mount
Integrated
Focus
Auto,Semi-auto,Manual
Iris Type
DC iris
Aperture
F1.0
Depth of Field
1.9 m to ∞
DORI
DORI
D: 66.8 m to 110.4 m, O: 26.5 m to 43.8 m, R: 13.4 m to 22.1 m, I: 6.7 m to 11 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
Video
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
VBR,CBR
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region(s) for main stream and sub-stream
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
130 dB
SNR
≥ 52 dB
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
4 regions of privacy mask
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio
1 input (line in), 2-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 2-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Scene change detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,trigger alarm output,white light flashing
Deep Learning Function
Face Capture
Yes
General
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Power
12 VDC ± 25%, 0.9 A, max. 10.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
With Package Weight
Approx. 2150 g (4.6 lb.)
Dimension
Ø155 mm × 152 mm (Ø6.1" × 6.0")
Package Dimension
227 mm × 198 mm × 220 mm (8.9" × 7.8" × 8.7")
Weight
Approx. 1600 g (3.4 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Approval
EMC
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013,IK10: IEC 62262:2002
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.18_240826
Network Camera-V5.7.18 240826 Release Note-G5
Applied to:
DS-2CD2747G2T-LZS(2.8-12mm)(C)
