DS-2CD2146G1-I(S)

EOL

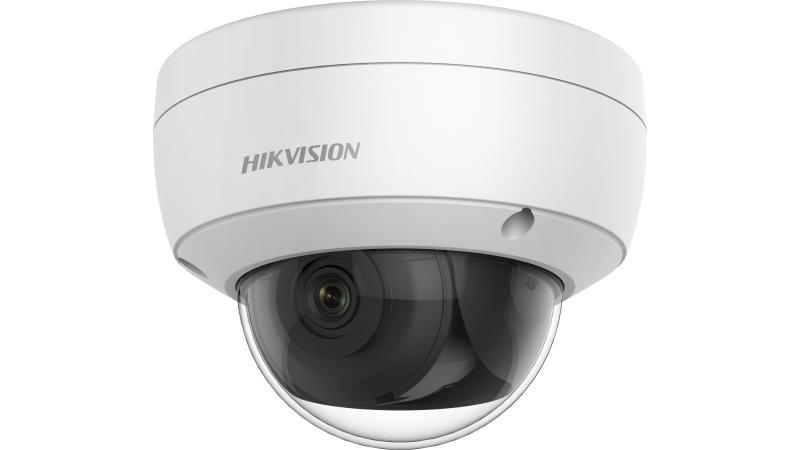

4 MP AcuSense Fixed Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • False alarm reduction through human and vehicle target classification based on deep learning
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Robust structure design with full metal materials
View Less
View more

Available models:

DS-2CD2146G1-IS(2.8mm)
DS-2CD2146G1-IS(4mm)
DS-2CD2146G1-IS(6mm)
DS-2CD2146G1-I(S)
EOL

Specification

  • Camera
  • Image Sensor 1/2.7" Progressive Scan CMOS
  • Min. Illumination Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Day &Night IR cut filter
  • Wide Dynamic Range 120dB
  • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • DNR 3D DNR
  • Lens
  • Lens 2.8/4/6 mm
  • Auto-Iris No
  • Aperture F1.6
  • Focus Fixed
  • FOV 2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°,4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°,6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°
  • Lens Mount M12
  • Illuminator
  • IR Range Up to 30 m
  • Wavelength 850 nm
  • Video
  • Max. Resolution 2688 × 1520
  • Main Stream 50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720),60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub Stream 50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • Video Bit Rate 32 Kbps to 16 Mbps
  • SVC H.265 encoding and H.264 encoding support
  • Audio
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8kHz/16kHz
  • Smart Feature-Set
  • Behavior Analysis Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification
  • Region of Interest Support 1 fixed region for main stream and sub stream separately
  • Image
  • Image Enhancement BLC/3D DNR
  • Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In(-S)
  • Network
  • Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live View Up to 6 channels
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm Trigger Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Interface
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio 1 audio input (line in/mic in), 1 audio output, mono sound
  • Alarm 1 alarm input, 1 alarm output
  • On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Compression Standard
  • H.264+ No
  • H.265+ No
  • General
  • Firmware Version V5.5.61
  • General Function One-key reset, anti-filter
  • Réinitialiser Yes
  • Startup and Operating Conditions -30 °C to +50 °C (-22 °F to +122 °F), humidity 95% or less (non-condensing)
  • Alimentation 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Power Consumption and Current 12 VDC, 0.7 A, max: 8.5 W,PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max: 10 W
  • Material Front cover: metal, back cover: metal
  • Dimensions Camera: Φ 121.4 × 92.2 mm (Φ 4.8" × 3.6")
  • Weight Camera: 600 g (1.3 lb.),With package: 760 g (1.7 lb.)
  • Impact Protection IP67 (If the camera is installed outdoor, the bracket DS-1253ZJ-M should be used together with other pendant mounting bracket or wall mounting bracket to reduce IR reflective in the rainy day)
  • Interface Protection IK10

Specification

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Applied to:
DS-2CD2146G1-IS(2.8mm)
DS-2CD2146G1-IS(4mm)
DS-2CD2146G1-IS(6mm)
