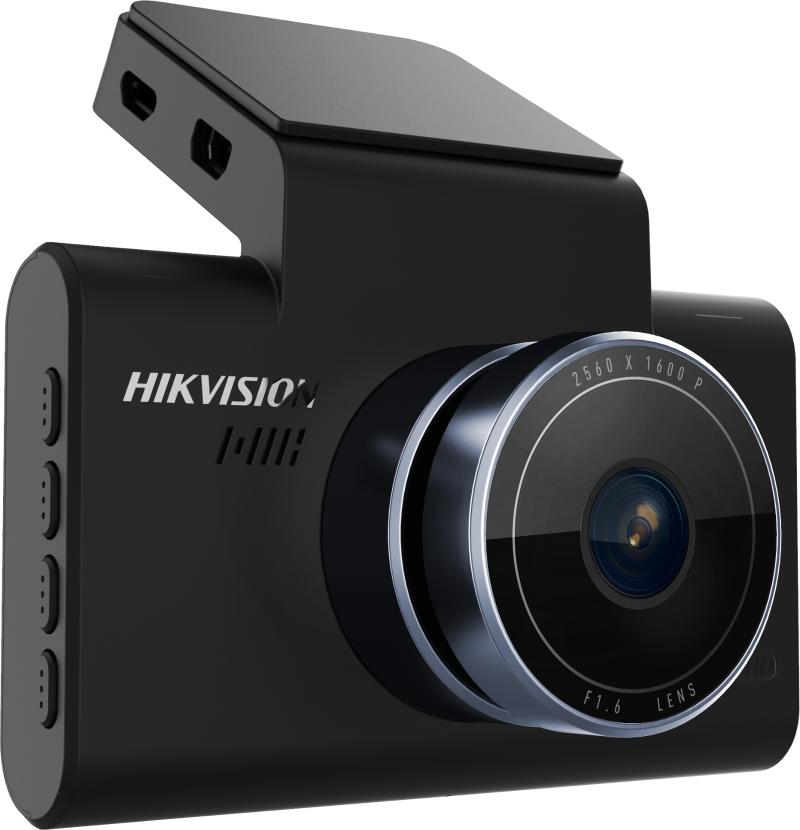

AE-DC5313-C6

1600P Dashcam with 4”Screen

  • Up to 1600P high resolution, gold wide angle up to 130°.
  • F1.6 super large aperture offer a perfect night image.
  • Support built-in MIC and speaker for audio in and out.
  • Display: 3 inches IPS screen, Resolution : 640*480.
  • Built-in WIFI module and WIFI AP function supported.
  • Built-in G-Sensor module, support video recording linkage at car crash or strong vibration. (Linkage video record can be configured be no-overwritten)
  • Micro SD card for video recording, up to 256GB. (Overwriting supported)
  • Phone App: live view, record playback and parameter configuration.
  • Voice recognition supported : Snapshot, Recording on, Recording off.
  • ADAS supported: “Traffic light turn green”, “Speed limit recognition”, “Front car start remind”.
  • Easy installation and user friendly, plug and play. (Automatically recording after power on)
  • Low power consumption and high performance.

View Less
View more
Data Sheet
Sales Inquiry

Available models:

AE-DC5313-C6
AE-DC5313-C6
Data Sheet

Specification

  • Camera
  • Image SensorOS 05A20
  • Angle Adjustmentadjustable up and down, left and right angles 15°
  • Power-off MemoryYES
  • Lens
  • Lens TypeG+P
  • ApertureF1.6
  • Wi-Fi
  • Frequency Range2412-2472MHZ
  • Channel Bandwidth 20MHZ/40MHZ
  • Image
  • Wide Dynamic Range (WDR)YES
  • Image EnhancementYES
  • Interface
  • Built-in MicrophoneYES
  • Built-in SpeakerYES
  • Extension Interface Mini USB(4G)
  • General
  • GPSNO
  • WiFi2.4G
  • Wi-Fi SupportYES
  • Resolution1600P@30fps, 1600P@25fps; 1440P@30fps, 1440P@25fps; 1080P@60fps,1080P@30fps, 1080P@25fps
  • Max. Resolution1600P@30fps
  • Video CompressionH.265
  • FOV130° (D), 109° (H)
  • Camera Dimension90mm x 88mm x 70mm (3.6" x 3.5" x 2.8")
  • Camera WeightApprox. 125g (0.3lb)
  • Software ResetYES
  • Online UpgradeYES
  • Power Consumption and CurrentApprox. 3.5 W
  • Power Supply5V DC, 2 A
  • Power InterfaceMicro
  • Working temperature-20 °C to 70 °C (-4 °F to 158 °F)
  • Working humidity95%(Max)
  • Storage TF card, 32GB to 128 GB
  • Display3 inches (640*480)
  • OSDDisplay time, date, etc.
  • Image formatJPEG
  • Local StorageNO
  • ADASYES
  • Speech recognitionYES
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
OS 05A20
Angle Adjustment
adjustable up and down, left and right angles 15°
Power-off Memory
YES
Lens
Lens Type
G+P
Aperture
F1.6
Wi-Fi
Frequency Range
2412-2472MHZ
Channel Bandwidth
20MHZ/40MHZ
Wide Dynamic Range (WDR)
YES
Image Enhancement
YES
Interface
Built-in Microphone
YES
Built-in Speaker
YES
Extension Interface
Mini USB(4G)
General
GPS
NO
WiFi
2.4G
Wi-Fi Support
YES
Resolution
1600P@30fps, 1600P@25fps; 1440P@30fps, 1440P@25fps; 1080P@60fps,1080P@30fps, 1080P@25fps
Max. Resolution
1600P@30fps
Video Compression
H.265
FOV
130° (D), 109° (H)
Camera Dimension
90mm x 88mm x 70mm (3.6" x 3.5" x 2.8")
Camera Weight
Approx. 125g (0.3lb)
Software Reset
YES
Online Upgrade
YES
Power Consumption and Current
Approx. 3.5 W
Power Supply
5V DC, 2 A
Power Interface
Micro
Working temperature
-20 °C to 70 °C (-4 °F to 158 °F)
Working humidity
95%(Max)
Storage
TF card, 32GB to 128 GB
Display
3 inches (640*480)
OSD
Display time, date, etc.
Image format
JPEG
Local Storage
NO
ADAS
YES
Speech recognition
YES
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image SensorOS 05A20
  • Angle Adjustmentadjustable up and down, left and right angles 15°
  • Power-off MemoryYES
Lens
  • Lens TypeG+P
  • ApertureF1.6
Wi-Fi
  • Frequency Range2412-2472MHZ
  • Channel Bandwidth 20MHZ/40MHZ
  • Wide Dynamic Range (WDR)YES
  • Image EnhancementYES
Interface
  • Built-in MicrophoneYES
  • Built-in SpeakerYES
  • Extension Interface Mini USB(4G)
General
  • GPSNO
  • WiFi2.4G
  • Wi-Fi SupportYES
  • Resolution1600P@30fps, 1600P@25fps; 1440P@30fps, 1440P@25fps; 1080P@60fps,1080P@30fps, 1080P@25fps
  • Max. Resolution1600P@30fps
  • Video CompressionH.265
  • FOV130° (D), 109° (H)
  • Camera Dimension90mm x 88mm x 70mm (3.6" x 3.5" x 2.8")
  • Camera WeightApprox. 125g (0.3lb)
  • Software ResetYES
  • Online UpgradeYES
  • Power Consumption and CurrentApprox. 3.5 W
  • Power Supply5V DC, 2 A
  • Power InterfaceMicro
  • Working temperature-20 °C to 70 °C (-4 °F to 158 °F)
  • Working humidity95%(Max)
  • Storage TF card, 32GB to 128 GB
  • Display3 inches (640*480)
  • OSDDisplay time, date, etc.
  • Image formatJPEG
  • Local StorageNO
  • ADASYES
  • Speech recognitionYES
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.2.4_221209
Applied to:
AE-DC5313-C6
