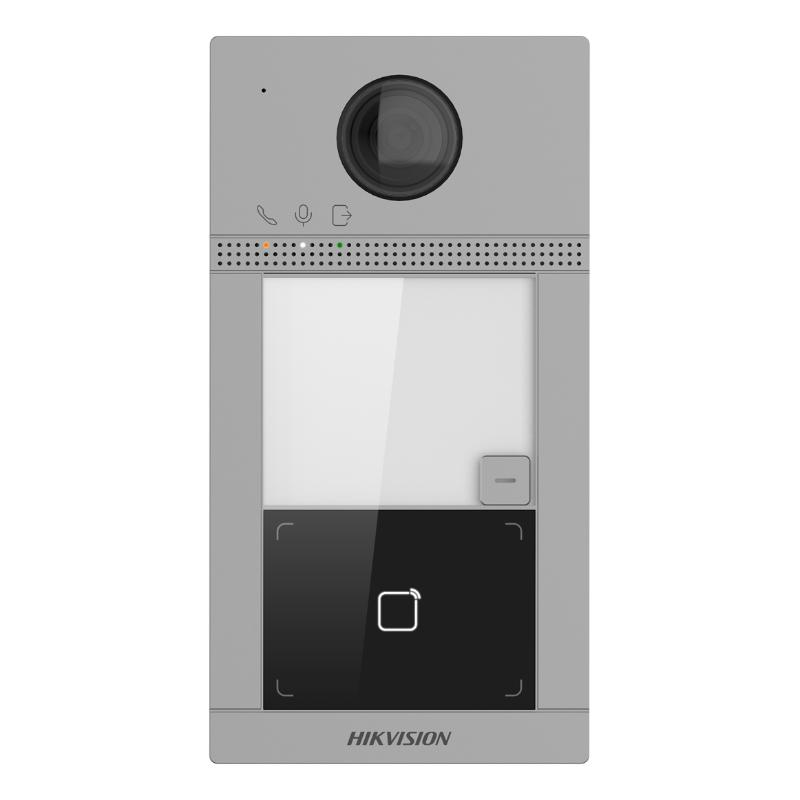

1 Button Metal Villa Door Station

  • Support Wifi, convenient setting up and no wiring required
  • Support web configuration
  • Aluminum alloy, Nice industry design, IP65, IK08, 3 indicator integrated
  • Internal Mifare card reader, 1-ch Indoor station access control
  • Noise suppression and echo cancellation
  • 2MP HD Camera with IR supplement
  • Standard PoE/12 VDC

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KV8113-WME1
DS-KV8113-WME1
Data Sheet

Specification

  • Display parameters
  • Size/
  • Operation method/
  • Type/
  • Video parameters
  • Supplement lightIR supplement
  • Lens1
  • FOVHorizontal: 129° Vertical: 75°
  • Simultaneous live viewUp to 3 channels
  • PixelMain stream : 1920 × 1080 Sub stream : 720 × 480
  • Audio parameters
  • Audio qualityNoise suppression and echo cancellation
  • Network parameters
  • Communication protocolTCP/IP, RTSP
  • Wired network10/100 Mbps self-adaptive Ethernet
  • Wi-Fi/
  • Bluetooth/
  • Device interfaces
  • Network interface1
  • Exit button2
  • Lock control2
  • Door contact input2
  • Power interface1
  • General
  • Button4 buttons
  • InstallationSurface mounting
  • Indicator3
  • Weight385g
  • Protective levelIP65, IK08
  • Power supply methodIEEE802.3af, standard PoE 12 VDC
  • Working temperature-40° C to +55° C(-40° F to 131° F)
  • Working humidity10% to 95%
  • Dimensions174 mm × 91 mm × 29 mm
  • Battery/
  • Application environmentOutdoor
  • Power consumption＜ 10 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Display parameters
Size
/
Operation method
/
Type
/
Video parameters
Supplement light
IR supplement
Lens
1
FOV
Horizontal: 129° Vertical: 75°
Simultaneous live view
Up to 3 channels
Pixel
Main stream : 1920 × 1080 Sub stream : 720 × 480
Audio parameters
Audio quality
Noise suppression and echo cancellation
Network parameters
Communication protocol
TCP/IP, RTSP
Wired network
10/100 Mbps self-adaptive Ethernet
Wi-Fi
/
Bluetooth
/
Device interfaces
Network interface
1
Exit button
2
Lock control
2
Door contact input
2
Power interface
1
General
Button
4 buttons
Installation
Surface mounting
Indicator
3
Weight
385g
Protective level
IP65, IK08
Power supply method
IEEE802.3af, standard PoE 12 VDC
Working temperature
-40° C to +55° C(-40° F to 131° F)
Working humidity
10% to 95%
Dimensions
174 mm × 91 mm × 29 mm
Battery
/
Application environment
Outdoor
Power consumption
＜ 10 W
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Display parameters
  • Size/
  • Operation method/
  • Type/
Video parameters
  • Supplement lightIR supplement
  • Lens1
  • FOVHorizontal: 129° Vertical: 75°
  • Simultaneous live viewUp to 3 channels
  • PixelMain stream : 1920 × 1080 Sub stream : 720 × 480
Audio parameters
  • Audio qualityNoise suppression and echo cancellation
Network parameters
  • Communication protocolTCP/IP, RTSP
  • Wired network10/100 Mbps self-adaptive Ethernet
  • Wi-Fi/
  • Bluetooth/
Device interfaces
  • Network interface1
  • Exit button2
  • Lock control2
  • Door contact input2
  • Power interface1
General
  • Button4 buttons
  • InstallationSurface mounting
  • Indicator3
  • Weight385g
  • Protective levelIP65, IK08
  • Power supply methodIEEE802.3af, standard PoE 12 VDC
  • Working temperature-40° C to +55° C(-40° F to 131° F)
  • Working humidity10% to 95%
  • Dimensions174 mm × 91 mm × 29 mm
  • Battery/
  • Application environmentOutdoor
  • Power consumption＜ 10 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.1.35_210420
Applied to:
DS-KV8113-WME1
