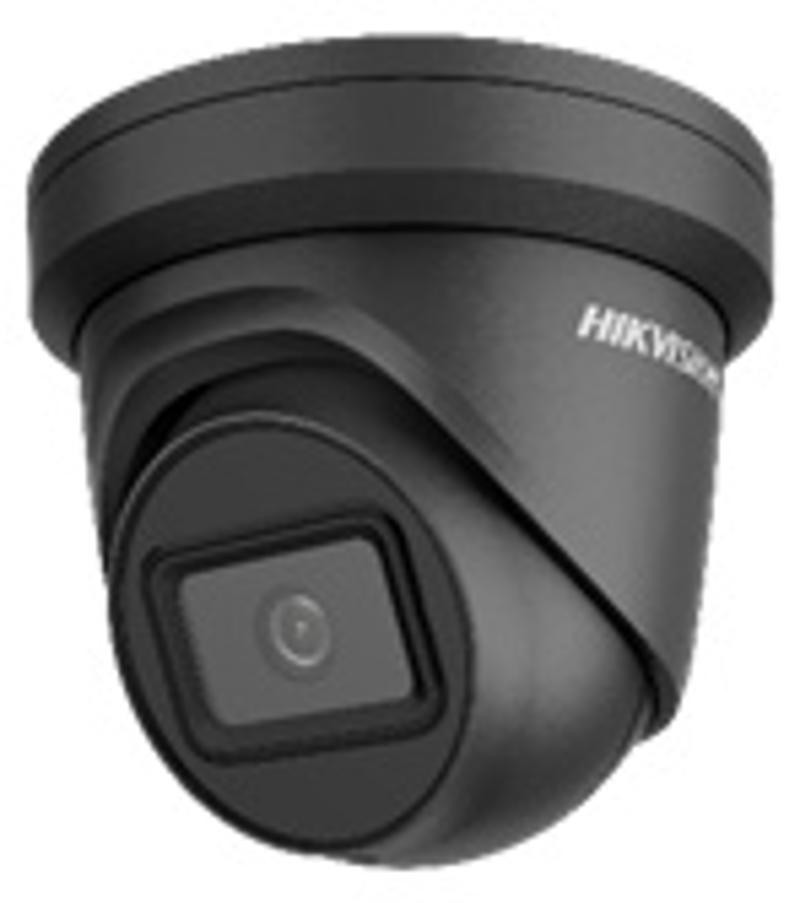

DS-2CD2385G1-IB

EOL

View Less

Available models:

DS-2CD2385G1-IB(2.8mm)

Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
FocusFixed
Lens Type2.8mm
FOVhorizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131°
ApertureF1.6
Lens MountM16

Illuminator
IR RangeUp to 30 m
Wavelength850 nm

Video
Max. Resolution3840 × 2160
Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240),
Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.266,
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Region of Interest (ROI)Support 1 fixed region for main stream and sub stream separately

Network
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/HostUp to 32 users,3 levels: Administrator, Operator and User,
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm TriggerMotion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Day/Night SwitchDay/Night/Auto/Schedule
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image SettingsRotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser and client software

Interface
On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face DetectionYes
Exception DetectionScene change detection

General
Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
Firmware VersionV5.5.61
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3),
Power Consumption and Current12 VDC, 0.7 A, max: 7.5 W,PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 9 W,
Camera DimensionCamera: Φ 138.3 × 125 mm (5.4″ × 4.9″)
Camera WeightCamera: 725 g (1.6 lb.),With package: 966 g (2.1 lb.),

Approval
ProtectionIP67

Specification

Camera

Image Sensor

1/2" Progressive Scan CMOS

Min. Illumination

Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120dB

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Focus

Fixed

Lens Type

2.8mm

FOV

horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131°

Aperture

F1.6

Lens Mount

M16

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Video

Max. Resolution

3840 × 2160

Main Stream

50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240),

Video Compression

Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.266,

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Region of Interest (ROI)

Support 1 fixed region for main stream and sub stream separately

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets

User/Host

Up to 32 users,3 levels: Administrator, Operator and User,

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Network Storage

Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+

Alarm Trigger

Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night Switch

Day/Night/Auto/Schedule

DNR

3D DNR

Image Enhancement

BLC/3D DNR/HLC

Image Settings

Rotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser and client software

Interface

On-board Storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, intrusion detection, unattended baggage detection, object removal detection

Face Detection

Yes

Exception Detection

Scene change detection

General

Linkage Method

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email

Firmware Version

V5.5.61

Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General Function

Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening

Startup and Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3),

Power Consumption and Current

12 VDC, 0.7 A, max: 7.5 W,PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 9 W,

Camera Dimension

Camera: Φ 138.3 × 125 mm (5.4″ × 4.9″)

Camera Weight

Camera: 725 g (1.6 lb.),With package: 966 g (2.1 lb.),

Approval

Protection

IP67
