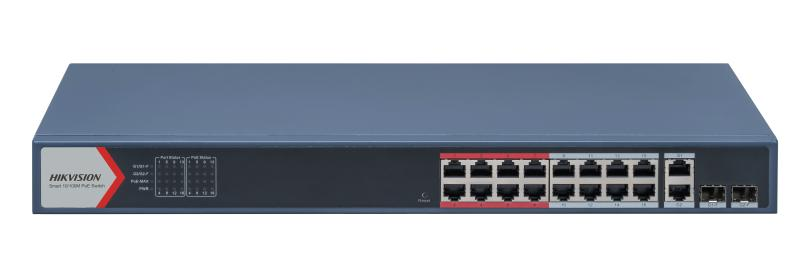

16 Port Fast Ethernet Smart POE Switch

16 × 10/100 Mbps PoE ports, 2 × Gigabit combos.
Total PoE Power Budget 230 W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP Loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission
6 kV Surge Protection

View Less

Data Sheet

DS-3E1318P-EI

Specification
Resources
Accessories

Data Sheet

General
ShellMetal material
Net Weight2.59 kg (5.71 lb)
Gross Weight3.68 kg (8.11 lb)
Dimensions (W × H × D)440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply 100-240 VAC, 50/60 Hz, Max. 4 A
Installation ModeRack (equipped with mounting ears)
Max. Power Consumption250 W
Power Consumption in Idle20 W
Surge Protection6 kV

Network Parameters
Ports16 × 10/100 Mbps PoE port,2 × Gigabit combo
MAC Address Table16 K
Switching CapacityWhole-Device Performance: 9.2 Gbps Port Performance: 7.2 Gbps
Packet Forwarding RateWhole-Device Performance: 6.84 Mpps Port Performance: 5.36 Mpps
Internal Cache4 Mbits

PoE Power Supply
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE PortPoE: Ports 1 to 16
Max. Port Power30 W
PoE Power Budget230 W

Software Function
Long RangePorts 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition.
VIP PortPorts 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Port IsolationPorts 1 to 16: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation groups.
Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.
VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.

Approval
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
