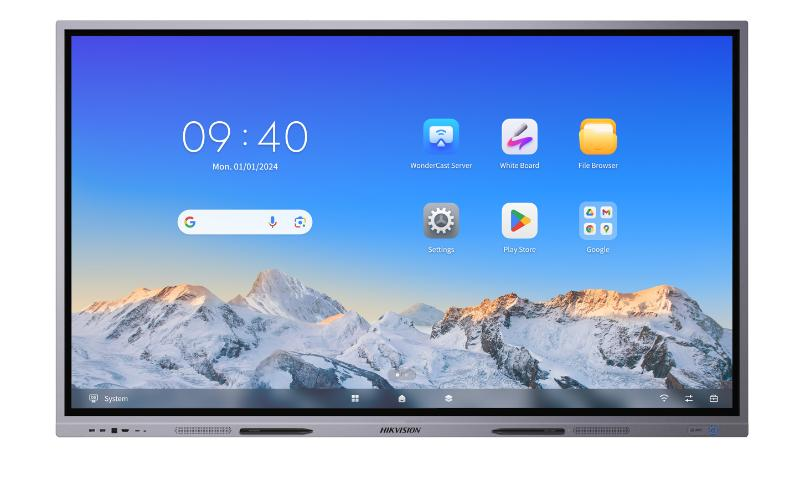

75-inch 4K Interactive Display

  • UHD 4K display with resolution of 3840 × 2160.
  • Anti-glare and anti-blocking design to ensure smooth interaction.
  • Dual systems of Android and Windows（Optional with OPS） saving cost and easy to use, video conference software are recommonded to run under Windows system.
  • Quick response, at most 50-points touch control and smooth writing experience.
  • Built-in network switch chip saves a network switch.
  • All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
  • EDLA Certified
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-D5C75RB/A(EDLA)
DS-D5C75RB/A
Data Sheet

Specification

  • Product Model
  • Product ModelDS-D5C75RB/A
  • General
  • VESA800 mm × 400 mm （4 × M8-25 mm）
  • Product dimensions1713.2 mm × 1019 mm × 82.5 mm
  • AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control.
  • Package Dimensions (W × H × D)1937 mm × 264 mm × 1222 mm
  • Net Weight50.23 kg
  • Gross Weight66.62 kg
  • Display
  • Screen Size75 inch
  • BacklightDLED
  • Pixel Pitch0.14325(H) × 0.42975(V) mm
  • Resolution3840 × 2160 @60 Hz
  • Brightness400 cd/m² （Typ.）
  • Color Depth10 bit
  • Display Color1.07 G
  • Response Time5 ms
  • Panel TypeVA
  • Contrast Ratio5000:1 (Static) 30,000:1 (Dynamic)
  • Color Gamut72% NTSC (CIE1931) (Typ.)
  • Refresh Rate60 Hz
  • Viewing Angle178° (H)/178° (V)
  • Aspect Ratio16:9
  • Surface Hardness9H (Pencil) 7 (Mohs)
  • Surface GlassAnti-Glare Glass
  • Surface Haze25% Haze
  • Glass Bonding MethodZero Lamination
  • Display Area1650.24mm x 928.26mm
  • Working Duration7 × 16 H
  • Transmittance88% ± 3
  • Lifespan50,000 hours
  • Touch
  • TypeInfrared Touch Screen
  • Touch PointUp to 50-point multi-touch
  • Touch Response Time≤ 2 ms
  • Minimum Touch Object≥ 1.5 mm (≥ 90% touching area)
  • Touch Precision± 0.5 mm (≥ 90% touching area)
  • Touch Resolution32767 × 32767
  • Built-in System
  • Operation SystemAndroid 13.0
  • Memory8 GB
  • Built-in Storage128 GB
  • ProcessorQuad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
  • GPUMali-G610 MC4
  • HDCP Version2.3
  • Internal Function
  • LoudspeakerBuilt-in 2 × 20 W+25W loudspeaker;
  • BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
  • NFCSupport screen mirroring by Android phones
  • Light SensorYes
  • Interface
  • Video & Audio InputHDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
  • Video & audio outputHDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
  • Control interfaceTOUCH-USB 3.0 × 3, RS232 × 1
  • Network InterfaceLAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax  2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
  • Data Transmission InterfaceUSB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
  • Power
  • Power Supply100 to 240 VAC, 50/60 Hz
  • Standby Consumption≤ 0.5 W
  • Average Consumption< 150W
  • Working Environment
  • Working Temperature0 °C to 40 °C (32 °F to 104°F)
  • Working Humidity10%~90% RH
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Product Model
Product Model
DS-D5C75RB/A
General
VESA
800 mm × 400 mm （4 × M8-25 mm）
Product dimensions
1713.2 mm × 1019 mm × 82.5 mm
Accessory
Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control.
Package Dimensions (W × H × D)
1937 mm × 264 mm × 1222 mm
Net Weight
50.23 kg
Gross Weight
66.62 kg
Display
Screen Size
75 inch
Backlight
DLED
Pixel Pitch
0.14325(H) × 0.42975(V) mm
Resolution
3840 × 2160 @60 Hz
Brightness
400 cd/m² （Typ.）
Color Depth
10 bit
Display Color
1.07 G
Response Time
5 ms
Panel Type
VA
Contrast Ratio
5000:1 (Static) 30,000:1 (Dynamic)
Color Gamut
72% NTSC (CIE1931) (Typ.)
Refresh Rate
60 Hz
Viewing Angle
178° (H)/178° (V)
Aspect Ratio
16:9
Surface Hardness
9H (Pencil) 7 (Mohs)
Surface Glass
Anti-Glare Glass
Surface Haze
25% Haze
Glass Bonding Method
Zero Lamination
Display Area
1650.24mm x 928.26mm
Working Duration
7 × 16 H
Transmittance
88% ± 3
Lifespan
50,000 hours
Touch
Type
Infrared Touch Screen
Touch Point
Up to 50-point multi-touch
Touch Response Time
≤ 2 ms
Minimum Touch Object
≥ 1.5 mm (≥ 90% touching area)
Touch Precision
± 0.5 mm (≥ 90% touching area)
Touch Resolution
32767 × 32767
Built-in System
Operation System
Android 13.0
Memory
8 GB
Built-in Storage
128 GB
Processor
Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
GPU
Mali-G610 MC4
HDCP Version
2.3
Internal Function
Loudspeaker
Built-in 2 × 20 W+25W loudspeaker;
Bluetooth
Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
NFC
Support screen mirroring by Android phones
Light Sensor
Yes
Interface
Video & Audio Input
HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
