Two wire main unit

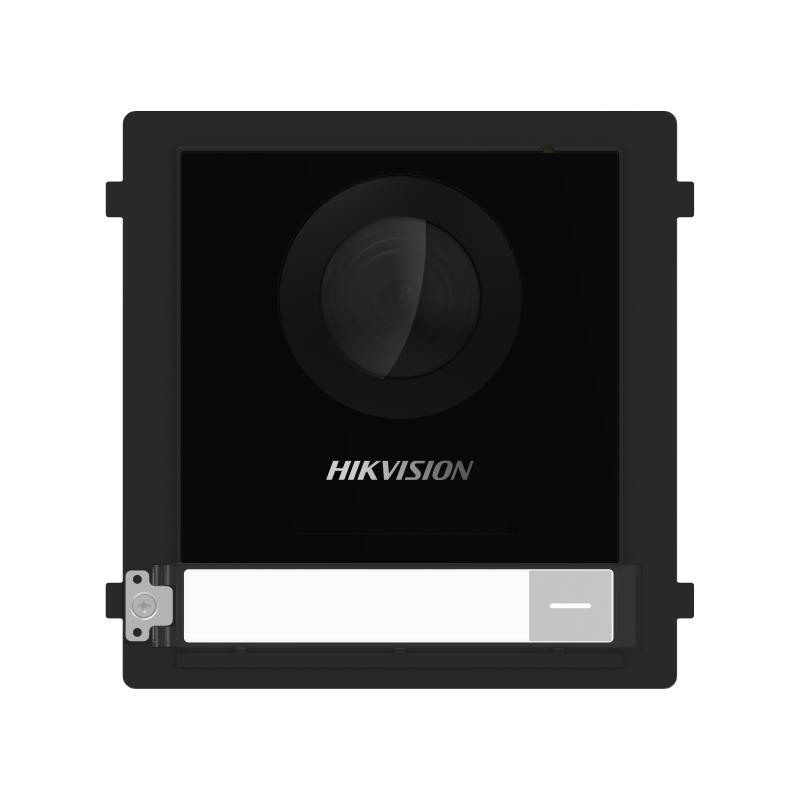

Modular door station Main unit, needs mounting bracket
2MP HD Camera, Fish eye, IR Supplement
1 Call physical Button, 2 lock relays, 4-ch alarm input
Video intercom to indoor station and master station
WEB Configuration

View Less

Data Sheet

DS-KD8003-IME2(B)

Specification
Resources
Accessories

Data Sheet

System parameters
Operating systemEmbedded Linux operation system
ROM32 MB
RAM256 MB
CPUEmbedded Processor

Display parameters
Screen sizeNA
Operation methodNA
TypeNA
ResolutionNA

Video parameters
Supplement lightLow illumination, IR supplement lights
Video standardH.264
Lens1
FOVHorizontal: 146°, Vertical: 82°
WDRSupport
Resolution2 MP

Audio parameters
Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker
Audio compression bitrate64 Kbps
Audio qualityNoise suppression and echo cancellation
Volume adjustmentAdjustable

Capacity
Fingerprint capacity/
User capacity2000
Face capacityNA
Linked indoor station capacity500
Event capacity/
Sub door station capacity16

Network parameters
Communication protocolNA
Wired networkNA
Wi-FiNA
BluetoothNA
3G/4GNA

Device interfaces
Alarm input4 (2 exit buttons and 2 door contacts by default)
Network interfaceNA
TAMPER1
Exit button2 (2 for lock control)
Door contact input2
RS-4851 (1 for Hikvision's sub module communication)
WiegandNA
TF cardNA
Alarm outputNA
Lock control2 (2 relay, max to 30 VDC, 2 A)
USBNA
Two-wire IP interface1

General
Button1
InstallationSurface mounting & flush mounting
Indicator0
Weight373.5 g
Protective levelIP65
Working temperature-40° C to 60° C (-22° F to 140° F)
Working humidity10% to 90%
Dimensions100 mm × 98 mm × 42 mm
Battery/
Power supplyPowered by KAD704 or KAD706 series distributor
Application environmentOutdoor
Power consumption≤ 4 W
LanguageEnglish,French,Portuguese,Spanish,Russian,German,Italian,Polish,Arabic,Turkish,Vietnamese,Hungarian,Dutch,Romanian,Czech,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovakia,BrazilianPortuguese

System parameters

Operating system

Embedded Linux operation system

ROM

32 MB

RAM

256 MB

CPU

Embedded Processor

Display parameters

Screen size

Operation method

Type

Resolution

Video parameters

Supplement light

Low illumination, IR supplement lights

Video standard

H.264

Lens

FOV

Horizontal: 146°, Vertical: 82°

WDR

Support

Resolution

2 MP

Audio parameters

Audio compression standard

G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1

Audio input

Built-in omnidirectional microphone

Audio output

Built-in loudspeaker

Audio compression bitrate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Volume adjustment

Adjustable

Capacity

Fingerprint capacity

User capacity

2000

Face capacity

Linked indoor station capacity

500

Event capacity

Sub door station capacity

Network parameters

Communication protocol

Wired network

Wi-Fi

Bluetooth

3G/4G

Device interfaces

Alarm input

4 (2 exit buttons and 2 door contacts by default)

Network interface

TAMPER

Exit button

2 (2 for lock control)

Door contact input

RS-485

1 (1 for Hikvision's sub module communication)

Wiegand

TF card

Alarm output

Lock control

2 (2 relay, max to 30 VDC, 2 A)

USB

Two-wire IP interface

General

Button

Installation

Surface mounting & flush mounting

Indicator

Weight

373.5 g

Protective level

IP65

Working temperature

-40° C to 60° C (-22° F to 140° F)

Working humidity

10% to 90%

Dimensions

100 mm × 98 mm × 42 mm

Battery

Power supply

Application environment

Outdoor

Power consumption

≤ 4 W

Language

English,French,Portuguese,Spanish,Russian,German,Italian,Polish,Arabic,Turkish,Vietnamese,Hungarian,Dutch,Romanian,Czech,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovakia,BrazilianPortuguese
