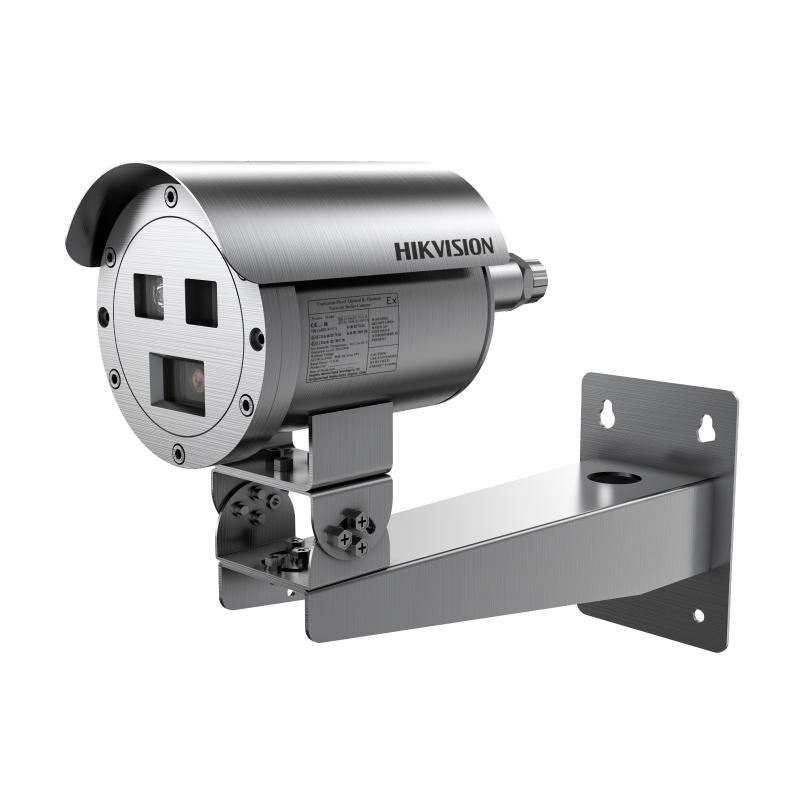

Explosion-Proof Thermographic Network Bullet Camera

  • High sensitivity sensor with 256 x 192 resolution
  • NETD is less than 40 mk (@25° C, F#=1.0)
  • Supports contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color
  • Powerful perimeter protection functions, based on intelligent algorithm: Line crossing, intrusion, region entrance & exit
  • High quality detector with 10 years warranty
  • 316L Stainless Steel enclosure, protecting camera in corrosive environments and extending reliability and longevity far beyond standard cameras
  • ATEX, IECEx, NEMA 4X Certificated
View Less
View more

Available models:

DS-2TD2528T-7/Q

Specification

  • Thermal
  • Max. Resolution256 × 192
  • Thermal Module
  • Image sensorVanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Interval12 μm
  • NETDless than 40 mk (@25°C), F#=1.0
  • MRAD1.71 mrad
  • Field of View24.9° × 18.7° (H × V)
  • Min. Focusing Distance0.5 m
  • ApertureF 1.0
  • Lens (Focal Length)7 mm
  • Response waveband8 μm to 14 μm
  • Optical Module
  • Max. Resolution2688 × 1520
  • Image Sensor 1/2.7" Progressive Scan CMOS
  • Min. IlluminationColor: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)
  • Field of View84.0° × 44.8°(H × V)
  • Aperture RangeF1.6
  • WDR120 dB
