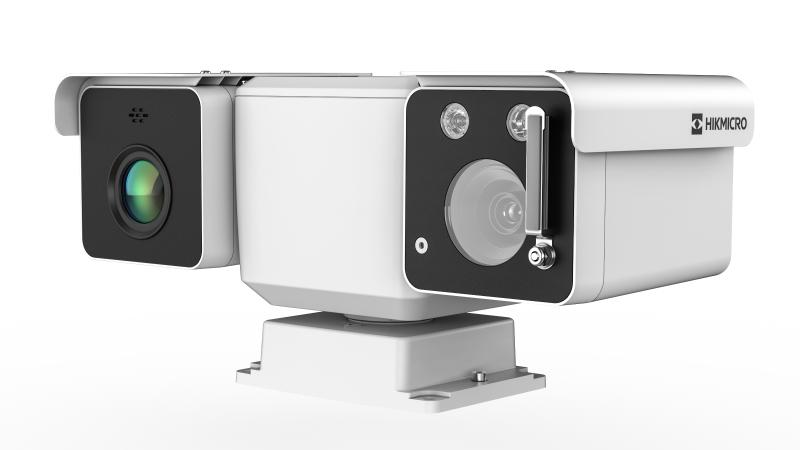

Bi-spectrum Thermography Mini Positioning system

Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance & exit
Temperature exception alarm for fire prevention
Fire detection algorithm
640 × 512 resolution 17 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
High quality detector with 10 years guarantee

View Less

Data Sheet

Available models:

HM-TD5567T-7/W

Specification
Resources
Accessories

Data Sheet

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution640 × 512
Pixel Pitch17 μm
Spectral Range8 μm to 14 μm
NETD≤ 35 mK (25°C, F# = 1.0)
Focal Length6.3 mm
IFOV2.7 mrad
ApertureF1.0
Field of View88.5°(H)*73.2°(V)
Min. Focusing Distance0.6 m
Digital Zoom×2, ×4, ×8

Optical Module
Image Sensor1/2.8" Progressive Scan CMOS
Resolution2688 × 1520, 4MP
Min. IlluminationColor: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)
Field of View58.4° × 33.8° (H × V) to 2.14° × 1.2° (H × V)
Focal Length4.8 to 153 mm, 32x
Aperture (Range)F1.2 to F4.4
Focus ModeSemi-auto, manual
Digital Zoom×2, ×4, ×8, ×16
Shutter Speed1 s to 1/100,000 s
WDR120 dB
Optical DefogYes

Image Effect
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.

PTZ
Movement RangePan: 360° Continuous Rotate; Tilt: From -90° to + 90° (auto flip)
Pan SpeedConfigurable, From 0.5°/s to 90°/s
Tilt SpeedConfigurable, From 0.5°/s to 40°/s
Proportional ZoomYes
Presets300
Patrol Scan8 patrols; Up to 32 presets per patrol
Power Off MemoryYes
ParkPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT StatusTurn On/Turn Off
Scheduled TaskPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Illuminator
IR DistanceUp to 30 m
IR Intensity and AngleAutomatically adjusted

Smart Function
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene.
Temperature Measurement3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature Range-20°C to 550°C (-4°F to 1022°F)
Temperature AccuracyMax (± 2°C, ±2%)
Fire DetectionDynamic fire and smoke detection, up to 10 fire points and 10 smoke points detectable.

Video and Audio
Main StreamOptical channel 50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288)
Sub-streamOptical channel 50 Hz: 25fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 576, 352 × 288) Thermal channel 50 fps (704 × 576, 640 × 512, 384 × 288)
Video CompressionMain stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264/MJPEG
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network StorageMicroSD/SDHC/SDXC card (up to 128 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users. 3 levels: administrator, operator, user
SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +

Interface
Alarm Input2-ch inputs (0 to 5 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionPreset/patrol scan/SD card record/relay output/smart capture/FTP upload/email linkage
Audio Input1
Audio Output1
Communication Interface1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface

General
Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply24 VDC
Power Consumption20 W
Working Temperature/Humidity-40°C to 70°C (-40°F to 158°F) 90% or less
WiperYes
Protection LevelIP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions321 mm × 194 mm × 153 mm(12.64" × 7.64" × 6.02")
WeightApprox. 4.8 kg (10.582 lb)

Detection Range Table/Wide Range Coverage
Detection Range for Humans (1.8×0.5m)185m
Detection Range for Vehicles (4.0×1.4m)568 m
Recognition Range for Humans (1.8×0.5m)46 m
Recognition Range for Vehicles (4.0×1.4m)142 m
Identification Range for Humans (1.8×0.5m)23 m
Identification Range for Vehicles (4.0×1.4m)71 m

Detection Range Table/Smart Function Range
VCA Range for Humans49 m
VCA Range for Vehicles147 m
Temperature Measurement Range for Object (2m×2m)148 m
Temperature Measurement Range for Object (1m×1m)74 m
Fire Detection Range for Object (2m×2m)371 m
Fire Detection Range for Object (1m×1m)185 m

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

640 × 512

Pixel Pitch

17 μm

Spectral Range

8 μm to 14 μm

NETD

≤ 35 mK (25°C, F# = 1.0)

Focal Length

6.3 mm

IFOV

2.7 mrad

Aperture

F1.0

Field of View

88.5°(H)*73.2°(V)

Min. Focusing Distance

0.6 m

Digital Zoom

×2, ×4, ×8

Optical Module

Image Sensor

1/2.8" Progressive Scan CMOS

Resolution

2688 × 1520, 4MP

Min. Illumination

Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)

Field of View

58.4° × 33.8° (H × V) to 2.14° × 1.2° (H × V)

Focal Length

4.8 to 153 mm, 32x

Aperture (Range)

F1.2 to F4.4

Focus Mode

Semi-auto, manual

Digital Zoom

×2, ×4, ×8, ×16

Shutter Speed

1 s to 1/100,000 s

WDR

120 dB

Optical Defog

Yes

Image Effect

Picture in Picture

Display partial image of thermal channel on the full screen of optical channel

Target Coloration

Yes. Supported in white hot and black hot mode.

PTZ

Movement Range

Pan: 360° Continuous Rotate; Tilt: From -90° to + 90° (auto flip)

Pan Speed

Configurable, From 0.5°/s to 90°/s

Tilt Speed

Configurable, From 0.5°/s to 40°/s

Proportional Zoom

Yes

Presets

300

Patrol Scan

8 patrols; Up to 32 presets per patrol

Power Off Memory

Yes

Park

Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

PT Status

Turn On/Turn Off

Scheduled Task

Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Illuminator

IR Distance

Up to 30 m

IR Intensity and Angle

Automatically adjusted

Smart Function

VCA

4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene.

Temperature Measurement

3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)

Temperature Range

-20°C to 550°C (-4°F to 1022°F)

Temperature Accuracy

Max (± 2°C, ±2%)

Fire Detection

Dynamic fire and smoke detection, up to 10 fire points and 10 smoke points detectable.

Video and Audio

Main Stream

Optical channel 50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288)

Sub-stream

Optical channel 50 Hz: 25fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 576, 352 × 288) Thermal channel 50 fps (704 × 576, 640 × 512, 384 × 288)

Video Compression

Main stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264/MJPEG

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Network Storage

MicroSD/SDHC/SDXC card (up to 128 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

API

ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)

Simultaneous Live View

Up to 20 channels

User/Host level

Up to 32 users. 3 levels: administrator, operator, user

Security

User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Client

iVMS-4200, Hik-Connect

Web Browser

Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +

Interface

Alarm Input

2-ch inputs (0 to 5 VDC)

Alarm Output

2-ch relay outputs, alarm response actions configurable

Alarm Action

Preset/patrol scan/SD card record/relay output/smart capture/FTP upload/email linkage

Audio Input

Audio Output

Communication Interface

1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface

General

Menu Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power Supply

24 VDC

Power Consumption

20 W

Working Temperature/Humidity

-40°C to 70°C (-40°F to 158°F) 90% or less

Wiper

Yes

Protection Level

IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection

Dimensions

321 mm × 194 mm × 153 mm(12.64" × 7.64" × 6.02")

Weight

Approx. 4.8 kg (10.582 lb)

Detection Range Table/Wide Range Coverage

Detection Range for Humans (1.8×0.5m)

185m

Detection Range for Vehicles (4.0×1.4m)

568 m

Recognition Range for Humans (1.8×0.5m)

46 m

Recognition Range for Vehicles (4.0×1.4m)

142 m

Identification Range for Humans (1.8×0.5m)

23 m

Identification Range for Vehicles (4.0×1.4m)

71 m

Detection Range Table/Smart Function Range

VCA Range for Humans

49 m

VCA Range for Vehicles

147 m

Temperature Measurement Range for Object (2m×2m)

148 m

Temperature Measurement Range for Object (1m×1m)

74 m

Fire Detection Range for Object (2m×2m)

371 m

Fire Detection Range for Object (1m×1m)

185 m
