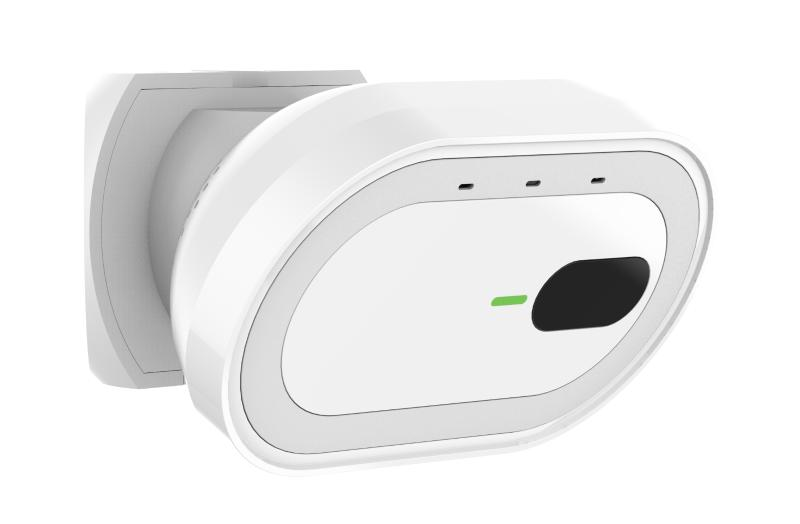

Thermal Presence Detector

160× 120 resolution, 12 μm, VOx UFPA, NETD < 50 mK (25°C, F1.1).
Built-in Radar to support Fall Detection
Support Out of Room Detection, Out of Bed Detection, Exit without Return and People Overstay Detection.
Audio exception alarm for alert when the elderly and patients scream
Support built-in mic and built-in speaker
Work environment: -20℃~50℃，＜95% RH
Main application: the bedroom of nursing home

View Less

Data Sheet

Available models:

HM-TD1018-1/QR

Specification
Resources
Accessories

Data Sheet

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution160 × 120
Pixel Pitch12 μm
Spectral Range8 μm to 14 μm
NETD< 50 mK (25°C, F#=1.1)
Focal Length1.3 mm
Field of View90.0° (H)x65.2° (V)
Min. Focusing Distance0.01 m
ApertureF1.0

Video and Audio
Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub-streamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240)
Video CompressionH.264/H.265/MJPEG, H.265/MJPEG encoding support Main Profile, H.264 support Baseline/Main/High Profile

Network
ProtocolsIPv4,HTTP,HTTPS,Qos,FTP,SNMP,DDNS,TCP,PPPoE,RTSP,UPnP
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage
APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
ClientiVMS-4200/EZVIZ/HIK-CONNCET/HIK-CENTRAL
Web BrowserInternet Explorer 11+, Chrome 18.0 +, Firefox 5.0 +, Safari5.02+

Interface
Alarm Output1, alarm output (alarm response actions configurable)
Alarm ActionSD recording/Relay output/Smart capture/FTP upload
Audio InputBuilt-In Mic
Audio OutputBuilt-In Speaker
Communication Interface1, RS-485 interface (half duplex)
Reset Key1 reset button built in the motherboard

Radar
Working Frequency Range60GHz ~64GHz
Modulation WaveformFMCW
Capture Distance0.3 m-4m

General
Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power SupplyDC 12 V（±20%）：0.5 A, max. 5W PoE (802.3af)：36 V to 57 V, 0.17 A to 0.11 A, max. 6W
Working Temperature/HumidityTemperature: -20°C to 50°C (-4°F to 122°F) Humidity: 95% or less
Protection LevelIP40
Dimensions130mm*102mm*75mm
Weight0.38kg (0.84 lb)
MountCorner Mount

Certificate
EMCEN55032

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

160 × 120

Pixel Pitch

12 μm

Spectral Range

8 μm to 14 μm

NETD

< 50 mK (25°C, F#=1.1)

Focal Length

1.3 mm

Field of View

90.0° (H)x65.2° (V)

Min. Focusing Distance

0.01 m

Aperture

F1.0

Video and Audio

Main Stream

Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

Sub-stream

Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240)

Video Compression

H.264/H.265/MJPEG, H.265/MJPEG encoding support Main Profile, H.264 support Baseline/Main/High Profile

Network

Protocols

IPv4,HTTP,HTTPS,Qos,FTP,SNMP,DDNS,TCP,PPPoE,RTSP,UPnP

Network Storage

MicroSD/SDHC/SDXC card (up to 256 G) local storage

API

ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)

Simultaneous Live View

Up to 20 channels

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Security

User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Client

iVMS-4200/EZVIZ/HIK-CONNCET/HIK-CENTRAL

Web Browser

Internet Explorer 11+, Chrome 18.0 +, Firefox 5.0 +, Safari5.02+

Interface

Alarm Output

1, alarm output (alarm response actions configurable)

Alarm Action

SD recording/Relay output/Smart capture/FTP upload

Audio Input

Built-In Mic

Audio Output

Built-In Speaker

Communication Interface

1, RS-485 interface (half duplex)

Reset Key

1 reset button built in the motherboard

Radar

Working Frequency Range

60GHz ~64GHz

Modulation Waveform

FMCW

Capture Distance

0.3 m-4m

General

Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power Supply

DC 12 V（±20%）：0.5 A, max. 5W PoE (802.3af)：36 V to 57 V, 0.17 A to 0.11 A, max. 6W

Working Temperature/Humidity

Temperature: -20°C to 50°C (-4°F to 122°F) Humidity: 95% or less

Protection Level

IP40

Dimensions

130mm*102mm*75mm

Weight

0.38kg (0.84 lb)

Mount

Corner Mount

Certificate

EMC

EN55032
