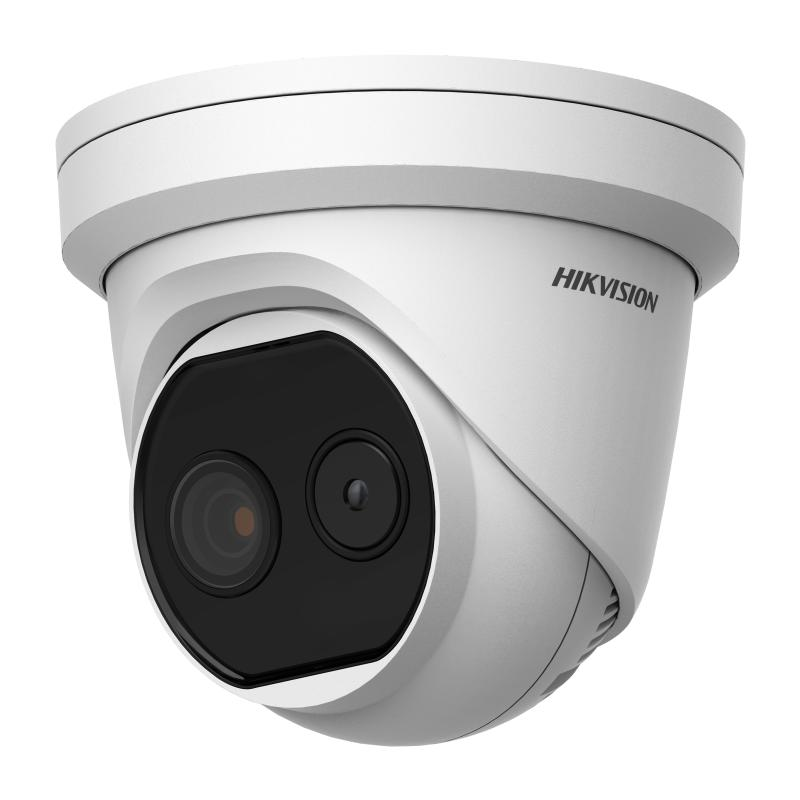

Thermal & Optical Bi-Spectrum Network Turret Camera

High sensitivity thermal module with 160 × 120 resolution
NETD is less than 40 mk (@25° C, F#=1.1)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Powerful perimeter protection functions, based on intelligent algorithm: Line crossing, intrusion, region entrance & exit
Reliable temperature-anomaly alarm
Advanced fire detection algorithm
High quality optical module with 4 MP resolution

View Less

Available models:

DS-2TD1217-6/P

EOL

Specification
Resources
Accessories

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution160 × 120 (the resolution of output image is 320 × 240)
Pixel Interval17 μm
Response Waveband8 μm to 14 μm
NETDLess than 40 mK (@ 25 °C,F#=1.1)
Focal Length6.2 mm
IFOV2.74 mrad
Field of View25.0° × 18.7° (H × V)
Min. Focusing Distance0.6 m
ApertureF1.1
Digital Zoom×2, ×4, ×8

Optical Module
Image Sensor1/2.7" Progressive Scan CMOS
Resolution2688 × 1520
Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
Shutter Speed1s to 1/100,000s
Focal Length8 mm
Field of View39.42° × 22.14°(H × V)
Aperture (Range)F2.3
WDR120 dB

Image Effect
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.

Illuminator
IR DistanceUp to 15 m
IR Intensity and AngleAutomatically adjusted

Smart Function
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy± 8 °C (±14.4 °F)
Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video and Audio
Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical: 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub StreamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Interface
Alarm Input1-ch inputs (0-5 VDC)
Alarm Output1-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

General
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3)
Power Consumption12 VDC ± 20%: 0.5 A, max. 6 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W
Working Temperature/HumidityTemperature: -40 °C to 65 °C (-40 °F to 149 °F) Humidity: 95% or less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
Weight940 g (2.07 lb)

Detection Range Table/Wide Range Coverage
Detection Range for Humans (1.8×0.5m)182 m
Detection Range for Vehicles (4.0×1.4m)559 m
Recognition Range for Humans (1.8×0.5m)46 m
Recognition Range for Vehicles (4.0×1.4m)140 m
Identification Range for Humans (1.8×0.5m)23 m
Identification Range for Vehicles (4.0×1.4m)70 m

Detection Range Table/Smart Function Range
VCA Range for Humans42 m
VCA Range for Vehicles126 m
Temperature Measurement Range for Object (2m×2m)132 m
Temperature Measurement Range for Object (1m×1m)66 m
Fire Detection Range for Object (2m×2m)360 m
Fire Detection Range for Object (1m×1m)180 m

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

160 × 120 (the resolution of output image is 320 × 240)

Pixel Interval

17 μm

Response Waveband

8 μm to 14 μm

NETD

Less than 40 mK (@ 25 °C,F#=1.1)

Focal Length

6.2 mm

IFOV

2.74 mrad

Field of View

25.0° × 18.7° (H × V)

Min. Focusing Distance

0.6 m

Aperture

F1.1

Digital Zoom

×2, ×4, ×8

Optical Module

Image Sensor

1/2.7" Progressive Scan CMOS

Resolution

2688 × 1520

Min. Illumination

Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)

Shutter Speed

1s to 1/100,000s

Focal Length

8 mm

Field of View

39.42° × 22.14°(H × V)

Aperture (Range)

F2.3

WDR

120 dB

Image Effect

Bi-spectrum Image Fusion

Display the details of optical channel on thermal channel

Picture in Picture

Display partial image of thermal channel on the full screen of optical channel

Target Coloration

Yes. Supported in white hot and black hot mode.

Illuminator

IR Distance

Up to 15 m

IR Intensity and Angle

Automatically adjusted

Smart Function

VCA

4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Temperature Measurement

3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).

Temperature Range

-20 °C to 150 °C (-4 °F to 302 °F)

Temperature Accuracy

± 8 °C (±14.4 °F)

Fire Detection

Dynamic fire detection, up to 10 fire points detectable.

Video and Audio

Main Stream

Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical
