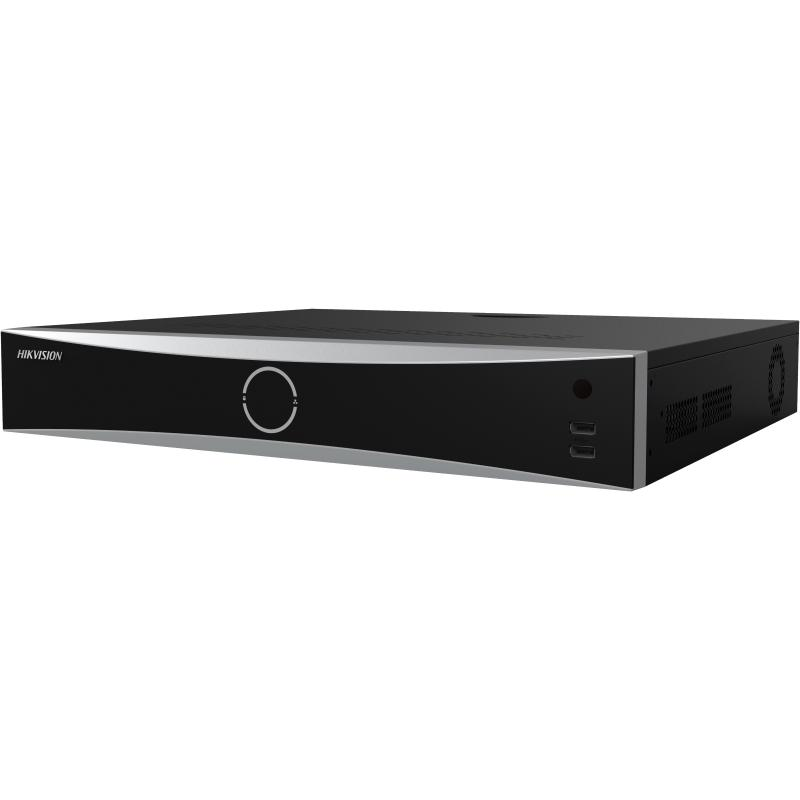

32-ch 1.5U 16 PoE 8K DeepinMind NVR
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32-ch IP cameras can be connected, plug & play with 16 power-over-Ethernet (PoE) interfaces
- Intelligent analytics based on deep learning algorithm
- Up to 24-ch perimeter protection
- Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture
- Up to 12-ch video structuralization
- Up to 8-ch IP speakers can be connected
- Intelligent Analytics
- AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
- AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
- Engine2, each engine can run an intelligent algorithm, engine mode is adjustable
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Face Picture Comparison (Captured from Camera)32-ch (24-ch for each engine);
Comparison speed: 48 pictures per second
- Facial Detection and Analytics Performance16-ch 2 MP (8-ch for each engine), up to 8 MP
- AcuSearch
- By CameraAll channels ,up to 691,200 targets/day
The camera should enable AcuSearch function
- By NVRup to 8-ch,up to 691,200 targets/day
- Perimeter Protection
- By NVRperimeter protection powered by Large Model: 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP
perimeter protection without Large Model: 24-ch 2 MP or 16ch-4MP or 8-ch 8MP
- By Cameraperimeter protection powered by Large Model with AcuSense cameras: All channels
- Video Structuralization
- Structured Analysis12-ch 2 MP (6-ch for each engine), up to 8 MP
- Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
- Face Picture Comparison16-ch;
Comparison speed: 32 pictures per second
- ANPR
- By CameraAll channels
- Plate AttributesPlate number, license plate color, license plate type
- Vehicle AttributesVehicle brand, vehicle color, vehicle type
- Video and Audio
- IP Video Input32-ch
Up to 32 MP resolution
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth400 Mbps
- HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
- HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- Video Output ModeHDMI1/VGA1 simultaneous output, HDMI1/HDMI2 independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
