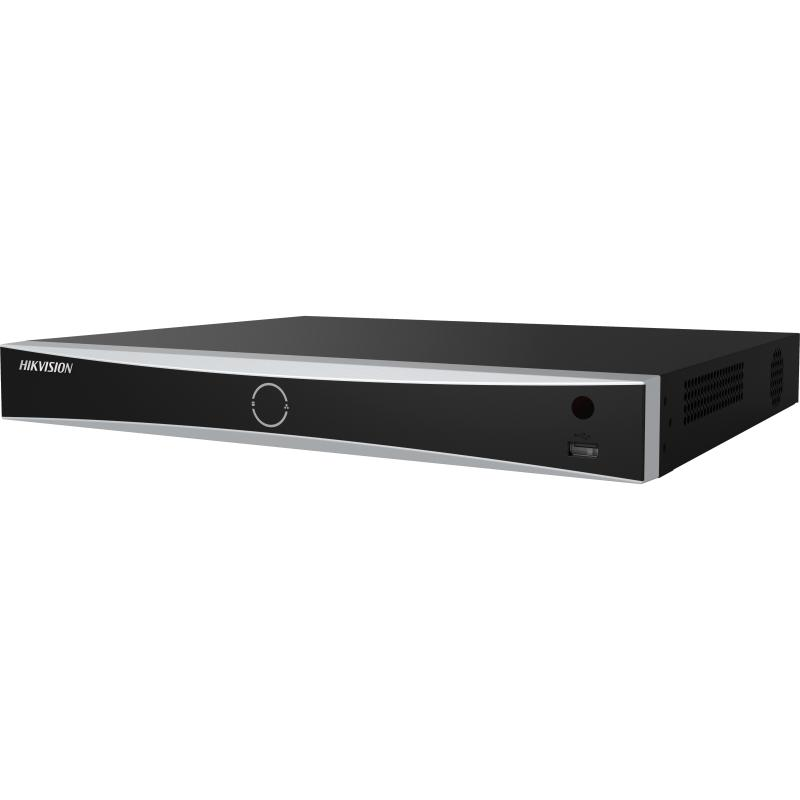

8-ch 1U 8 PoE 8K DeepinMind NVR

Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP decoding capacity
H.265+/H.265/H.264+/H.264 video formats
Up to 8-ch IP cameras can be connected, plug & play with 8 Power-over-Ethernet (PoE) interfaces
Intelligent analytics based on deep learning algorithm
Up to 8-ch perimeter protection
Up to 8-ch facial recognition for video stream, or up to 8-ch facial recognition for face picture
Up to 6-ch video structuralization
Up to 8-ch IP speakers can be connected

View Less

Data Sheet

Available models:

iDS-7608NXI-M2/8P/X

HOT

Specification
Resources
Accessories

Data Sheet

Intelligent Analytics
AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch , motion detection2.0, ANPR, people counting, VCA
Engine1 engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison (Captured from Camera)8-ch; Comparison speed: 24 pictures per second
Facial Detection and Analytics Performance8-ch 2 MP, up to 8 MP

AcuSearch
By CameraAll channels ,up to 345,600 targets/day The camera should enable AcuSearch function
By NVRup to 4-ch,up to 345,600 targets/day

Perimeter Protection
By Cameraperimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structuralization
Structured Analysis6-ch 2 MP, up to 8 MP
Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison8-ch; Comparison speed: 16 pictures per second

ANPR
By CameraAll channels
Plate AttributesVehicle brand, vehicle color, vehicle type
Vehicle AttributesPlate number, license plate color, license plate type

Video and Audio
IP Video Input8-ch Up to 32 MP resolution
Incoming Bandwidth128 Mbps
Outgoing Bandwidth256 Mbps
HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
Video Output ModeHDMI/VGA independent output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
VGA Output1920 × 1080/60Hz

Decoding
Decoding FormatH.265/H.265+/H.264/H.264+
Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)
Synchronous Playback8-ch
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Network
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP

PoE
Interface8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
Power≤ 120 W
StandardIEEE 802.3 af/at

Auxiliary Interface
SATA2 SATA interfaces; 3.5-inch HDD
eSATA1 eSATA interface
CapacityUp to 16 TB capacity for each HDD
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out4/1

General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 50 W (without HDD and PoE off)
Working Temperature-10 to 55°C (14 to 131° F)
Working Humidity10 to 90%
Dimension (W × D × H)385 × 315 × 52 mm ( 15.2"× 12.4" × 2.0")
Weight≤ 3 kg (without HDD, 2.2 lb.)

Certification
Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, video structuralization, AcuSearch

AI by Camera

Facial recognition, perimeter protection, video structuralization, AcuSearch , motion detection2.0, ANPR, people counting, VCA

Engine

1 engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)

Face Picture Comparison (Captured from Camera)

8-ch; Comparison speed: 24 pictures per second

Facial Detection and Analytics Performance

8-ch 2 MP, up to 8 MP

AcuSearch

By Camera

All channels ,up to 345,600 targets/day The camera should enable AcuSearch function

By NVR

up to 4-ch,up to 345,600 targets/day

Perimeter Protection

By Camera

perimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structuralization

Structured Analysis

6-ch 2 MP, up to 8 MP

Face Picture Library

Face Picture Comparison

8-ch; Comparison speed: 16 pictures per second

ANPR

By Camera

All channels

Plate Attributes

Vehicle brand, vehicle color, vehicle type

Vehicle Attributes

Plate number, license plate color, license plate type

Video and Audio

IP Video Input

8-ch Up to 32 MP resolution

Incoming Bandwidth

128 Mbps

Outgoing Bandwidth

256 Mbps

HDMI Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

Video Output Mode

HDMI/VGA independent output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

VGA Output

1920 × 1080/60Hz

Decoding

Decoding Format

H.265/H.265+/H.264/H.264+

Decoding Capability

2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)

Synchronous Playback

8-ch

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network Interface

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Camera Access Protocol

ONVIF(Version 2.5), RTSP

PoE

Interface

8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

Power

≤ 120 W

Standard

IEEE 802.3 af/at

Auxiliary Interface

SATA

2 SATA interfaces; 3.5-inch HDD

eSATA

1 eSATA interface

Capacity

Up to 16 TB capacity for each HDD

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm In/Out

4/1

General

GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 50 W (without HDD and PoE off)

Working Temperature

-10 to 55°C (14 to 131° F)

Working Humidity

10 to 90%

Dimension (W × D × H)

385 × 315 × 52 mm ( 15.2"× 12.4" × 2.0")

Weight

≤ 3 kg (without HDD, 2.2 lb.)

Certification

Obtained Certification

CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

FCC

Part 15 Subpart B, ANSI C63.4-2014

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Intelligent Analytics

AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch , motion detection2.0, ANPR, people counting, VCA
Engine1 engine can run an intelligent algorithm, engine mode is adjustable

Facial Recognition

Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison (Captured from Camera)8-ch; Comparison speed: 24 pictures per second
Facial Detection and Analytics Performance8-ch 2 MP, up to 8 MP

AcuSearch

By CameraAll channels ,up to 345,600 targets/day The camera should enable AcuSearch function
By NVRup to 4-ch,up to 345,600 targets/day

Perimeter Protection

By Cameraperimeter protection powered by Large Model with AcuSense cameras: All channels

Video Structuralization

Structured Analysis6-ch 2 MP, up to 8 MP
Face Picture LibraryUp to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB)
Face Picture Comparison8-ch; Comparison speed: 16 pictures per second

ANPR

By CameraAll channels
Plate AttributesVehicle brand, vehicle color, vehicle type
Vehicle AttributesPlate number, license plate color, license plate type

Video and Audio

IP Video Input8-ch Up to 32 MP resolution
Incoming Bandwidth128 Mbps
Outgoing Bandwidth256 Mbps
HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
Video Output ModeHDMI/VGA independent output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
VGA Output1920 × 1080/60Hz

Decoding

Decoding FormatH.265/H.265+/H.264/H.264+
Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)
Synchronous Playback8-ch
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Network

Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP

PoE

Interface8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
Power≤ 120 W
StandardIEEE 802.3 af/at

Auxiliary Interface

SATA2 SATA interfaces; 3.5-inch HDD
eSATA1 eSATA interface
CapacityUp to 16 TB capacity for each HDD
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out4/1

General

GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 50 W (without HDD and PoE off)
Working Temperature-10 to 55°C (14 to 131° F)
Working Humidity10 to 90%
Dimension (W × D × H)385 × 315 × 52 mm ( 15.2"× 12.4" × 2.0")
Weight≤ 3 kg (without HDD, 2.2 lb.)

Certification

Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
