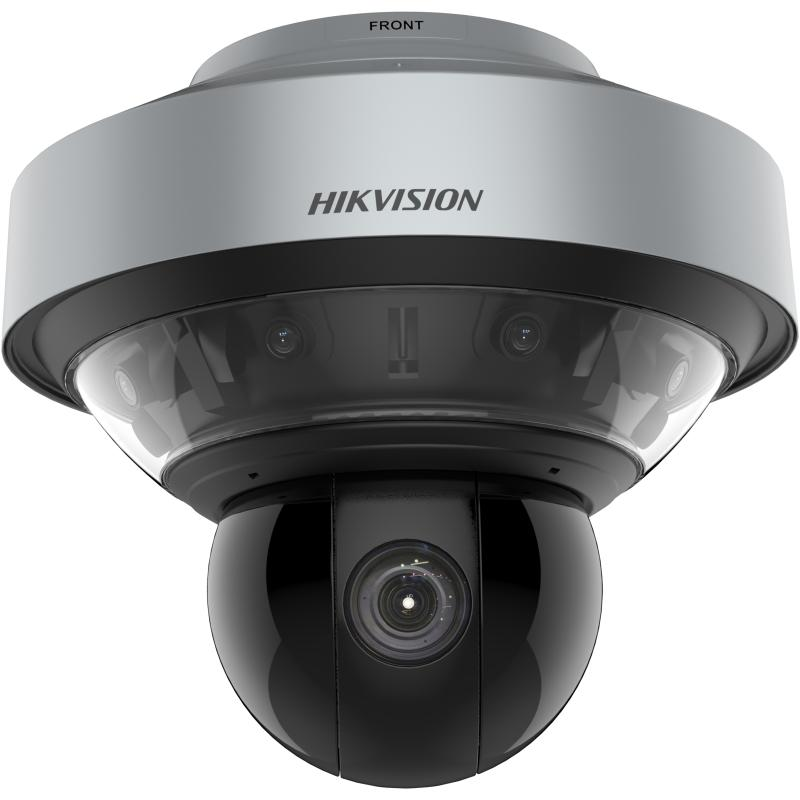

64MP 360° Panoramic & PTZ Camera

High quality imaging with 64 MP resolution, up to 8160*3616 @30 fps for panoramic channels
Excellent low-light performance with DarkFighter technology
45x optical zoom and 16x digital zoom provide close up views over expansive areas
Expansive night view with up to 500 m IR distance
With one click on the panoramic channel, the PTZ channel shows the details automatically
Continous and stable manual tracking, auto-tracking, and panorama tracking
Automatic switch between multiple targets
Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output
Supports AR multi-dimensional arming based on professional platform

View Less

Data Sheet

Available models:

DS-2DP8A845IXG-LF/864(F0)

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Max. Resolution 8160*3616
Min. Illumination [Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.5, AGC ON), B/W: 0.0001 Lux (F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/30000 s
Day & Night IR cut filter
Zoom [PTZ channel] 45x optical, 16x digital
Slow Shutter Yes

Lens
Focal Length [panoramic channel] 2.8 mm; [PTZ channel] 7.1~320 mm
FOV [panoramic channel] Horizontal field of view: 180° Vertical field of view: 85° [PTZ channel] Horizontal field of view: 56.1° to 2.0° (Wide-Tele) Vertical field of view: 33.4° to 1.1° (Wide-Tele) Diagonal field of view: 62.9° to 2.3° (Wide-Tele)
Focus Auto, semi-auto, manual, rapid focus
Aperture [panoramic channel] F1.0, [PTZ channel] F1.5
Zoom Speed [panoramic channel] no, [PTZ channel] approx. 7.8 s

Illuminator
Supplement Light Type Laser
Supplement Light Range Up to 500 m
Smart Supplement Light Yes

PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed Pan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s
Tilt Speed Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Proportional Pan [Panoramic channel]: no; [PTZ channel]: yes
Presets 300
Preset Freezing Yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off Memory Yes

Video
Main Stream [Panoramic channel]: 50Hz: 25fps (32M：8160*3616×2,5520*2400×2，8M：4096*1800×2,3840*1680×2,2720*1192×2); 60Hz: 30fps (32M：8160*3616×2,5520*2400×2，8M：4096*1800×2,3840*1680×2,2720*1192×2) [PTZ channel]: 50Hz:25fps (3840×2160,2560×1440,1920×1080,1280×960,1280×720) 60Hz: 24fps(3840×2160,2560×1440,1920×1080,1280×960,1280×720)
Sub-Stream [Panoramic channel]: 50Hz: 25fps (32M：1560*656×2,704*320×2，8M：704*320×2,512*232×2) 60Hz: 30fps (32M:1560*656×2,704*320×2，8M：704*320×2,512*232×2) [PTZ channel]: 50Hz:25fps(704×576,640×480,352×288); 60Hz:24fps(704×480,640×480,352×240)
Third Stream [PTZ channel]: 50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288) 60Hz: 24fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG

Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Sampling Rate PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Network
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Security Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Network Storage NAS (NFS, SMB/CIFS), ANR
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE10-11, Chrome 57+, Firefox 52+, Safari 12+

Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, night, auto, scheduled-switch
Wide Dynamic Range (WDR) [Panoramic channel] digital WDR, [PTZ channel] 120 dB
SNR ≥ 55 dB
Defog [Panoramic channel]: no; [PTZ channel]: optical defog
Image Stabilization OIS，EIS
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask Programmable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes

Interface
Ethernet Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm 7 alarm inputs, 2 alarm outputs
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Yes
Fiber Optical 1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Event
Smart Event Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection，face capture
Linkage memory card video recording,alarm output,sending email,notify surveillance center, upload to FTP,NAS video recording,audible warning
Smart Tracking Manual tracking,auto-tracking

General
Power 36 VDC
Dimension Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")
Weight Approx. 18 kg (39.68 lb.)
Material ADC12
Operating Condition Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
Wiper No
Demist Yes
Power Consumption and Current max. 135 W, including max. 12 W for IR

Approval
Safety UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017);
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
