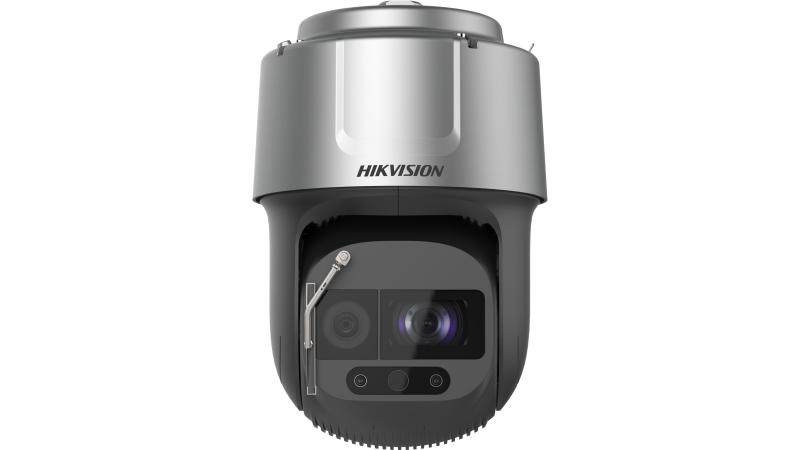

9C Series 8 MP 48X DarkFighter Laser Network Speed Dome

1/1.2" progressive scan CMOS, up to 3840 × 2160 resolution
Full-color image output
Min. illumination: Color: 0.0005 Lux @(F1.6, AGC ON) B/W: 0.0001 Lux @(F1.6, AGC ON);0 Lux with light
48× optical zoom, 16× digital zoom
140 dB WDR, 3D DNR, HLC, BLC, EIS, Optical Defog
Support H.265+/H.265 video compression
Support rapid focus
Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
Up to 800 m laser distance. Smart supplement light
Rain-sensing auto wiper
Smart pan-tilt correction

View Less

Available models:

DS-2DF9C848LXG-LW

Camera
Image Sensor1/1.2" progressive scan CMOS
Max. Resolution3840×2160
Min. IlluminationColor: 0.0005 Lux @ (F1.6, AGC ON),B/W: 0.0001 Lux @ (F1.6, AGC ON),0 Lux with light
Shutter Speed1/1 to 1/30,000s
Zoom48x optical, 16x digital
Slow ShutterYes

Lens
Focal Length6.6 mm to 316.8 mm
FOVHorizontal field of view: 61.0° to 2.1°(wide-tele) Vertical field of view: 35.9° to 1.2°(wide-tele) Diagonal field of view: 68.5° to 2.4° (wide-tele)
FocusAuto, semi-auto, manual, rapid focus
ApertureMax. F1.6
Zoom SpeedApprox. 7.4s

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-25° to 90° (auto flip)
Pan SpeedPan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional PanYes
Presets300
Preset FreezingYes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D PositioningYes
PTZ Status DisplayYes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off MemoryYes

Video
Main Stream50Hz: 25fps (3840 × 2160，2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 24fps (3840 × 2160，2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 24fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 24fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16384 Kbps
H.264 TypeBaseline profile, main profile, high profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

DS-2DF9C848LXG-LW
