EOL

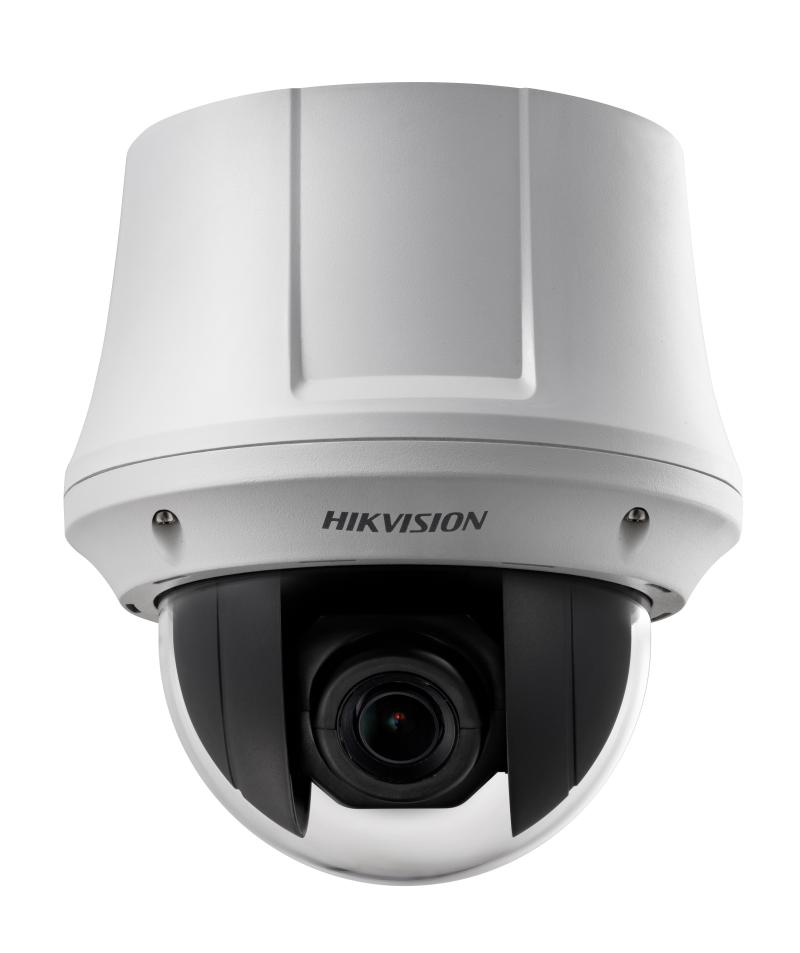

4-inch 4 MP 25X Powered by DarkFighter Network Speed Dome

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting thanks to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 25x optical zoom allows for closer viewing of subjects in expansive areas

View Less
View more
Sales Inquiry

Available models:

DS-2DE4425W-DE3(S6)
DS-2DE4425W-DE3(S6)
EOL

Specification

  • Camera
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON)
  • Shutter Speed1 s to 1/30,000 s
  • Slow ShutterYes
  • Day & NightIR cut filter
  • Zoom25x optical, 16x digital
  • Max. Resolution2560 × 1440
  • Lens
  • FocusAuto, semi-auto, manual
  • Focal Length4.8 mm to 120 mm
  • Zoom SpeedApprox. 3.6 s
  • FOVHorizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
  • ApertureMax. F1.6
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)0° to 90°
  • Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 160°/s
  • Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 120°/s
  • Proportional PanYes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemoryYes
  • Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D PositioningYes
  • PTZ Status DisplayYes
  • Preset FreezingYes
  • Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
  • Video
  • Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
  • Video Bit Rate32 kbps to 16384 kbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)8 fixed regions for each stream
  • Audio
  • Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
  • Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
  • Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Environment Noise FilteringYes
  • Network
  • Network StorageNAS (NFS, SMB/CIFS)
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • APIOpen Network Video Interface, ISAPI, SDK, ISUP
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users; 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
