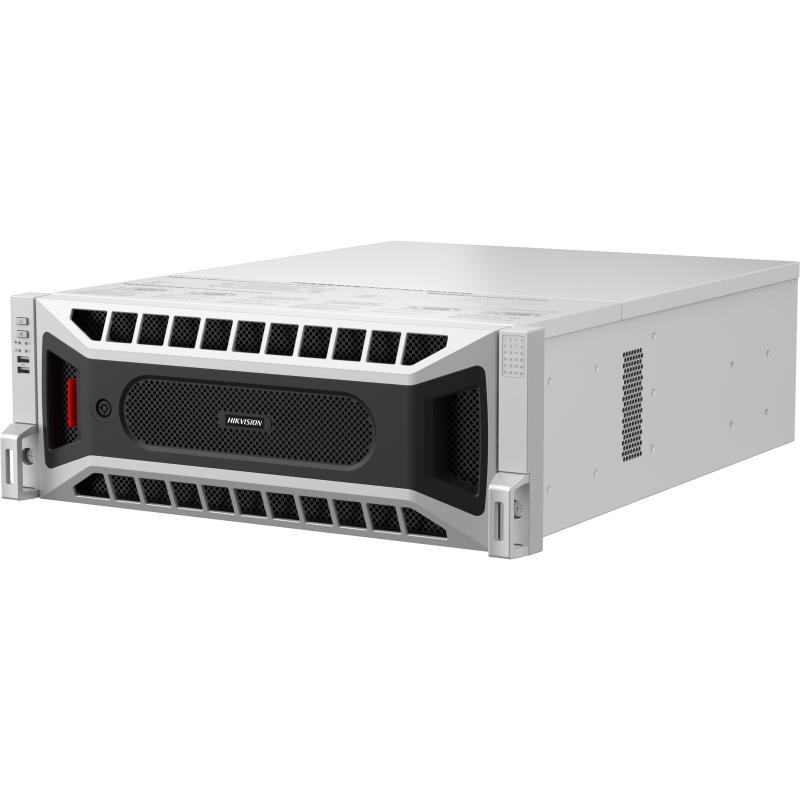

S Series NVR with AcuSense

  • Up to 32×1080p decoding capacity
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 256-ch IP cameras can be connected
  • Intelligent analytics supports facial recognition, perimeter protection, video structuralization, AcuSearch
  • Up to 8-ch IP speakers can be connected
  • Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
  • HDMI video output at up to 8K resolution
  • Redundant power supply
View Less
View more

Available models:

DS-96256NXI-S24R

Specification

  • Intelligent Analytics
  • AI by NVRFacial recognition, perimeter protection, video structuralization
  • AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
  • Facial Recognition
  • Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
  • Face Picture LibraryUp to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤ 4 MB, total capacity ≤ 10 GB)
  • Face Picture Comparison (Captured from Camera)16-ch Comparison speed: 24 pictures per second
  • Facial Detection and Analytics PerformanceSimultaneous mode: 8-ch, up to 2 MP independent mode: 4-ch, up to 2 MP.
  • AcuSearch
  • By NVRUp to 32-ch
  • By CameraAll channels , up to 345,600 targets per day Note: The camera should enable AcuSearch function.
  • Perimeter Protection
  • By NVRSimultaneous mode: 8-ch, up to 2 MP independent mode: 4-ch, up to 2 MP.
  • By CameraAll channels
  • Video Structuralization
  • Structured AnalysisSimultaneous mode: 8-ch, up to 2 MP independent mode: 4-ch, up to 2 MP.
  • Face Picture LibraryUp to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤ 4 MB, total capacity ≤ 10 GB)
  • Face Picture Comparison16-ch; Comparison speed: 24 pictures per second
  • Video and Audio
  • IP Video Input256-ch Up to 32 MP resolution
  • Incoming Bandwidth1280Mbps
  • Outgoing Bandwidth1024Mbps
  • Incoming Bandwidth (RAID Mode)640Mbps
  • Outgoing Bandwidth (RAID mode)512Mbps
  • HDMI 1 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
  • HDMI 2 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
  • HDMI 3 Output8K (7680 × 4320)/30 Hz, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
  • HDMI 4 Output1080P (1920 × 1080)/60 Hz
  • VGA 1 Output1080P (1920 × 1080)/60 Hz
  • VGA 2 Output1080P (1920 × 1080)/60 Hz
  • Video Output ModeMode 1 (default output mode): simultaneous output with 1080p resolution; Mode 2 (simultaneous output): HDMI 1, VGA 1, HDMI 2, VGA 2, HDMI 3, and HDMI 4 provide simultaneous output, the maximum resolution for VGA 1/VGA 2/HDMI 4 is 1080p, the maximum resolution for HDMI 1/HDMI 2/HDMI 3 is 4K; Mode 3 (independent output and 8K HDMI 3 output resolution): HDMI 1/VGA 1/HDMI 2/VGA 2, HDMI 3, and HDMI 4 provide independent output respectively. The maximum resolution is 8K + 4K + 1080p; Mode 4 (independent output and HDMI 3 output resolution ≤ 4K): HDMI 1/VGA 1, HDMI 2/VGA 2, HDMI 3, and HDMI 4 provide independent output respectively. The maximum resolution is 8K × 4K + 1080p.
  • HDMI Input1-ch
  • HDMI Loopback1-ch (matching the HDMI input)
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding FormatH.265/H.265+/H.264/H.264+
  • Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
  • Synchronous Playback16-ch
  • Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
  • Network
  • Remote Connection512
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (version 2.2), OTAP
  • APIONVIF (profile S/G); SDK; ISAPI
  • Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
  • Network Interface4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface
  • Camera Access ProtocolONVIF (version 2.5), RTSP
  • RAID
  • RAID TypeRAID 0, RAID 1, RAID 5, RAID 6, RAID 10
  • Auxiliary Interface
  • SATA
