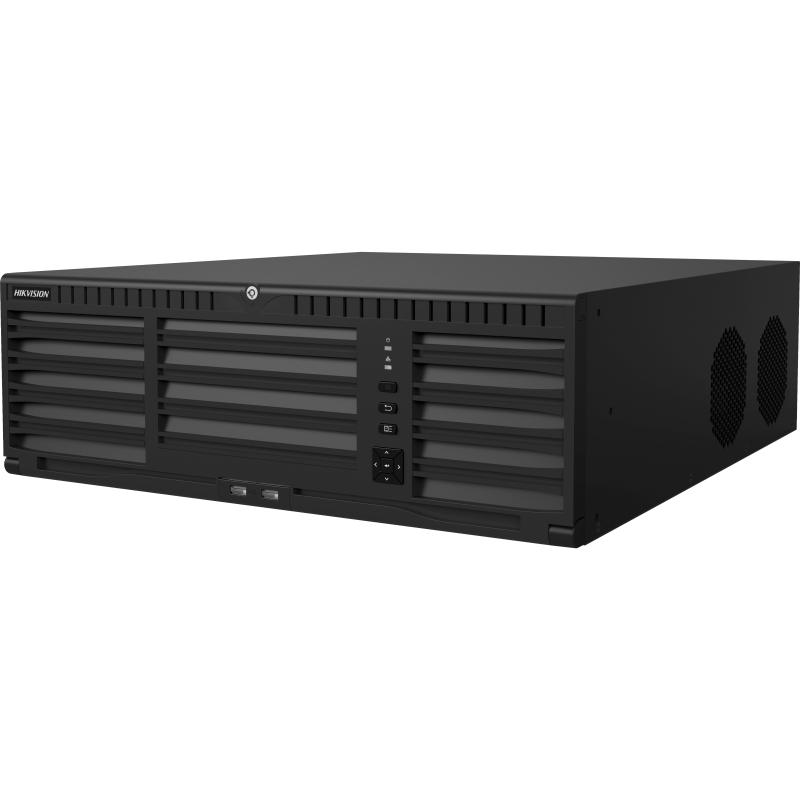

DS-96128NI-I16

128-ch 3U 4K Super NVR

Up to 128 channel IP cameras can be connected
Up to 576 Mbps high incoming bandwidth ensures IP cameras can be connected
2 HDMI (different source) and 1 VGA interfaces16 HDD can be used for continuous video recording
16 HDD can be used for continuous video recording
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

View Less

Available models:

DS-96128NI-I16

Video and Audio
IP Video Input128-ch
Incoming Bandwidth (RAID Mode)576 Mbps
Outgoing Bandwidth512 Mbps
Incoming Bandwidth576 Mbps
Outgoing Bandwidth (RAID mode)512 Mbps
TLS outgoing bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)
HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
VGA Output1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
LCD OutputOptional: One 7 inch LCD
Audio Output1-ch. RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding
Decoding FormatH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
Synchronous playbackUp to 16 channels
Decoding Capability1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

Network
Network ProtocolIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
Network Interface4, RJ45 10M/100M/1000M self-adaptive Ethernet interface

PoE
Interface16 SATA interfaces supporting hot-plug

RAID
RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10

Auxiliary Interface
SATA 2 × mini SAS interface (optional)
eSATA1 × eSATA interface
CapacityUp to 10 TB for each HDD
Serial InterfaceRS-232; RS-485; Keyboard
USB InterfaceFront Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
Alarm In/Out16/8
Extension BoardOne extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.

General
Power Supply100 to 240 VAC, 50 to 60Hz, 5 A
Consumption≤ 140W
Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
Working Humidity10% to 90%
Dimension (W × D × H)442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch)
Weight≤ 16 kg (35.3 lb)

Specification

Video and Audio

IP Video Input

128-ch

Incoming Bandwidth (RAID Mode)

576 Mbps

Outgoing Bandwidth

512 Mbps

Incoming Bandwidth

576 Mbps

Outgoing Bandwidth (RAID mode)

512 Mbps

TLS outgoing bandwidth

128 Mbps, or 64 Mbps (when RAID is enabled)

HDMI Output

Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz

VGA Output

1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz

LCD Output

Optional: One 7 inch LCD

Audio Output

1-ch. RCA (2.0 Vp-p, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

Decoding Format

H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)

Recording Resolution

32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.

Synchronous playback

Up to 16 channels

Decoding Capability

1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

Network

Network Protocol

IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS

Camera Access Protocol

HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO

Network Interface

4, RJ45 10M/100M/1000M self-adaptive Ethernet interface

PoE

Interface

16 SATA interfaces supporting hot-plug

RAID

RAID Type

RAID0, RAID1, RAID5, RAID 6, and RAID10

Auxiliary Interface

SATA

2 × mini SAS interface (optional)

eSATA

1 × eSATA interface

Capacity

Up to 10 TB for each HDD

Serial Interface

RS-232; RS-485; Keyboard

USB Interface

Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0

Alarm In/Out

16/8

Extension Board

One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.

General

Power Supply

100 to 240 VAC, 50 to 60Hz, 5 A

Consumption

≤ 140W

Working Temperature

0 °C to + 50 °C (32 °F to 122 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch)

Weight

≤ 16 kg (35.3 lb)
